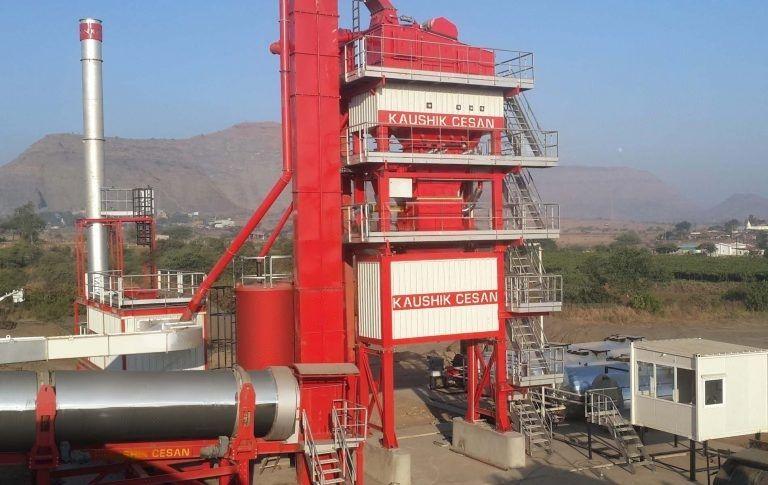

Kaushik Cesan KC 400 Asphalt Batch Mix Plant
Kaushik Engineering Works
Gujarat
The Kaushik Cesan KC 400 Asphalt Batch Mix Plant is designed to meet the demands of large-scale asphalt production with precision and efficiency. Featuring a 5000 kg mixer capacity and advanced Kaushik Cesan automation, it ensures consistent, high-quality asphalt mixes for diverse applications. The plant is equipped with cold aggregate silos ranging from 8 to 20 m³ and a 12-meter dryer, providing excellent material handling and heating efficiency. Its 30-ton hot aggregate silo and 20 lt/sn bitumen feeding system cater to high-demand projects like highways, airports, and urban road networks. The plant also includes a 60 m³ bitumen tank and electrical heating options for operational flexibility. Ideal for massive infrastructure projects, the KC 400 delivers reliability and performance, making it a trusted choice for modern construction needs.
Kaushik Cesan KC 400 Asphalt Batch Mix Plant
Kaushik Engineering Works
Gujarat
The Kaushik Cesan KC 400 Asphalt Batch Mix Plant is designed to meet the demands of large-scale asphalt production with precision and efficiency. Featuring a 5000 kg mixer capacity and advanced Kaushik Cesan automation, it ensures consistent, high-quality asphalt mixes for diverse applications. The plant is equipped with cold aggregate silos ranging from 8 to 20 m³ and a 12-meter dryer, providing excellent material handling and heating efficiency. Its 30-ton hot aggregate silo and 20 lt/sn bitumen feeding system cater to high-demand projects like highways, airports, and urban road networks. The plant also includes a 60 m³ bitumen tank and electrical heating options for operational flexibility. Ideal for massive infrastructure projects, the KC 400 delivers reliability and performance, making it a trusted choice for modern construction needs.
Product Description
The Kaushik Cesan KC 400 Asphalt Batch Mix Plant is designed to meet the demands of large-scale asph...
Kaushik Cesan KC 400 Asphalt Batch Mix Plant Comparison with Similar Asphalt Batching Plant
Kaushik Cesan KC 400 Asphalt Batch Mix Plant
Plant Type
KC400
Max Production Capacity
400TPH
Batch Size
5000kg
Cycle Time
-
Dryer Drum Diameter
2.7m
Dryer Drum Length
12m
Burner Capacity
-
Fuel Type
-
Hot Mix Storage Silo Capacity
-
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
8 / 10 / 12 / 15 / 20m³
Collecting Belt Width
850mm
Inclined Belt Width
850mm
Hot Aggregate Elevator Capacity
-
Screening Method
-
No. Of Decks
4,5,6
Screening Capacity
-
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
-
Aggregate Weighing Capacity
5000kg
Filler Weighing Capacity
500kg
Bitumen Weighing Capacity
-
Mixer Type
-
Mixer Capacity
5000kg
Mixing Time
-
Primary Pollution Control
-
Secondary Pollution Control
-
Filter Surface Area
-
Emission Level
-
Bitumen Tank Capacity
20/25/30/40/50/60m³
Bitumen Pump Type
-
Thermal Oil System Capacity
1000kcal/h
Automation System
Kaushik Cesan
Remote Monitoring
-
Sany SABP120 Asphalt Batching Plant
Plant Type
SABP120
Max Production Capacity
120TPH
Batch Size
1700kg
Cycle Time
-
Dryer Drum Diameter
1.8m
Dryer Drum Length
7m
Burner Capacity
10MW
Fuel Type
Diesel
Hot Mix Storage Silo Capacity
-
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
8m³
Collecting Belt Width
500mm
Inclined Belt Width
500mm
Hot Aggregate Elevator Capacity
-
Screening Method
Vibrating Screen
No. Of Decks
4
Screening Capacity
-
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5
Aggregate Weighing Capacity
-
Filler Weighing Capacity
-
Bitumen Weighing Capacity
-
Mixer Type
-
Mixer Capacity
1700kg
Mixing Time
-
Primary Pollution Control
-
Secondary Pollution Control
Dedust system
Filter Surface Area
360m²
Emission Level
-
Bitumen Tank Capacity
30m³
Bitumen Pump Type
Asphalt Metering Pump
Thermal Oil System Capacity
500000kcal/h
Automation System
PLC supported by 1 CPU or more
Remote Monitoring
Y
Nilang ABP 200 Asphalt Batch Mix Plant
Plant Type
ABP 200
Max Production Capacity
200TPH
Batch Size
2500kg
Cycle Time
45seconds
Dryer Drum Diameter
2.1m
Dryer Drum Length
8m
Burner Capacity
14MW
Fuel Type
Diesel/LDO/Furnace Oil
Hot Mix Storage Silo Capacity
40 / 80T
Cold Feed Bins (no. Of Bins)
4 / 5
Cold Feed Bin Capacity
-
Collecting Belt Width
-
Inclined Belt Width
-
Hot Aggregate Elevator Capacity
220TPH
Screening Method
Inclined Liner Vibration
No. Of Decks
5
Screening Capacity
260TPH
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5 + 1
Aggregate Weighing Capacity
3200kg
Filler Weighing Capacity
500kg
Bitumen Weighing Capacity
350kg
Mixer Type
Twin Shaft Hot Oil Jacketed
Mixer Capacity
2500kg
Mixing Time
-
Primary Pollution Control
Reverse Air Flow/Cyclonic Separator
Secondary Pollution Control
Bag House Filter Reverse Air Flow
Filter Surface Area
535m²
Emission Level
-
Bitumen Tank Capacity
20 / 30m³
Bitumen Pump Type
-
Thermal Oil System Capacity
600000 / 800000kcal/h
Automation System
Siemens PLC (SCADA optional)
Remote Monitoring
Available
Nilang ABP 120 Combat Asphalt Batch Mix Plant
Plant Type
Stationary
Max Production Capacity
140TPH
Batch Size
1500kg
Cycle Time
45seconds
Dryer Drum Diameter
1.8m
Dryer Drum Length
7.5m
Burner Capacity
12MW
Fuel Type
Diesel / LDO / Furnace Oil
Hot Mix Storage Silo Capacity
15 / 50 / 100T
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
30m³
Collecting Belt Width
-
Inclined Belt Width
-
Hot Aggregate Elevator Capacity
140TPH
Screening Method
Vibratory (inferred)
No. Of Decks
2
Screening Capacity
140TPH
Hot Aggregate Bin Capacity
T
No. Of Hot Aggregate Bins
4
Aggregate Weighing Capacity
2000kg
Filler Weighing Capacity
300kg
Bitumen Weighing Capacity
225kg
Mixer Type
Twin Shaft Hot Oil Jacketed
Mixer Capacity
1500kg
Mixing Time
seconds
Primary Pollution Control
Reverse Air Flow Centrifugal Cyclonic Pre Separator
Secondary Pollution Control
Bag House Filter (Reverse Air Flow)
Filter Surface Area
300m²
Emission Level
-
Bitumen Tank Capacity
30m³
Bitumen Pump Type
-
Thermal Oil System Capacity
500000kcal/h
Automation System
Siemens PLC (SCADA on Request)
Remote Monitoring
-
Kaushik Cesan KC 200 Asphalt Batch Mix Plant
Plant Type
KC-200
Max Production Capacity
200TPH
Batch Size
2500kg
Cycle Time
-
Dryer Drum Diameter
2.2m
Dryer Drum Length
9m
Burner Capacity
-
Fuel Type
Liquid / Natural Gas
Hot Mix Storage Silo Capacity
-
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
8 / 10 / 12 / 15 / 20m³
Collecting Belt Width
650mm
Inclined Belt Width
650mm
Hot Aggregate Elevator Capacity
-
Screening Method
Vibrating Screen
No. Of Decks
4 / 5 / 6
Screening Capacity
-
Hot Aggregate Bin Capacity
25T
No. Of Hot Aggregate Bins
4 or more
Aggregate Weighing Capacity
2500kg
Filler Weighing Capacity
250kg
Bitumen Weighing Capacity
-
Mixer Type
Twin Shaft
Mixer Capacity
2500kg
Mixing Time
25 - 30seconds
Primary Pollution Control
-
Secondary Pollution Control
Bag House Filter
Filter Surface Area
-
Emission Level
< 20mg/m³
Bitumen Tank Capacity
20 / 25 / 30 / 40 / 50 / 60m³
Bitumen Pump Type
Jacketed
Thermal Oil System Capacity
750000kcal/h
Automation System
SCADA
Remote Monitoring
Available
