KOMATSU PC500LC-10R Hydraulic Excavator
Komatsu India Private Limited
Tamil Nadu

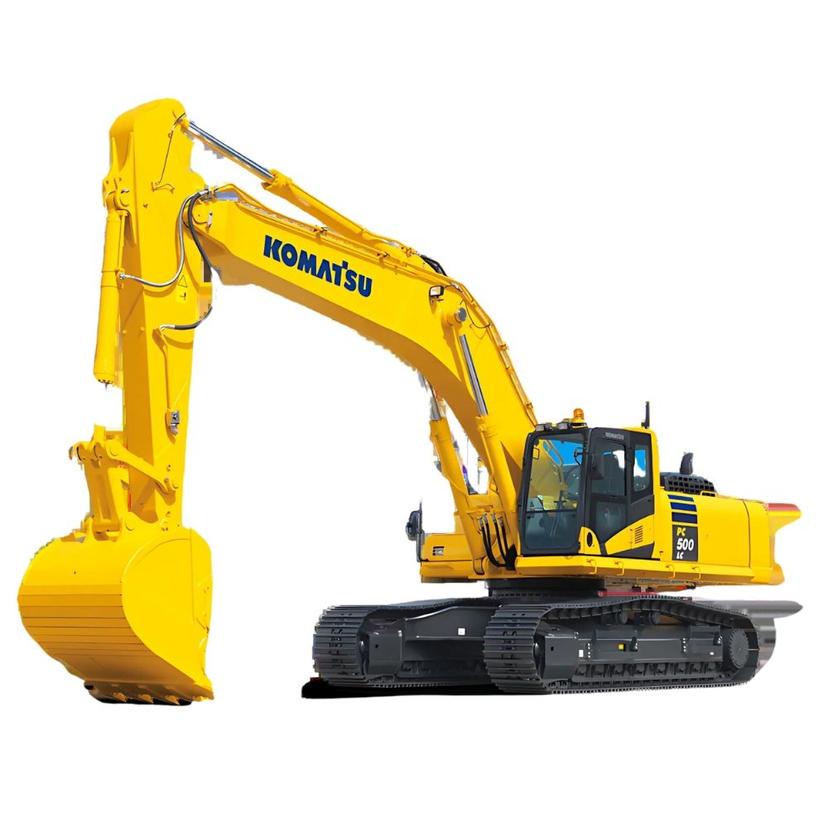

The KOMATSU PC500LC-10R Hydraulic Excavator is a versatile and powerful machine designed for heavy-duty applications. With a 362HP engine and an operating weight of 51.3 tons, it excels in various industries, including construction, mining, and land development. Equipped with a 6.7m boom and a 3.5-3.7 m² bucket, this excavator offers outstanding digging capabilities for large-scale projects. Its 9 working modes and 9.1 rpm swing speed enhance productivity in tasks such as excavation, demolition, and material handling. The KOMTRAXTA system, along with an AC cabin and self-diagnostic LCD monitor with EMMS, ensures smooth operations and operator comfort. Whether clearing land, building roads, or working in challenging environments, the KOMATSU PC500 is built to deliver exceptional performance and reliability for a wide range of demanding applications.
KOMATSU PC500LC-10R Hydraulic Excavator
Komatsu India Private Limited
Tamil Nadu
The KOMATSU PC500LC-10R Hydraulic Excavator is a versatile and powerful machine designed for heavy-duty applications. With a 362HP engine and an operating weight of 51.3 tons, it excels in various industries, including construction, mining, and land development. Equipped with a 6.7m boom and a 3.5-3.7 m² bucket, this excavator offers outstanding digging capabilities for large-scale projects. Its 9 working modes and 9.1 rpm swing speed enhance productivity in tasks such as excavation, demolition, and material handling. The KOMTRAXTA system, along with an AC cabin and self-diagnostic LCD monitor with EMMS, ensures smooth operations and operator comfort. Whether clearing land, building roads, or working in challenging environments, the KOMATSU PC500 is built to deliver exceptional performance and reliability for a wide range of demanding applications.
Product Description
The KOMATSU PC500LC-10R Hydraulic Excavator is a versatile and powerful machine designed for heavy-d...
KOMATSU PC500LC-10R Hydraulic Excavator Comparison with Similar Crawler Excavator
KOMATSU PC500LC-10R Hydraulic Excavator
Engine Brand
Komatsu
Engine Model
SAA6D125E-5
Engine Power
360HP
Max Torque
-
Rated Speed
1900rpm
Displacement
11.04L
Fuel Tank Capacity
640L
Hydraulic Flow Rate
690L/min
Hydraulic Pressure (implement Circuit)
380 kgf/cm²
Hydraulic Pressure (swing Circuit)
285kgf/cm²
Hydraulic Pressure (travel Circuit)
380kgf/cm²
Hydraulic Pressure (pilot Circuit)
33kgf/cm²
Ground Pressure (600mm Track)
0.89kgf/cm²
Operating Weight
50.06Ton
Max Digging Depth
7.15m
Max Reach At Ground
11.135m
Max Dumping Height
6.75m
Bucket Capacity
3.7m³
Bucket Breakout Force
31000kgf
Arm Crowd Force
24900kgf
Overall Length
11.945m
Overall Width
3.58m
Overall Height
3.98m
Ground Clearance
1385mm
Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
38Ton
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-
XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
17.5Ton
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm
Liugong 965E HD Crawler Excavator
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
62.6Ton
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Arm Crowd Force
30591.5kgf
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm
Sany SY210 SPARC + Crawler Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Ground Pressure (600mm Track)
-
Operating Weight
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
