Komatsu WA500-6R Wheel Loader

The Komatsu WA500-6R Wheel Loader is a high-performance machine designed to tackle the toughest tasks with ease. With a robust 266 kW (357 HP) engine operating at 1900 rpm, it delivers powerful performance for demanding applications. Weighing between 33,150 and 34,470 kg, and featuring a bucket capacity ranging from 4.3 to 5.6 m³, it excels in moving and loading large quantities of materials. Whether used in mining operations, construction projects, or material handling in industrial sites, the WA500-6R offers exceptional versatility and productivity. It is particularly effective in stockpiling, transporting bulk materials like sand, gravel, and aggregates, as well as waste management and recycling. Engineered for durability and ease of operation, the WA500-6R ensures maximum efficiency and reliability in various heavy-duty tasks, making it an essential asset for any operation.

Product Brochure

Product Description

The Komatsu WA500-6R Wheel Loader is a high-performance machine designed to tackle the toughest task...

View the full brochure

Komatsu WA500-6R Wheel Loader Comparison with Similar Wheel Loader

Komatsu WA500-6R Wheel Loader

Komatsu WA500-6R Wheel Loader

Get Latest Price
Rating
4.4

Engine Brand

Komatsu

Engine Model

SAA6D140E-5

Engine Power

266kW

Max Torque

-

Rated Speed

1900rpm

Displacement

15.24L

Fuel Tank Capacity

473L

Hydraulic Oil Capacity

337L

Transmission Type

Full-powershift, planetary type

Number Of Gears (f/r)

4/4

Max Travel Speed (f)

34.9km/h

Max Travel Speed (r)

36.5km/h

Service Brake Type

Hydraulically actuated, wet disc brakes

Parking Brake Type

Wet disc brake

Steering Type

Articulated type, full-hydraulic power steering

Steering Angle

40°

Oscillation Angle

24°

Turning Radius

6.43m

Operating Weight

33.36kg

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

-

Hydraulic Flow Rate

320L/min

Hydraulic Pressure

34.3Bar

Overall Length

9.815m

Overall Width

3.190m

Overall Height

3.785m

Ground Clearance

450mm

Max Dump Height

3.295m

Max Load Over Height

4.755m

Max Reach At Full Height

1.500m

Loader Bucket Capacity

5.6

Loader Arm Breakout Force

245kN

Front Axle Oscillation

24°

Battery Voltage

-

Standard Tires (front/rear)

29.5-25

Emission Standard

-

Max Travel Speed

-

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

-

Max Hinge Pin Height

-

Reach At Ground Level

-

Bucket Capacity

-

Dump Angle

-

Lift Path

-

Wheelbase

-

Currently Viewing

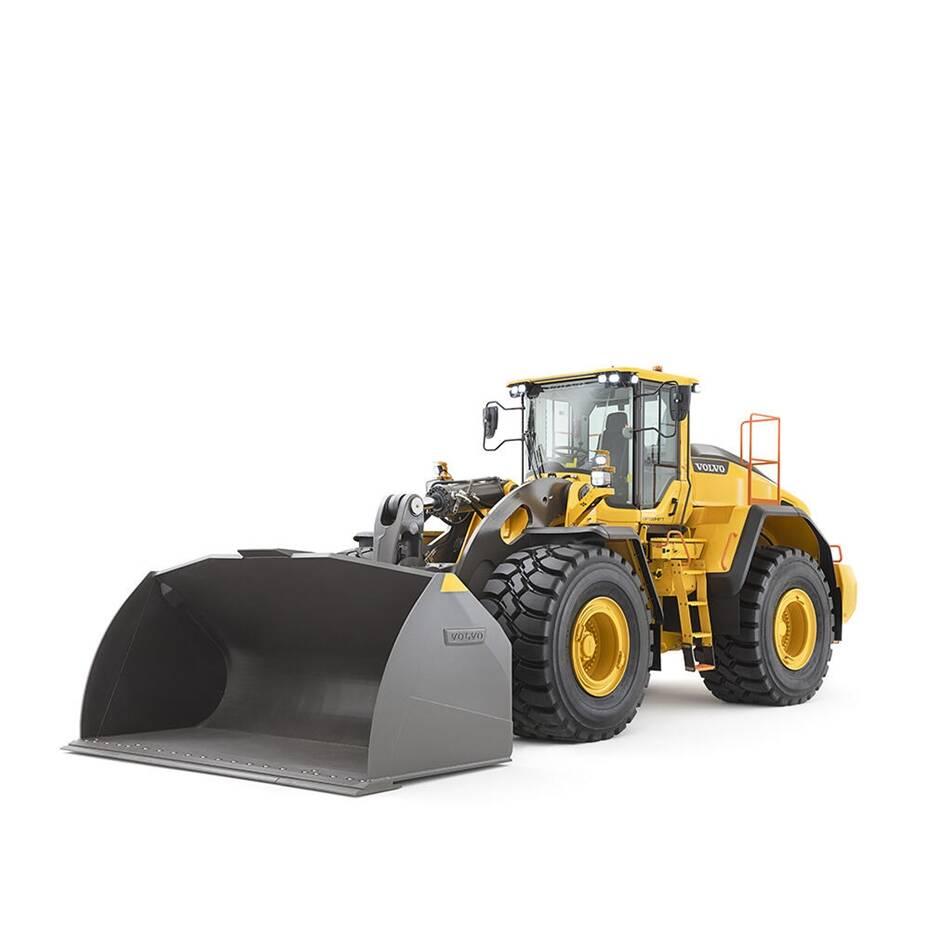

Volvo L350H Wheel Loader

Volvo L350H Wheel Loader

Get Latest Price
Rating
4.4

Engine Brand

Volvo

Engine Model

D16E

Engine Power

397kW

Max Torque

2550Nm

Rated Speed

1700–1800rpm

Displacement

16.1L

Fuel Tank Capacity

540L

Hydraulic Oil Capacity

365L

Transmission Type

Volvo HTL 500, APS, ECM controlled

Number Of Gears (f/r)

4/4

Max Travel Speed (f)

37.7km/h

Max Travel Speed (r)

37.7km/h

Service Brake Type

Dual circuit, oil-cooled, wet disc brakes

Parking Brake Type

Dry, spring-applied, electro-hydraulically released

Steering Type

Load-sensing hydrostatic articulated steering

Steering Angle

±37°

Oscillation Angle

±12°

Turning Radius

-

Operating Weight

-

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

-

Hydraulic Flow Rate

827L/min

Hydraulic Pressure

29Bar

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

550mm

Max Dump Height

-

Max Load Over Height

-

Max Reach At Full Height

-

Loader Bucket Capacity

-

Loader Arm Breakout Force

-

Front Axle Oscillation

±12°

Battery Voltage

24V

Standard Tires (front/rear)

35/65 R33 L4

Emission Standard

-

Max Travel Speed

-

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

-

Max Hinge Pin Height

-

Reach At Ground Level

-

Bucket Capacity

-

Dump Angle

-

Lift Path

-

Wheelbase

-

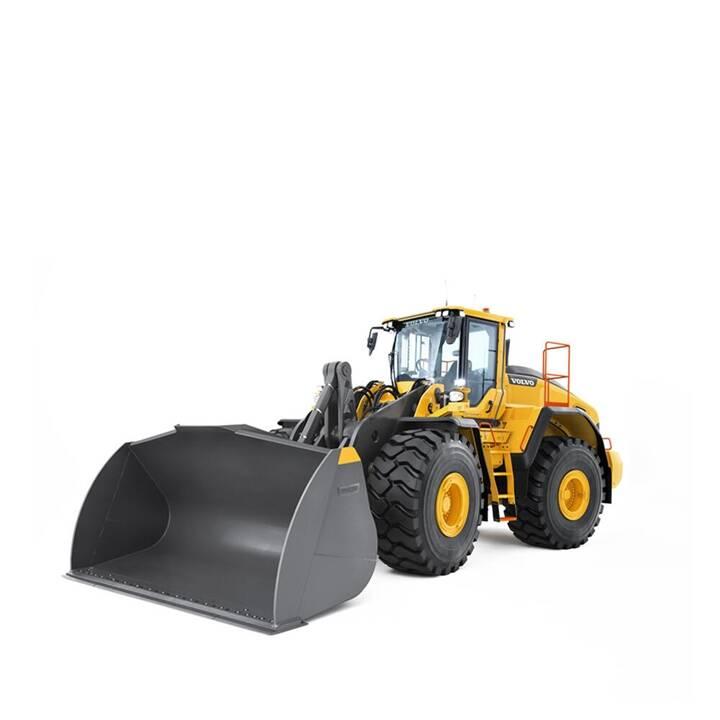

Volvo L260H Wheel Loader

Volvo L260H Wheel Loader

Get Latest Price
Rating
4.4

Engine Brand

Volvo

Engine Model

D13E

Engine Power

310kW

Max Torque

2343Nm

Rated Speed

1400–1900rpm

Displacement

12.8L

Fuel Tank Capacity

366L

Hydraulic Oil Capacity

226L

Transmission Type

Volvo Automatic Power Shift (APS), 4-speed

Number Of Gears (f/r)

4/4

Max Travel Speed (f)

36.5km/h

Max Travel Speed (r)

36.1km/h

Service Brake Type

Wet disc, oil-cooled, outboard-mounted

Parking Brake Type

Dry disc, electro-hydraulic

Steering Type

Load-sensing hydrostatic articulated

Steering Angle

37°

Oscillation Angle

15°

Turning Radius

-

Operating Weight

33.76kg

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

-

Hydraulic Flow Rate

252L/min

Hydraulic Pressure

290Bar

Overall Length

9.31m

Overall Width

3.58m

Overall Height

6.46m

Ground Clearance

600mm

Max Dump Height

3.33m

Max Load Over Height

6.46m

Max Reach At Full Height

2.28m

Loader Bucket Capacity

6.1

Loader Arm Breakout Force

311kN

Front Axle Oscillation

15°

Battery Voltage

24V

Standard Tires (front/rear)

29.5 R25 L4

Emission Standard

-

Max Travel Speed

-

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

-

Max Hinge Pin Height

-

Reach At Ground Level

-

Bucket Capacity

-

Dump Angle

-

Lift Path

-

Wheelbase

-

ACE SS 75 Skid Steer Loader

ACE SS 75 Skid Steer Loader

Get Latest Price
Rating
4.4

Engine Brand

ACE / Simpson

Engine Model

A50 / TSJ436

Engine Power

50 / 60 / 75HP

Max Torque

-

Rated Speed

2100 / 2200rpm

Displacement

-

Fuel Tank Capacity

55L

Hydraulic Oil Capacity

-

Transmission Type

Infinitely variable hydrostatic drive

Number Of Gears (f/r)

-

Max Travel Speed (f)

-

Max Travel Speed (r)

-

Service Brake Type

-

Parking Brake Type

-

Steering Type

-

Steering Angle

-

Oscillation Angle

-

Turning Radius

-

Operating Weight

2.85Ton

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

-

Hydraulic Flow Rate

82L/min

Hydraulic Pressure

-

Overall Length

3.62m

Overall Width

1.645m

Overall Height

2.11m

Ground Clearance

185mm

Max Dump Height

2.29m

Max Load Over Height

-

Max Reach At Full Height

0.68m

Loader Bucket Capacity

-

Loader Arm Breakout Force

-

Front Axle Oscillation

-

Battery Voltage

-

Standard Tires (front/rear)

-

Emission Standard

Bharat (TREM) Stage III A / CEV / BSIII / Tier 2 / BS-III

Max Travel Speed

10km/h

Rated Operating Capacity

750kg

Rated Operating Capacity (optional)

-

Max Tipping Load

1500kg

Hydraulic System Capacity

65L

Max Hinge Pin Height

3.15m

Reach At Ground Level

-

Bucket Capacity

0.4

Dump Angle

40°

Lift Path

-

Wheelbase

1.01m

Volvo L150H Wheel Loader

Volvo L150H Wheel Loader

Get Latest Price
Rating
4.4

Engine Brand

Volvo

Engine Model

D13F

Engine Power

300kW

Max Torque

1999Nm

Rated Speed

1300rpm

Displacement

12.8L

Fuel Tank Capacity

366L

Hydraulic Oil Capacity

156L

Transmission Type

Volvo HTL 223

Number Of Gears (f/r)

-

Max Travel Speed (f)

38km/h

Max Travel Speed (r)

-

Service Brake Type

Wet Disc

Parking Brake Type

Dry Disc

Steering Type

Articulated

Steering Angle

37°

Oscillation Angle

15°

Turning Radius

-

Operating Weight

26.47kg

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

7700kg

Hydraulic Flow Rate

180L/min

Hydraulic Pressure

290Bar

Overall Length

8.58m

Overall Width

2.93m

Overall Height

3.51m

Ground Clearance

0.61mm

Max Dump Height

3.15m

Max Load Over Height

-

Max Reach At Full Height

-

Loader Bucket Capacity

4.0

Loader Arm Breakout Force

201.2kN

Front Axle Oscillation

15°

Battery Voltage

24V

Standard Tires (front/rear)

26.5 R25 L3

Emission Standard

-

Max Travel Speed

-

Rated Operating Capacity

-

Rated Operating Capacity (optional)

-

Max Tipping Load

-

Hydraulic System Capacity

-

Max Hinge Pin Height

-

Reach At Ground Level

-

Bucket Capacity

-

Dump Angle

-

Lift Path

-

Wheelbase

-
