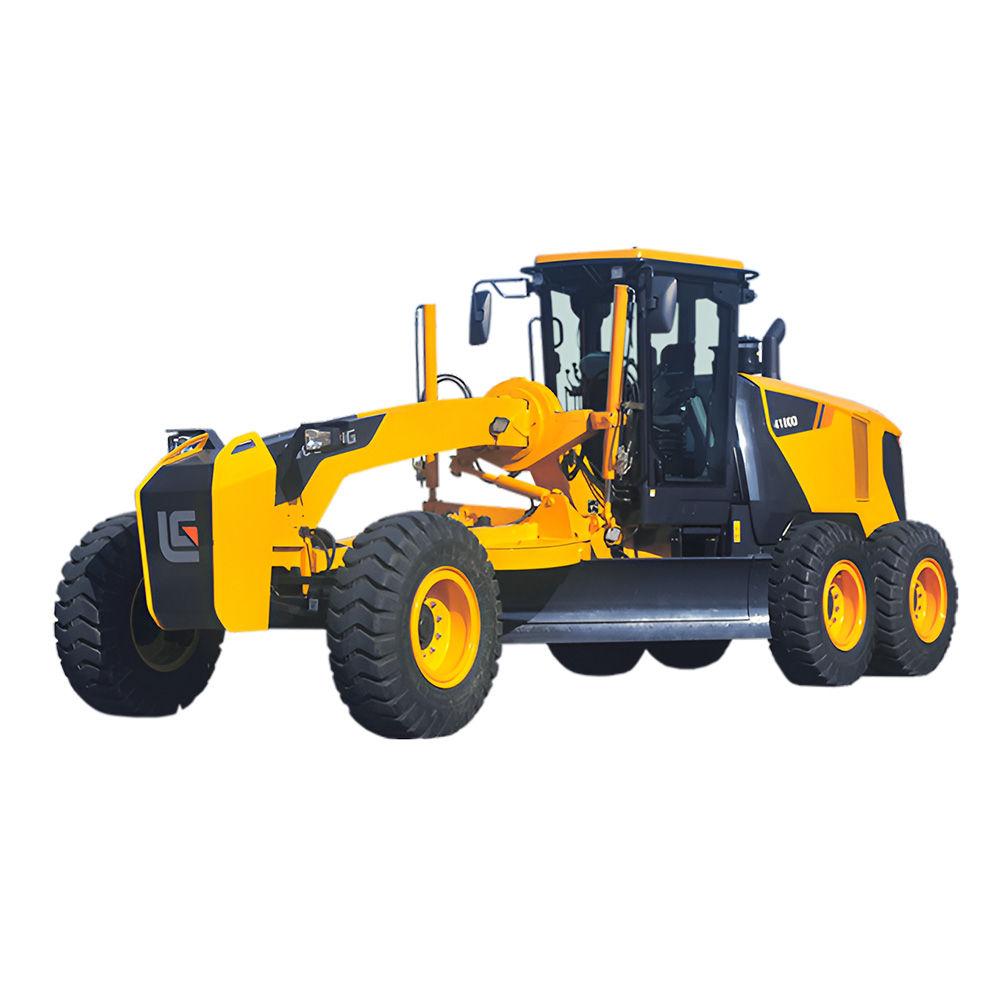

LiuGong 4180D Motor Grader
LiuGong India Pvt Ltd
Haryana
The LiuGong 4180D Motor Grader is a robust and versatile machine built for high-performance grading across demanding terrains. Powered by a 180 HP Ashok Leyland engine and featuring a 6.7L displacement, it delivers reliable torque of 700 Nm for maximum efficiency. Its ZF Powershift transmission with 6 forward and 3 reverse gears ensures smooth operation and excellent speed control. The grader's moldboard offers a 3.66-meter blade with a 360° rotation, 90° tilt angle, and 680 mm cutting depth, ideal for fine grading, road construction, and ditching work. With a 15-ton operating weight, ±50° steering angle, and ±27° frame articulation, it ensures outstanding maneuverability. Enhanced with a fully air-conditioned cabin, AIS160 safety compliance, and optional features like a ripper, dozer, and GPS, it's engineered for operator comfort and jobsite precision.
LiuGong 4180D Motor Grader
LiuGong India Pvt Ltd
Haryana
The LiuGong 4180D Motor Grader is a robust and versatile machine built for high-performance grading across demanding terrains. Powered by a 180 HP Ashok Leyland engine and featuring a 6.7L displacement, it delivers reliable torque of 700 Nm for maximum efficiency. Its ZF Powershift transmission with 6 forward and 3 reverse gears ensures smooth operation and excellent speed control. The grader's moldboard offers a 3.66-meter blade with a 360° rotation, 90° tilt angle, and 680 mm cutting depth, ideal for fine grading, road construction, and ditching work. With a 15-ton operating weight, ±50° steering angle, and ±27° frame articulation, it ensures outstanding maneuverability. Enhanced with a fully air-conditioned cabin, AIS160 safety compliance, and optional features like a ripper, dozer, and GPS, it's engineered for operator comfort and jobsite precision.
Product Description
The LiuGong 4180D Motor Grader is a robust and versatile machine built for high-performance grading ...
View the full brochure
LiuGong 4180D Motor Grader Comparison with Similar Motor Grader

LiuGong 4180D Motor Grader
Engine Brand
Ashok Leyland
Engine Model
H6 Engine
Engine Power
180HP
Max Torque
700Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
275L
Transmission Type
Powershift Transmission
Number Of Gears (fwd/rev)
6 Fwd / 3 Rev
Max Travel Speed
43km/h
Service Brake Type
Fully Hydraulic, Shoe
Parking Brake Type
Manual, Mechanical Shoe Brake
Steering Type
Front Wheel Steering
Steering Angle
±50°
Oscillation Angle
±15°
Turning Radius
7.8m
Operating Weight
15.0Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
200L/min
Hydraulic Pressure
-
Overall Length
9.09m
Overall Width
2.6m
Overall Height
3.67m
Ground Clearance
0.37mm
Blade Length
3.66m
Blade Height
0.61m
Max Lift Above Ground
0.6m
Max Depth Of Cut
0.68m
Blade Tilt Angle
90°
Blade Pitch Angle
28–74°
Blade Rotation Angle
360°

Liugong CLG 414 BSIII Motor Grader
Engine Brand
CUMMINS INDIA
Engine Model
6BTAA5.9
Engine Power
150HP
Max Torque
655Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
250L
Transmission Type
Power Shift
Number Of Gears (fwd/rev)
6F/3R
Max Travel Speed
41km/h
Service Brake Type
Shoe
Parking Brake Type
Shoe
Steering Type
Full hydraulic steering
Steering Angle
90°
Oscillation Angle
30°
Turning Radius
7.2m
Operating Weight
14.3Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
180Bar
Overall Length
9.21m
Overall Width
3.4m
Overall Height
3.66m
Ground Clearance
575mm
Blade Length
3.66m
Blade Height
0.61m
Max Lift Above Ground
0.485m
Max Depth Of Cut
0.575m
Blade Tilt Angle
70°
Blade Pitch Angle
-
Blade Rotation Angle
90°

Sany STG210C-10 Motor Grader
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
225HP
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
350L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Operating Weight
15.35Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Blade Rotation Angle
360°

FINE 585HD Motor Grader
Engine Brand
Ashok Leyland
Engine Model
-
Engine Power
130HP
Max Torque
480Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
140L
Transmission Type
Power - Shift Transmission (AVTECH)
Number Of Gears (fwd/rev)
2 Forward / 2 Reverse
Max Travel Speed
20km/h
Service Brake Type
Foot pedal operated hydraulic brake through master cylinder
Parking Brake Type
Spring Applied Hydraulic Release (SAHR)
Steering Type
Hydraulic Power Steering
Steering Angle
45°
Oscillation Angle
20°
Turning Radius
10.26m
Operating Weight
9.495Ton
Front Axle Load
2710kg
Rear Axle Load
6750kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
220Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Blade Length
3.05m
Blade Height
0.494m
Max Lift Above Ground
0.46m
Max Depth Of Cut
-
Blade Tilt Angle
40° Forward / 5° Backward°
Blade Pitch Angle
-
Blade Rotation Angle
360°

CASE 865C VHP Motor Grader
Engine Brand
FPT
Engine Model
F4HE613B*W002
Engine Power
220HP
Max Torque
930Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
380L
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
Disc, bathed in oil
Parking Brake Type
-
Steering Type
Hydrostatic power steering
Steering Angle
25°
Oscillation Angle
20°
Turning Radius
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
186L/min
Hydraulic Pressure
175Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
0.58 (front) mm
Blade Length
3.962m
Blade Height
0.622 m
Max Lift Above Ground
0.4445m
Max Depth Of Cut
0.7112m
Blade Tilt Angle
-
Blade Pitch Angle
87°
Blade Rotation Angle
360 °
