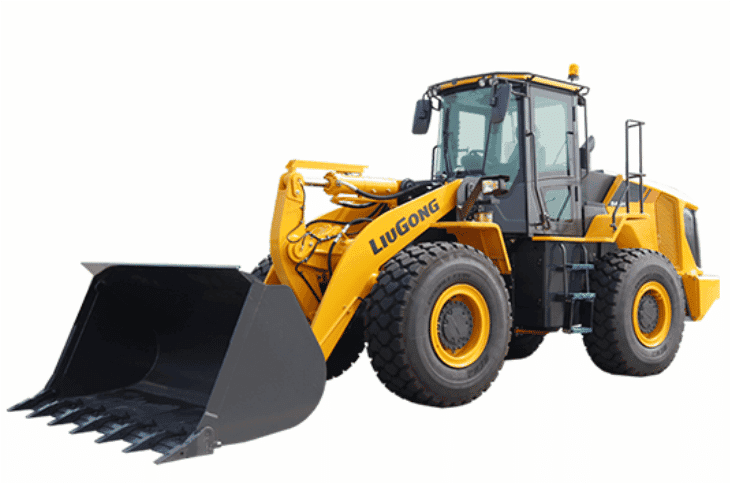

Liugong 848H Wheel Loader
LiuGong India Pvt Ltd
Madhya Pradesh
The LiuGong 848H Wheel Loader combines power, efficiency, and comfort for a range of demanding applications. Featuring a CEV Stage IV compliant Yuchai YCK09220-B460 engine with 220 hp, it handles tough jobs effortlessly with a 4,500 kg rated load and 167 kN bucket breakout force. Its versatile bucket options—GP 2.8 m³, Rock 2.0 m³, and Coal 4.3 m³—make it suitable for diverse material handling needs. With a tipping load of 10,300 kg and a total cycle time of 10.3 seconds, the 848H excels in performance. The well-designed AC cab enhances operator comfort and productivity, reducing fatigue during extended use. Ground-level serviceability ensures easy maintenance access, minimizing downtime and ensuring reliable operation in various environments.
Liugong 848H Wheel Loader
LiuGong India Pvt Ltd
Madhya Pradesh
The LiuGong 848H Wheel Loader combines power, efficiency, and comfort for a range of demanding applications. Featuring a CEV Stage IV compliant Yuchai YCK09220-B460 engine with 220 hp, it handles tough jobs effortlessly with a 4,500 kg rated load and 167 kN bucket breakout force. Its versatile bucket options—GP 2.8 m³, Rock 2.0 m³, and Coal 4.3 m³—make it suitable for diverse material handling needs. With a tipping load of 10,300 kg and a total cycle time of 10.3 seconds, the 848H excels in performance. The well-designed AC cab enhances operator comfort and productivity, reducing fatigue during extended use. Ground-level serviceability ensures easy maintenance access, minimizing downtime and ensuring reliable operation in various environments.
Product Description
The LiuGong 848H Wheel Loader combines power, efficiency, and comfort for a range of demanding appli...
View the full brochure
Liugong 848H Wheel Loader Comparison with Similar Wheel Loader

Liugong 848H Wheel Loader
Engine Brand
Yuchai
Engine Model
YCK09230-B460
Engine Power
162kW
Max Torque
1100Nm
Rated Speed
2000rpm
Displacement
9.41L
Fuel Tank Capacity
280L
Hydraulic Oil Capacity
225L
Transmission Type
Powershift Transmission
Number Of Gears (f/r)
2 / 1
Max Travel Speed (f)
40km/h
Max Travel Speed (r)
17km/h
Service Brake Type
Air over hydraulic (4W) w/ independent circuits
Parking Brake Type
Drum Brake (Mechanical Actuation)
Steering Type
Articulation
Steering Angle
±38 °
Oscillation Angle
±12 °
Turning Radius
7.0 m
Operating Weight
16.87kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
332L/min
Hydraulic Pressure
170Bar
Overall Length
8.146 m
Overall Width
2.97m
Overall Height
3.15m
Ground Clearance
423mm
Max Dump Height
3.081m
Max Load Over Height
4.114m
Max Reach At Full Height
1.125m
Loader Bucket Capacity
2.8m³
Loader Arm Breakout Force
167kN
Front Axle Oscillation
±12 °
Battery Voltage
24V
Standard Tires (front/rear)
23.5 – 25 –16PR

Volvo L350H Wheel Loader
Engine Brand
Volvo
Engine Model
D16E
Engine Power
397kW
Max Torque
2550Nm
Rated Speed
1700–1800rpm
Displacement
16.1L
Fuel Tank Capacity
540L
Hydraulic Oil Capacity
365L
Transmission Type
Volvo HTL 500, APS, ECM controlled
Number Of Gears (f/r)
4/4
Max Travel Speed (f)
37.7km/h
Max Travel Speed (r)
37.7km/h
Service Brake Type
Dual circuit, oil-cooled, wet disc brakes
Parking Brake Type
Dry, spring-applied, electro-hydraulically released
Steering Type
Load-sensing hydrostatic articulated steering
Steering Angle
±37°
Oscillation Angle
±12°
Turning Radius
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
827L/min
Hydraulic Pressure
29Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
550mm
Max Dump Height
-
Max Load Over Height
-
Max Reach At Full Height
-
Loader Bucket Capacity
-
Loader Arm Breakout Force
-
Front Axle Oscillation
±12°
Battery Voltage
24V
Standard Tires (front/rear)
35/65 R33 L4

Volvo L260H Wheel Loader
Engine Brand
Volvo
Engine Model
D13E
Engine Power
310kW
Max Torque
2343Nm
Rated Speed
1400–1900rpm
Displacement
12.8L
Fuel Tank Capacity
366L
Hydraulic Oil Capacity
226L
Transmission Type
Volvo Automatic Power Shift (APS), 4-speed
Number Of Gears (f/r)
4/4
Max Travel Speed (f)
36.5km/h
Max Travel Speed (r)
36.1km/h
Service Brake Type
Wet disc, oil-cooled, outboard-mounted
Parking Brake Type
Dry disc, electro-hydraulic
Steering Type
Load-sensing hydrostatic articulated
Steering Angle
37°
Oscillation Angle
15°
Turning Radius
-
Operating Weight
33.76kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
252L/min
Hydraulic Pressure
290Bar
Overall Length
9.31m
Overall Width
3.58m
Overall Height
6.46m
Ground Clearance
600mm
Max Dump Height
3.33m
Max Load Over Height
6.46m
Max Reach At Full Height
2.28m
Loader Bucket Capacity
6.1m³
Loader Arm Breakout Force
311kN
Front Axle Oscillation
15°
Battery Voltage
24V
Standard Tires (front/rear)
29.5 R25 L4

Volvo L150H Wheel Loader
Engine Brand
Volvo
Engine Model
D13F
Engine Power
300kW
Max Torque
1999Nm
Rated Speed
1300rpm
Displacement
12.8L
Fuel Tank Capacity
366L
Hydraulic Oil Capacity
156L
Transmission Type
Volvo HTL 223
Number Of Gears (f/r)
-
Max Travel Speed (f)
38km/h
Max Travel Speed (r)
-
Service Brake Type
Wet Disc
Parking Brake Type
Dry Disc
Steering Type
Articulated
Steering Angle
37°
Oscillation Angle
15°
Turning Radius
-
Operating Weight
26.47kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
7700kg
Hydraulic Flow Rate
180L/min
Hydraulic Pressure
290Bar
Overall Length
8.58m
Overall Width
2.93m
Overall Height
3.51m
Ground Clearance
0.61mm
Max Dump Height
3.15m
Max Load Over Height
-
Max Reach At Full Height
-
Loader Bucket Capacity
4.0m³
Loader Arm Breakout Force
201.2kN
Front Axle Oscillation
15°
Battery Voltage
24V
Standard Tires (front/rear)
26.5 R25 L3

Volvo L120H Wheel Loader
Engine Brand
Volvo
Engine Model
D8L
Engine Power
190kW
Max Torque
1125Nm
Rated Speed
1700 - 2240rpm
Displacement
7.8L
Fuel Tank Capacity
270L
Hydraulic Oil Capacity
140L
Transmission Type
Volvo HTE 206F APS
Number Of Gears (f/r)
4/4
Max Travel Speed (f)
40km/h
Max Travel Speed (r)
40km/h
Service Brake Type
Wet disc, dual circuit with accumulators
Parking Brake Type
Wet multi-disc, spring applied, electro-hydraulic release
Steering Type
Hydrostatic articulated, load-sensing
Steering Angle
40°
Oscillation Angle
13°
Turning Radius
-
Operating Weight
20.21kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
128L/min
Hydraulic Pressure
290Bar
Overall Length
8.93m
Overall Width
2.99m
Overall Height
3.33m
Ground Clearance
435mm
Max Dump Height
2.84m
Max Load Over Height
4.66m
Max Reach At Full Height
-
Loader Bucket Capacity
3.8m³
Loader Arm Breakout Force
163.7kN
Front Axle Oscillation
13°
Battery Voltage
24V
Standard Tires (front/rear)
23.5 R25 L3
