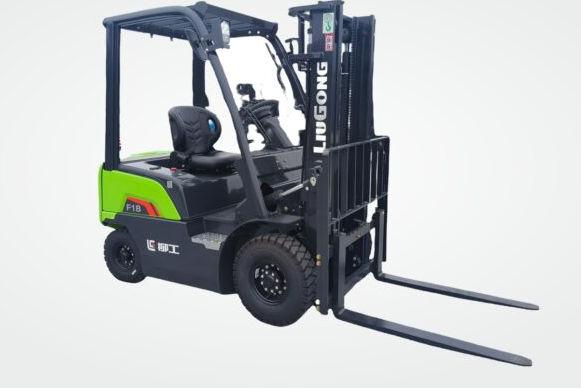

Liugong CPD25 Forklit
liugong
The Liugong CPD25 Electric Forklift is a durable and eco-friendly material handling solution with a 2500 kg load capacity and 500 mm load center. Powered by an 80V lithium battery (205 Ah) and equipped with a strong mast that reaches up to 4500 mm, it delivers smooth lifting, lowering, and travel operations. With its solid tires, compact turning radius, and advanced Jiachen control system, it ensures reliable performance in demanding indoor and outdoor environments.
Liugong CPD25 Forklit
liugong
The Liugong CPD25 Electric Forklift is a durable and eco-friendly material handling solution with a 2500 kg load capacity and 500 mm load center. Powered by an 80V lithium battery (205 Ah) and equipped with a strong mast that reaches up to 4500 mm, it delivers smooth lifting, lowering, and travel operations. With its solid tires, compact turning radius, and advanced Jiachen control system, it ensures reliable performance in demanding indoor and outdoor environments.
Liugong CPD25 Forklit specs & features
Product Description
The Liugong CPD25 Electric Forklift is a durable and eco-friendly material handling solution with a ...
Liugong CPD25 Forklit Comparison with Similar Forklift
Liugong CPD25 Forklit
Power Type
Electric
Drive Motor/ Engine Power
16 (Pump Motor), 12 (Drive Motor – S2 60min working system)kW
Battery Rating (standard)
80 / 205 V / Ah
Electronic Controller / Motor Controller
Jiachen
Travel Speed (loaded / Unloaded)
15 / 16km/h
Lifting Speed (loaded / Unloaded)
400 / 540mm/s
Lowering Speed (loaded / Unloaded)
510 / 420mm/s
Max. Drawbar Pull
11.5kN
Max. Gradeability
16 / 23%
Turning Radius (min. Outside, As Listed)
2230mm
Liugong CPDS20 Forklift
Power Type
Electric
Drive Motor/ Engine Power
5 × 2kW
Battery Rating (standard)
76.8 / 150 V / Ah
Electronic Controller / Motor Controller
AC
Travel Speed (loaded / Unloaded)
16 / 16km/h
Lifting Speed (loaded / Unloaded)
400 / 600mm/s
Lowering Speed (loaded / Unloaded)
500 / 460mm/s
Max. Drawbar Pull
12kN
Max. Gradeability
20 / 25 %
Turning Radius (min. Outside, As Listed)
3450mm
Liugong CPDS18 Forklift
Power Type
Electric
Drive Motor/ Engine Power
5 × 2kW
Battery Rating (standard)
76.8 / 150 V / Ah
Electronic Controller / Motor Controller
AC
Travel Speed (loaded / Unloaded)
16 / 16km/h
Lifting Speed (loaded / Unloaded)
430 / 600mm/s
Lowering Speed (loaded / Unloaded)
500 / 460mm/s
Max. Drawbar Pull
12kN
Max. Gradeability
20 / 25%
Turning Radius (min. Outside, As Listed)
3440mm
Liugong CPDS16 Forklift
Power Type
Electric
Drive Motor/ Engine Power
5 × 2kW
Battery Rating (standard)
76.8 / 150 V / Ah
Electronic Controller / Motor Controller
AC
Travel Speed (loaded / Unloaded)
16 / 17km/h
Lifting Speed (loaded / Unloaded)
450 / 600mm/s
Lowering Speed (loaded / Unloaded)
500 / 460mm/s
Max. Drawbar Pull
12kN
Max. Gradeability
22 / 30%
Turning Radius (min. Outside, As Listed)
3440 4800mm
Liugong CPD18 Forklift
Power Type
Electric
Drive Motor/ Engine Power
8kW
Battery Rating (standard)
48 / 150V / Ah
Electronic Controller / Motor Controller
Permanent magnet synchronization
Travel Speed (loaded / Unloaded)
17 / 18km/h
Lifting Speed (loaded / Unloaded)
360 / 450mm/s
Lowering Speed (loaded / Unloaded)
500 / 490mm/s
Max. Drawbar Pull
15 / 20kN
Max. Gradeability
-
Turning Radius (min. Outside, As Listed)
-
