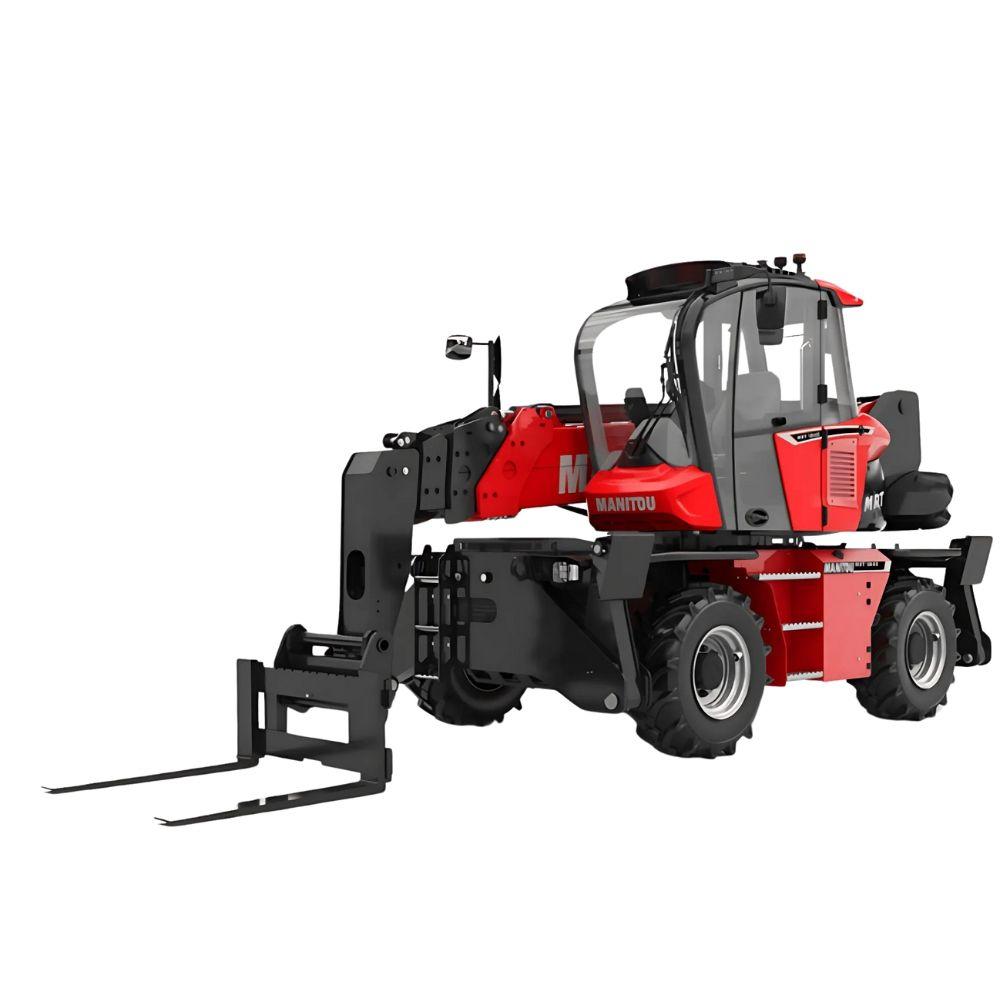

Manitou MRT-X 1845 Telehandler
The Manitou MRT-X 1845 Telehandler is a versatile and powerful solution for a wide range of construction and industrial tasks. With a maximum lifting height of 18 meters and a load capacity of 4500 kg, this telehandler excels in high-rise construction and heavy-duty material handling. Its innovative 3-in-1 concept allows it to operate as a telescopic handler, aerial platform, and winch, adapting to diverse job site needs. The machine offers exceptional maneuverability with three steering modes and a rotating turret, enabling precise operations even in confined spaces. Equipped with a 116 HP engine, the MRT-X 1845 delivers powerful performance, while its ergonomic cab provides panoramic visibility and comfort. Whether working on stabilizers or tires, this telehandler ensures safety, efficiency, and reliability in every task.
Manitou MRT-X 1845 Telehandler
The Manitou MRT-X 1845 Telehandler is a versatile and powerful solution for a wide range of construction and industrial tasks. With a maximum lifting height of 18 meters and a load capacity of 4500 kg, this telehandler excels in high-rise construction and heavy-duty material handling. Its innovative 3-in-1 concept allows it to operate as a telescopic handler, aerial platform, and winch, adapting to diverse job site needs. The machine offers exceptional maneuverability with three steering modes and a rotating turret, enabling precise operations even in confined spaces. Equipped with a 116 HP engine, the MRT-X 1845 delivers powerful performance, while its ergonomic cab provides panoramic visibility and comfort. Whether working on stabilizers or tires, this telehandler ensures safety, efficiency, and reliability in every task.
Product Description
The Manitou MRT-X 1845 Telehandler is a versatile and powerful solution for a wide range of construc...
View the full brochure
Manitou MRT-X 1845 Telehandler Comparison with Similar Telehandler

Manitou MRT-X 1845 Telehandler
Engine Brand
Deutz
Engine Model
TCD 3.6 L4
Engine Power
116 HP
Max Torque
460 Nm
Rated Speed
1600rpm
Displacement
3.62L
Fuel Tank Capacity
130 L
Hydraulic Oil Capacity
-
Engine Cooling System
Water cooled
Transmission Type
Hydrostatic
Number Of Gears (f/r)
2/2
Torque Converter Stall Ratio
-
Max Travel Speed
-
Service Brake Type
Oil-immersed multi-discs braking on front & rear axles
Parking Brake Type
Automatic negative parking brake
Steering Type
-
Oscillation Angle
-
Operating Weight
-
Max Lifting Capacity
-
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic Pump Type
-
Max Lift Height
-
Max Forward Reach
-
Frame Levelling Angle
-
Boom Raise / Lower Time
-
Boom Extend / Retract Time
-
Tilt Angle (up / Down)
-
Drawbar Pull
-
Gradeability (laden)
-
Overall Length
-
Overall Width
-
Overall Height
-
Wheelbase
-
Ground Clearance
-
Battery Voltage
-
Tyres
-
Fork Dimensions
-
Cab Certification
-
Controls
-
Seat
-
Noise Level At Operator
-
Noise To Environment (lwa)
-

Manitou MT-X 1033 A Mining Telehandler
Engine Brand
Perkins
Engine Model
1104D-44 TA
Engine Power
101HP
Max Torque
410Nm
Rated Speed
1400rpm
Displacement
4.4L
Fuel Tank Capacity
120L
Hydraulic Oil Capacity
128L
Engine Cooling System
-
Transmission Type
Torque converter
Number Of Gears (f/r)
4 / 4
Torque Converter Stall Ratio
-
Max Travel Speed
27km/h
Service Brake Type
Oil-immersed multi-discs
Parking Brake Type
Manual
Steering Type
3.66m
Oscillation Angle
-
Operating Weight
7.745Ton
Max Lifting Capacity
3300kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
106L/min
Hydraulic Pressure
250bar
Hydraulic Pump Type
Gear pump
Max Lift Height
9.98m
Max Forward Reach
7.15m
Frame Levelling Angle
-
Boom Raise / Lower Time
6.7 / 5.4sec
Boom Extend / Retract Time
13.6 / 8.7sec
Tilt Angle (up / Down)
12 / 114°
Drawbar Pull
9100daN
Gradeability (laden)
-
Overall Length
4.93m
Overall Width
2.25m
Overall Height
2.30m
Wheelbase
2.69m
Ground Clearance
440mm
Battery Voltage
-
Tyres
Alliance 400/80 - 24 - 162A8
Fork Dimensions
1200 x 125 x 45mm
Cab Certification
EN 15000 / ROPS-FOPS Level 2
Controls
JSM
Seat
-
Noise Level At Operator
76dB
Noise To Environment (lwa)
104dB

Manitou MXT 840 IND Telehandler
Engine Brand
Kirloskar
Engine Model
4R1190NA1
Engine Power
74.5HP
Max Torque
300Nm
Rated Speed
1320rpm
Displacement
4.76L
Fuel Tank Capacity
78.5L
Hydraulic Oil Capacity
120L
Engine Cooling System
-
Transmission Type
Torque converter
Number Of Gears (f/r)
4 / 4
Torque Converter Stall Ratio
-
Max Travel Speed
28km/h
Service Brake Type
Oil-immersed multi-discs on front & rear axles
Parking Brake Type
-
Steering Type
2 / 2m
Oscillation Angle
-
Operating Weight
8.45Ton
Max Lifting Capacity
4000kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
91.4L/min
Hydraulic Pressure
250bar
Hydraulic Pump Type
Gear pump
Max Lift Height
7.6m
Max Forward Reach
4.23m
Frame Levelling Angle
-
Boom Raise / Lower Time
4.36sec
Boom Extend / Retract Time
-
Tilt Angle (up / Down)
12 / 134°
Drawbar Pull
-
Gradeability (laden)
-
Overall Length
5.876m
Overall Width
2.387m
Overall Height
2.586m
Wheelbase
2.58m
Ground Clearance
372mm
Battery Voltage
12V
Tyres
BKT 16.0/70-20 14PR- EM936 SPL
Fork Dimensions
1200 x 125 x 49mm
Cab Certification
Cabin ROPS - FOPS level 2
Controls
-
Seat
-
Noise Level At Operator
90dB
Noise To Environment (lwa)
110dB

Manitou MT-X 1440 Telehandler
Engine Brand
Perkins
Engine Model
1104D-44TA
Engine Power
101HP
Max Torque
400Nm
Rated Speed
1400rpm
Displacement
4.4L
Fuel Tank Capacity
140L
Hydraulic Oil Capacity
135L
Engine Cooling System
-
Transmission Type
Torque converter
Number Of Gears (f/r)
4 / 4
Torque Converter Stall Ratio
-
Max Travel Speed
24.90km/h
Service Brake Type
Oil-immersed multi-discs
Parking Brake Type
Automatic Negative Hand-brake
Steering Type
2WS (2 front wheels) m
Oscillation Angle
-
Operating Weight
11.115Ton
Max Lifting Capacity
4000kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
167L/min
Hydraulic Pressure
270 bar
Hydraulic Pump Type
Gear pump
Max Lift Height
13.53m
Max Forward Reach
9.46m
Frame Levelling Angle
-
Boom Raise / Lower Time
15.50 / 11.60sec
Boom Extend / Retract Time
16.50 / 11.90sec
Tilt Angle (up / Down)
12 / 114°
Drawbar Pull
8250daN
Gradeability (laden)
-
Overall Length
6.13m
Overall Width
2.42m
Overall Height
2.45m
Wheelbase
3.07m
Ground Clearance
370mm
Battery Voltage
-
Tyres
Alliance 400/80 - 24 - 162A8
Fork Dimensions
1200 x 125 x 50mm
Cab Certification
ROPS
Controls
JSM
Seat
-
Noise Level At Operator
82dB
Noise To Environment (lwa)
105dB

Manitou MT-X 733 Mining Telehandler
Engine Brand
Perkins
Engine Model
1104D-44 T
Engine Power
95HP
Max Torque
392Nm
Rated Speed
-
Displacement
4.4L
Fuel Tank Capacity
120L
Hydraulic Oil Capacity
128L
Engine Cooling System
-
Transmission Type
Torque converter
Number Of Gears (f/r)
3 / 3
Torque Converter Stall Ratio
-
Max Travel Speed
15km/h
Service Brake Type
Oil-immersed multi-discs (front & rear axles)
Parking Brake Type
Manual
Steering Type
2 / 2 (front/rear)m
Oscillation Angle
-
Operating Weight
6.62Ton
Max Lifting Capacity
3300kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
104L/min
Hydraulic Pressure
250bar
Hydraulic Pump Type
Gear pump
Max Lift Height
6.90m
Max Forward Reach
3.90m
Frame Levelling Angle
-
Boom Raise / Lower Time
7.20 / 5.50sec
Boom Extend / Retract Time
6.50 / 5.40sec
Tilt Angle (up / Down)
12 / 114°
Drawbar Pull
9000daN
Gradeability (laden)
-
Overall Length
4.74m
Overall Width
2.26m
Overall Height
2.30m
Wheelbase
2.81m
Ground Clearance
450mm
Battery Voltage
-
Tyres
Alliance 400/80 - 24 - 162A8
Fork Dimensions
1200 x 125 x 45mm
Cab Certification
Standard EN 15000 / ROPS - FOPS level 2
Controls
JSM
Seat
-
Noise Level At Operator
78dB
Noise To Environment (lwa)
104dB
