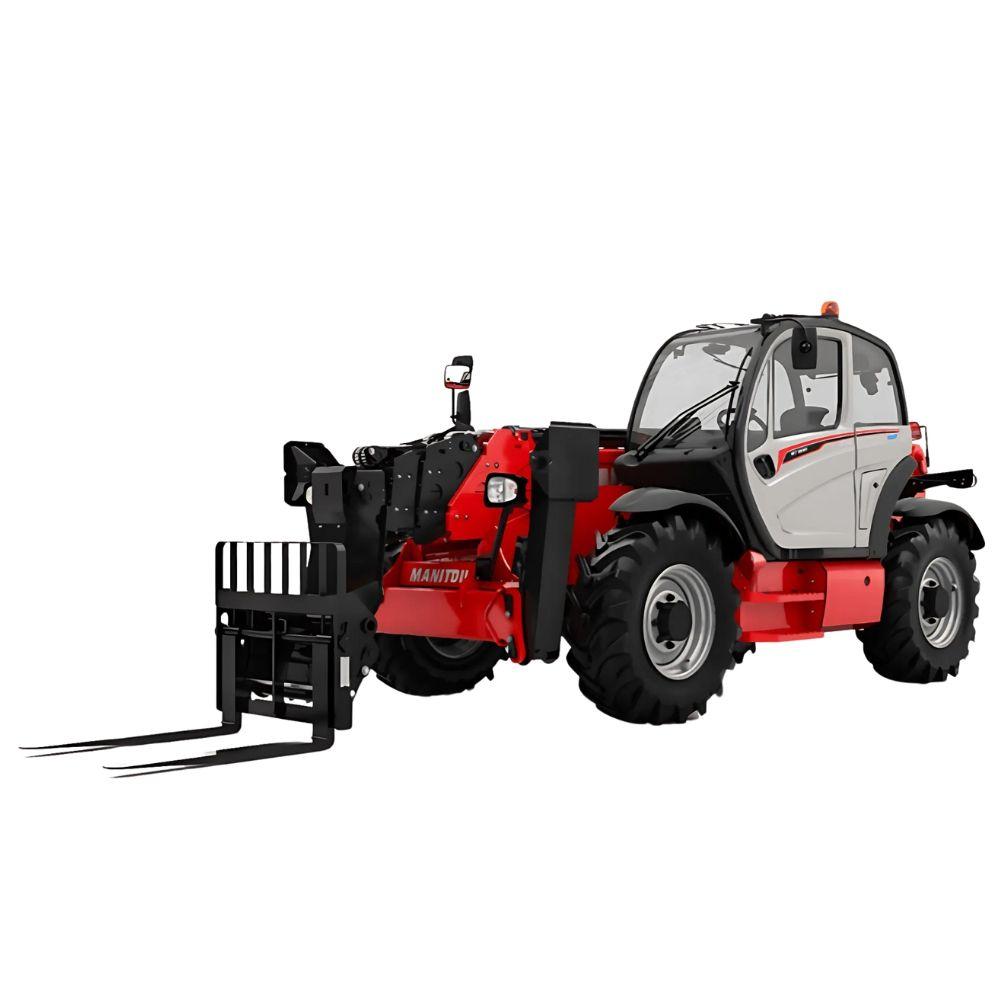

Manitou MT-X 1840 Telehandler

The Manitou MT-X 1840 Telehandler is a robust, versatile machine designed to handle heavy lifting tasks with ease. With a maximum lifting capacity of 4,000 kg and a lifting height of up to 17.55 meters, it is ideal for construction and industrial applications that require reaching significant heights. Its powerful 101 hp engine ensures reliable performance even on rough terrain, while its generous ground clearance, sharp turning radius, and three steering modes provide excellent maneuverability in challenging environments. The MT-X 1840 also features a frame leveling system and outriggers for enhanced safety and stability when handling heavy loads. Whether you're working on construction sites, agricultural tasks, or logistics operations, the MT-X 1840 offers exceptional durability, transportability, and versatility. Visit your local Manitou dealer for a demonstration and experience its capabilities firsthand.

Product Description

The Manitou MT-X 1840 Telehandler is a robust, versatile machine designed to handle heavy lifting ta...

View the full brochure

Manitou MT-X 1840 Telehandler Comparison with Similar Telehandler

Manitou MT-X 1840 Telehandler

Manitou MT-X 1840 Telehandler

Get Latest Price
Rating
4.4

Engine Brand

Perkins

Engine Model

1104D-44TA

Engine Power

101HP

Max Torque

400Nm

Rated Speed

1400rpm

Displacement

4.4L

Fuel Tank Capacity

140L

Hydraulic Oil Capacity

135L

Engine Cooling System

-

Transmission Type

Torque converter

Number Of Gears (f/r)

4/4

Torque Converter Stall Ratio

-

Max Travel Speed

24.90km/h

Service Brake Type

Oil-immersed multi-discs on front & rear axles

Parking Brake Type

Automatic Negative Hand-brake

Steering Type

2 / 2 (Front / Rear)m

Oscillation Angle

-

Operating Weight

11.60Ton

Max Lifting Capacity

4000kg

Lift Capacity At Full Height

-

Lift Capacity At Full Reach

-

Load Center

-

Hydraulic Flow Rate

167L/min

Hydraulic Pressure

270bar

Hydraulic Pump Type

Gear pump

Max Lift Height

17.55m

Max Forward Reach

13.08m

Frame Levelling Angle

-

Boom Raise / Lower Time

17.30 / 12.70sec

Boom Extend / Retract Time

16.10 / 15.60sec

Tilt Angle (up / Down)

12 / 114°

Drawbar Pull

10000daN

Gradeability (laden)

-

Overall Length

6.16m

Overall Width

2.42m

Overall Height

2.45m

Wheelbase

3.07m

Ground Clearance

370mm

Battery Voltage

-

Tyres

Alliance 400/80 - 24 -162A8 Pneumatic

Fork Dimensions

1200 x 125 x 50mm

Cab Certification

Cabin ROPS - FOPS level 2

Controls

JSM

Seat

-

Noise Level At Operator

82dB

Noise To Environment (lw A)

105dB

Currently Viewing
Manitou MT-X 733 Mining Telehandler

Manitou MT-X 733 Mining Telehandler

Get Latest Price
Rating
4.4

Engine Brand

Perkins

Engine Model

1104D-44 T

Engine Power

95HP

Max Torque

392Nm

Rated Speed

-

Displacement

4.4L

Fuel Tank Capacity

120L

Hydraulic Oil Capacity

128L

Engine Cooling System

-

Transmission Type

Torque converter

Number Of Gears (f/r)

3 / 3

Torque Converter Stall Ratio

-

Max Travel Speed

15km/h

Service Brake Type

Oil-immersed multi-discs (front & rear axles)

Parking Brake Type

Manual

Steering Type

2 / 2 (front/rear)m

Oscillation Angle

-

Operating Weight

6.62Ton

Max Lifting Capacity

3300kg

Lift Capacity At Full Height

-

Lift Capacity At Full Reach

-

Load Center

-

Hydraulic Flow Rate

104L/min

Hydraulic Pressure

250bar

Hydraulic Pump Type

Gear pump

Max Lift Height

6.90m

Max Forward Reach

3.90m

Frame Levelling Angle

-

Boom Raise / Lower Time

7.20 / 5.50sec

Boom Extend / Retract Time

6.50 / 5.40sec

Tilt Angle (up / Down)

12 / 114°

Drawbar Pull

9000daN

Gradeability (laden)

-

Overall Length

4.74m

Overall Width

2.26m

Overall Height

2.30m

Wheelbase

2.81m

Ground Clearance

450mm

Battery Voltage

-

Tyres

Alliance 400/80 - 24 - 162A8

Fork Dimensions

1200 x 125 x 45mm

Cab Certification

Standard EN 15000 / ROPS - FOPS level 2

Controls

JSM

Seat

-

Noise Level At Operator

78dB

Noise To Environment (lw A)

104dB

Manitou MHT-X 10160 ST3A Telehandler

Manitou MHT-X 10160 ST3A Telehandler

Get Latest Price
Rating
4.4

Engine Brand

Yanmar

Engine Model

4TN107TT-6SMU1

Engine Power

173HP

Max Torque

805Nm

Rated Speed

1500rpm

Displacement

4.567L

Fuel Tank Capacity

315L

Hydraulic Oil Capacity

-

Engine Cooling System

Water

Transmission Type

Hydrostatic

Number Of Gears (f/r)

2 / 2

Torque Converter Stall Ratio

-

Max Travel Speed

30km/h

Service Brake Type

Oil-immersed multi-discs

Parking Brake Type

Automatic negative parking brake

Steering Type

2WS / 4WS / Crabm

Oscillation Angle

-

Operating Weight

21.5Ton

Max Lifting Capacity

16000kg

Lift Capacity At Full Height

-

Lift Capacity At Full Reach

-

Load Center

600mm

Hydraulic Flow Rate

185L/min

Hydraulic Pressure

350bar

Hydraulic Pump Type

Variable displacement pump

Max Lift Height

9.60m

Max Forward Reach

5.20m

Frame Levelling Angle

9°

Boom Raise / Lower Time

-

Boom Extend / Retract Time

-

Tilt Angle (up / Down)

12 / 104°

Drawbar Pull

11770daN

Gradeability (laden)

32.4%

Overall Length

7.35m

Overall Width

2.48m

Overall Height

2.99m

Wheelbase

3.37m

Ground Clearance

430mm

Battery Voltage

12

Tyres

17.5-R25

Fork Dimensions

1200 x 180 x 75mm

Cab Certification

ROPS - FOPS level 2

Controls

JSM

Seat

-

Noise Level At Operator

75dB

Noise To Environment (lw A)

108dB

Manitou MRT-X 3570 Telehandler

Manitou MRT-X 3570 Telehandler

Get Latest Price
Rating
4.4

Engine Brand

Yanmar

Engine Model

4TN107FTT-6SMU2

Engine Power

211HP

Max Torque

805Nm

Rated Speed

1500rpm

Displacement

4.567L

Fuel Tank Capacity

131L

Hydraulic Oil Capacity

-

Engine Cooling System

Water cooled

Transmission Type

Hydrostatic with CVT

Number Of Gears (f/r)

Speedshift

Torque Converter Stall Ratio

-

Max Travel Speed

40km/h

Service Brake Type

Oil-immersed multi-discs on front & rear axles

Parking Brake Type

Automatic negative parking brake

Steering Type

2 wheel, 4 wheel, Crab modem

Oscillation Angle

5.06°

Operating Weight

23.8Ton

Max Lifting Capacity

7000kg

Lift Capacity At Full Height

-

Lift Capacity At Full Reach

-

Load Center

-

Hydraulic Flow Rate

172L/min

Hydraulic Pressure

350bar

Hydraulic Pump Type

Variable displacement pump

Max Lift Height

34.7m

Max Forward Reach

28m

Frame Levelling Angle

±8°

Boom Raise / Lower Time

-

Boom Extend / Retract Time

-

Tilt Angle (up / Down)

13 / 108°

Drawbar Pull

9300daN

Gradeability (laden)

29%

Overall Length

10.06m

Overall Width

2.50m

Overall Height

3.26m

Wheelbase

3.75m

Ground Clearance

440mm

Battery Voltage

12 V

Tyres

17.5-R25

Fork Dimensions

1200 x 125 x 60mm

Cab Certification

ROPS-FOPS level 2

Controls

2 Joysticks

Seat

-

Noise Level At Operator

68dB

Noise To Environment (lw A)

109dB

JCB 530-110 Telehandler

JCB 530-110 Telehandler

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

-

Max Torque

-

Rated Speed

-

Displacement

-

Fuel Tank Capacity

-

Hydraulic Oil Capacity

-

Engine Cooling System

-

Transmission Type

-

Number Of Gears (f/r)

-

Torque Converter Stall Ratio

-

Max Travel Speed

-

Service Brake Type

-

Parking Brake Type

-

Steering Type

-

Oscillation Angle

-

Operating Weight

-

Max Lifting Capacity

3,000 kg

Lift Capacity At Full Height

3,000kg

Lift Capacity At Full Reach

1,400kg

Load Center

-

Hydraulic Flow Rate

-

Hydraulic Pressure

-

Hydraulic Pump Type

-

Max Lift Height

11m

Max Forward Reach

7.46m

Frame Levelling Angle

-

Boom Raise / Lower Time

-

Boom Extend / Retract Time

-

Tilt Angle (up / Down)

-

Drawbar Pull

-

Gradeability (laden)

-

Overall Length

-

Overall Width

-

Overall Height

2.6m

Wheelbase

-

Ground Clearance

-

Battery Voltage

-

Tyres

-

Fork Dimensions

-

Cab Certification

-

Controls

-

Seat

-

Noise Level At Operator

-

Noise To Environment (lw A)

-
