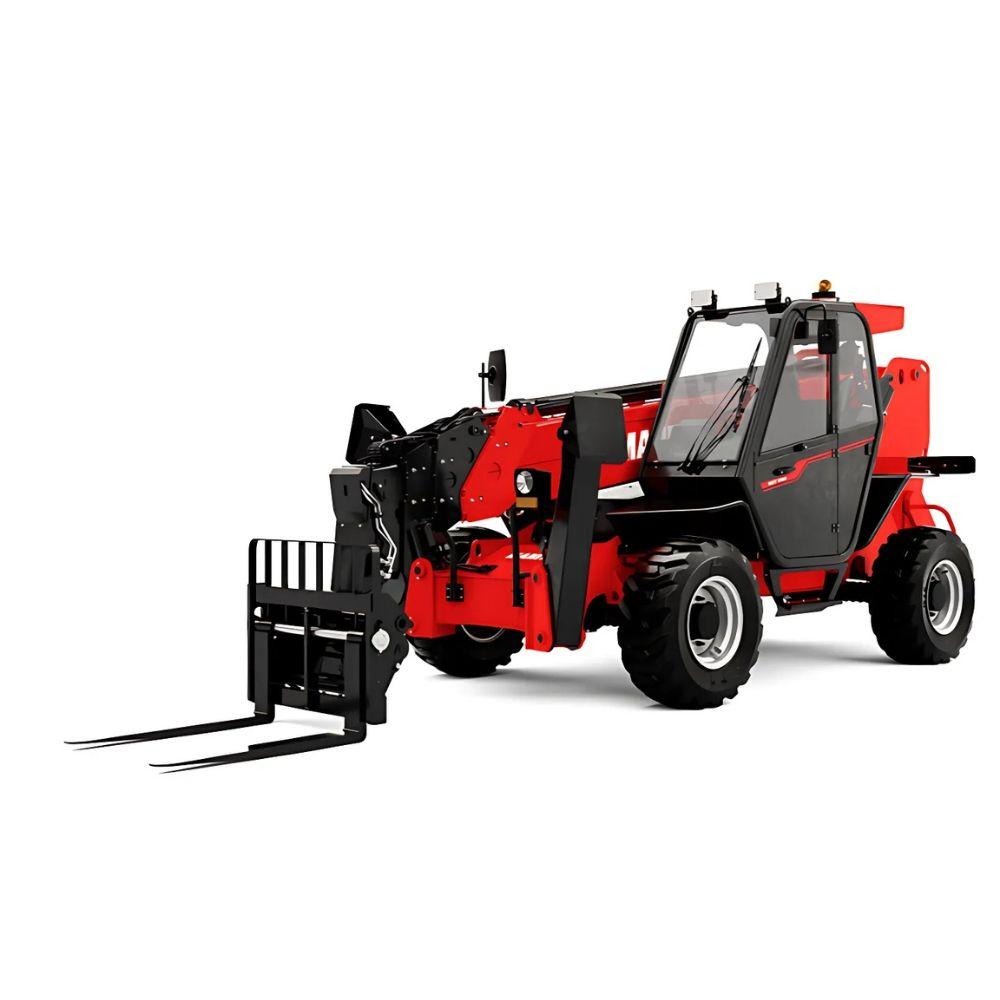

Manitou MXT 1740 K Telehandler
Krisha Equipment
Gujarat
The MXT 1740 K Telehandler is a versatile and high-performance machine designed to meet the demands of construction and industrial projects. With a maximum lifting capacity of 4000 kg and a reach of 17.4 meters, it excels in loading, unloading, and material handling tasks. Whether it's for jobsite preparation, maintenance at heights, or concrete mixing, the MXT 1740 K ensures optimal efficiency and safety. Its powerful 74.5 Hp I.C. engine delivers reliable performance, while stabilizers and tires provide outstanding stability on various terrains. The three steering modes—two-wheel, four-wheel, and crab steering—offer exceptional maneuverability in tight spaces and challenging environments. Built for efficiency and reliability, the MXT 1740 K is an indispensable asset for any project requiring heavy lifting and precise control at elevated heights.
Manitou MXT 1740 K Telehandler
Krisha Equipment
Gujarat
The MXT 1740 K Telehandler is a versatile and high-performance machine designed to meet the demands of construction and industrial projects. With a maximum lifting capacity of 4000 kg and a reach of 17.4 meters, it excels in loading, unloading, and material handling tasks. Whether it's for jobsite preparation, maintenance at heights, or concrete mixing, the MXT 1740 K ensures optimal efficiency and safety. Its powerful 74.5 Hp I.C. engine delivers reliable performance, while stabilizers and tires provide outstanding stability on various terrains. The three steering modes—two-wheel, four-wheel, and crab steering—offer exceptional maneuverability in tight spaces and challenging environments. Built for efficiency and reliability, the MXT 1740 K is an indispensable asset for any project requiring heavy lifting and precise control at elevated heights.
Product Description
The MXT 1740 K Telehandler is a versatile and high-performance machine designed to meet the demands ...
View the full brochure
Manitou MXT 1740 K Telehandler Comparison with Similar Telehandler
Manitou MXT 1740 K Telehandler
Engine Brand
Kirloskar
Engine Model
4R1190TA-HT
Engine Power
74.50HP
Max Torque
400Nm
Rated Speed
1200rpm
Displacement
4.76L
Fuel Tank Capacity
78.50L
Hydraulic Oil Capacity
120L
Engine Cooling System
BS-IV CEV
Transmission Type
Torque converter with manual transmission
Number Of Gears (f/r)
4/4
Torque Converter Stall Ratio
-
Max Travel Speed
28km/h
Service Brake Type
Oil-immersed multi-discs braking on front & rear axles
Parking Brake Type
Manual
Steering Type
4/4 Steering wheelsm
Oscillation Angle
-
Operating Weight
11.23Ton
Max Lifting Capacity
4000kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
102.50L/min
Hydraulic Pressure
250bar
Hydraulic Pump Type
Gear Pump
Max Lift Height
17.40m
Max Forward Reach
13.48m
Frame Levelling Angle
-
Boom Raise / Lower Time
14.3 / 10.4sec
Boom Extend / Retract Time
25.9 / 14.1sec
Tilt Angle (up / Down)
-
Drawbar Pull
9500daN
Gradeability (laden)
-
Overall Length
6.24m
Overall Width
2.38m
Overall Height
2.59m
Wheelbase
2.90m
Ground Clearance
390mm
Battery Voltage
-
Tyres
-
Fork Dimensions
1200 x 125 x 50mm
Cab Certification
-
Controls
Monolever
Seat
-
Noise Level At Operator
90dB
Noise To Environment (lwa)
110dB
Manitou MT-X 733 Mining Telehandler
Engine Brand
Perkins
Engine Model
1104D-44 T
Engine Power
95HP
Max Torque
392Nm
Rated Speed
-
Displacement
4.4L
Fuel Tank Capacity
120L
Hydraulic Oil Capacity
128L
Engine Cooling System
-
Transmission Type
Torque converter
Number Of Gears (f/r)
3 / 3
Torque Converter Stall Ratio
-
Max Travel Speed
15km/h
Service Brake Type
Oil-immersed multi-discs (front & rear axles)
Parking Brake Type
Manual
Steering Type
2 / 2 (front/rear)m
Oscillation Angle
-
Operating Weight
6.62Ton
Max Lifting Capacity
3300kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
104L/min
Hydraulic Pressure
250bar
Hydraulic Pump Type
Gear pump
Max Lift Height
6.90m
Max Forward Reach
3.90m
Frame Levelling Angle
-
Boom Raise / Lower Time
7.20 / 5.50sec
Boom Extend / Retract Time
6.50 / 5.40sec
Tilt Angle (up / Down)
12 / 114°
Drawbar Pull
9000daN
Gradeability (laden)
-
Overall Length
4.74m
Overall Width
2.26m
Overall Height
2.30m
Wheelbase
2.81m
Ground Clearance
450mm
Battery Voltage
-
Tyres
Alliance 400/80 - 24 - 162A8
Fork Dimensions
1200 x 125 x 45mm
Cab Certification
Standard EN 15000 / ROPS - FOPS level 2
Controls
JSM
Seat
-
Noise Level At Operator
78dB
Noise To Environment (lwa)
104dB
Manitou MHT-X 10160 ST3A Telehandler
Engine Brand
Yanmar
Engine Model
4TN107TT-6SMU1
Engine Power
173HP
Max Torque
805Nm
Rated Speed
1500rpm
Displacement
4.567L
Fuel Tank Capacity
315L
Hydraulic Oil Capacity
-
Engine Cooling System
Water
Transmission Type
Hydrostatic
Number Of Gears (f/r)
2 / 2
Torque Converter Stall Ratio
-
Max Travel Speed
30km/h
Service Brake Type
Oil-immersed multi-discs
Parking Brake Type
Automatic negative parking brake
Steering Type
2WS / 4WS / Crabm
Oscillation Angle
-
Operating Weight
21.5Ton
Max Lifting Capacity
16000kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
600mm
Hydraulic Flow Rate
185L/min
Hydraulic Pressure
350bar
Hydraulic Pump Type
Variable displacement pump
Max Lift Height
9.60m
Max Forward Reach
5.20m
Frame Levelling Angle
9°
Boom Raise / Lower Time
-
Boom Extend / Retract Time
-
Tilt Angle (up / Down)
12 / 104°
Drawbar Pull
11770daN
Gradeability (laden)
32.4%
Overall Length
7.35m
Overall Width
2.48m
Overall Height
2.99m
Wheelbase
3.37m
Ground Clearance
430mm
Battery Voltage
12
Tyres
17.5-R25
Fork Dimensions
1200 x 180 x 75mm
Cab Certification
ROPS - FOPS level 2
Controls
JSM
Seat
-
Noise Level At Operator
75dB
Noise To Environment (lwa)
108dB
Manitou MRT-X 3570 Telehandler
Engine Brand
Yanmar
Engine Model
4TN107FTT-6SMU2
Engine Power
211HP
Max Torque
805Nm
Rated Speed
1500rpm
Displacement
4.567L
Fuel Tank Capacity
131L
Hydraulic Oil Capacity
-
Engine Cooling System
Water cooled
Transmission Type
Hydrostatic with CVT
Number Of Gears (f/r)
Speedshift
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Service Brake Type
Oil-immersed multi-discs on front & rear axles
Parking Brake Type
Automatic negative parking brake
Steering Type
2 wheel, 4 wheel, Crab modem
Oscillation Angle
5.06°
Operating Weight
23.8Ton
Max Lifting Capacity
7000kg
Lift Capacity At Full Height
-
Lift Capacity At Full Reach
-
Load Center
-
Hydraulic Flow Rate
172L/min
Hydraulic Pressure
350bar
Hydraulic Pump Type
Variable displacement pump
Max Lift Height
34.7m
Max Forward Reach
28m
Frame Levelling Angle
±8°
Boom Raise / Lower Time
-
Boom Extend / Retract Time
-
Tilt Angle (up / Down)
13 / 108°
Drawbar Pull
9300daN
Gradeability (laden)
29%
Overall Length
10.06m
Overall Width
2.50m
Overall Height
3.26m
Wheelbase
3.75m
Ground Clearance
440mm
Battery Voltage
12 V
Tyres
17.5-R25
Fork Dimensions
1200 x 125 x 60mm
Cab Certification
ROPS-FOPS level 2
Controls
2 Joysticks
Seat
-
Noise Level At Operator
68dB
Noise To Environment (lwa)
109dB
JCB 530-110 Telehandler
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Engine Cooling System
-
Transmission Type
-
Number Of Gears (f/r)
-
Torque Converter Stall Ratio
-
Max Travel Speed
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Oscillation Angle
-
Operating Weight
-
Max Lifting Capacity
3,000 kg
Lift Capacity At Full Height
3,000kg
Lift Capacity At Full Reach
1,400kg
Load Center
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Hydraulic Pump Type
-
Max Lift Height
11m
Max Forward Reach
7.46m
Frame Levelling Angle
-
Boom Raise / Lower Time
-
Boom Extend / Retract Time
-
Tilt Angle (up / Down)
-
Drawbar Pull
-
Gradeability (laden)
-
Overall Length
-
Overall Width
-
Overall Height
2.6m
Wheelbase
-
Ground Clearance
-
Battery Voltage
-
Tyres
-
Fork Dimensions
-
Cab Certification
-
Controls
-
Seat
-
Noise Level At Operator
-
Noise To Environment (lwa)
-
