Nilkamal NKCBF153W 3 Wheel Electric Forklift Truck

Nilkamal Material Handling

Maharashtra

The Nilkamal NKCBF153W 3 Wheel Electric Forklift Truck is a compact and efficient solution for narrow aisle material handling in warehouses, retail stores, and logistics centers. With a load capacity of 1500 kg and a lift height of 3000 mm, it offers reliable performance in tight spaces. Its advanced parallel motor layout and low-mounted battery enhance stability and balance during operation. The regenerative braking system saves energy during deceleration, direction changes, and downhill movement, boosting operational efficiency. A wide-view mast ensures excellent visibility, while the soft lifting system reduces noise and shock. The multi-function LED dashboard displays battery power, operating hours, and self-diagnostics for easy maintenance. With a turning radius of just 1452 mm, this 3-wheel forklift is perfect for indoor, high-efficiency material movement in space-restricted environments.

  • Perfect for energy-efficient indoor logistics, featuring regenerative braking that conserves power during deceleration.
  • Suited for space-constrained retail and storage facilities, with a 1500 kg load capacity and 3000 mm lift height.
  • Best for safe and smooth load handling, offering a wide-view mast, soft lifting system, and multi-function LED dashboard.
  • Recommended for long shift operations, with a low-mounted battery and parallel motor layout for enhanced stability.
  • Ideal for ultra-narrow aisle warehouse operations, with a compact 1452 mm turning radius for exceptional maneuverability.

Product Description

The Nilkamal NKCBF153W 3 Wheel Electric Forklift Truck is a compact and efficient solution for narro...

Nilkamal NKCBF153W 3 Wheel Electric Forklift Truck Comparison with Similar Forklift

Nilkamal NKCBF153W 3 Wheel Electric Forklift Truck

Nilkamal NKCBF153W 3 Wheel Electric Forklift Truck

Get Latest Price
Rating
4.4

Battery Rating (standard)

-

Power Type

-

Drive Motor/ Engine Power

-

Rated Power

-

Displacement

-

Cylinders

-

Emission Compliance

-

Heavy Duty Battery

-

Electronic Controller / Motor Controller

-

Transmission Type

-

Travel Speed (loaded / Unloaded)

-

Lifting Speed (loaded / Unloaded)

-

Lowering Speed (loaded / Unloaded)

-

Max. Drawbar Pull

-

Max. Gradeability

-

Service Brake

-

Parking Brake

-

Steering Type

-

Minimum Turning Radius (as Listed)

-

Turning Radius (min. Outside, As Listed)

-

Load Capacity / Rated Load

-

Load Center

-

Service Weight / Self Weight

-

Weight Distribution — With Load (front / Rear)

-

Weight Distribution — Without Load (front / Rear)

-

Hydraulic Motor

-

Operating Pressure (attachments)

-

Fork Dimensions (l × W × T)

-

Fork Length

-

Fork Thickness

-

Free Lift / Free Fork Height

-

Mast / Lift Height (standard / Options)

-

Height — Overhead Guard

-

Length To Fork Face / Overall Length

-

Overall Width / Chassis Width Front

-

Wheelbase

-

Ground Clearance (min)

-

Tire Type

-

Tyre Size — Front

-

Tyre Size — Rear

-

Tread Width (front / Rear)

-

Currently Viewing

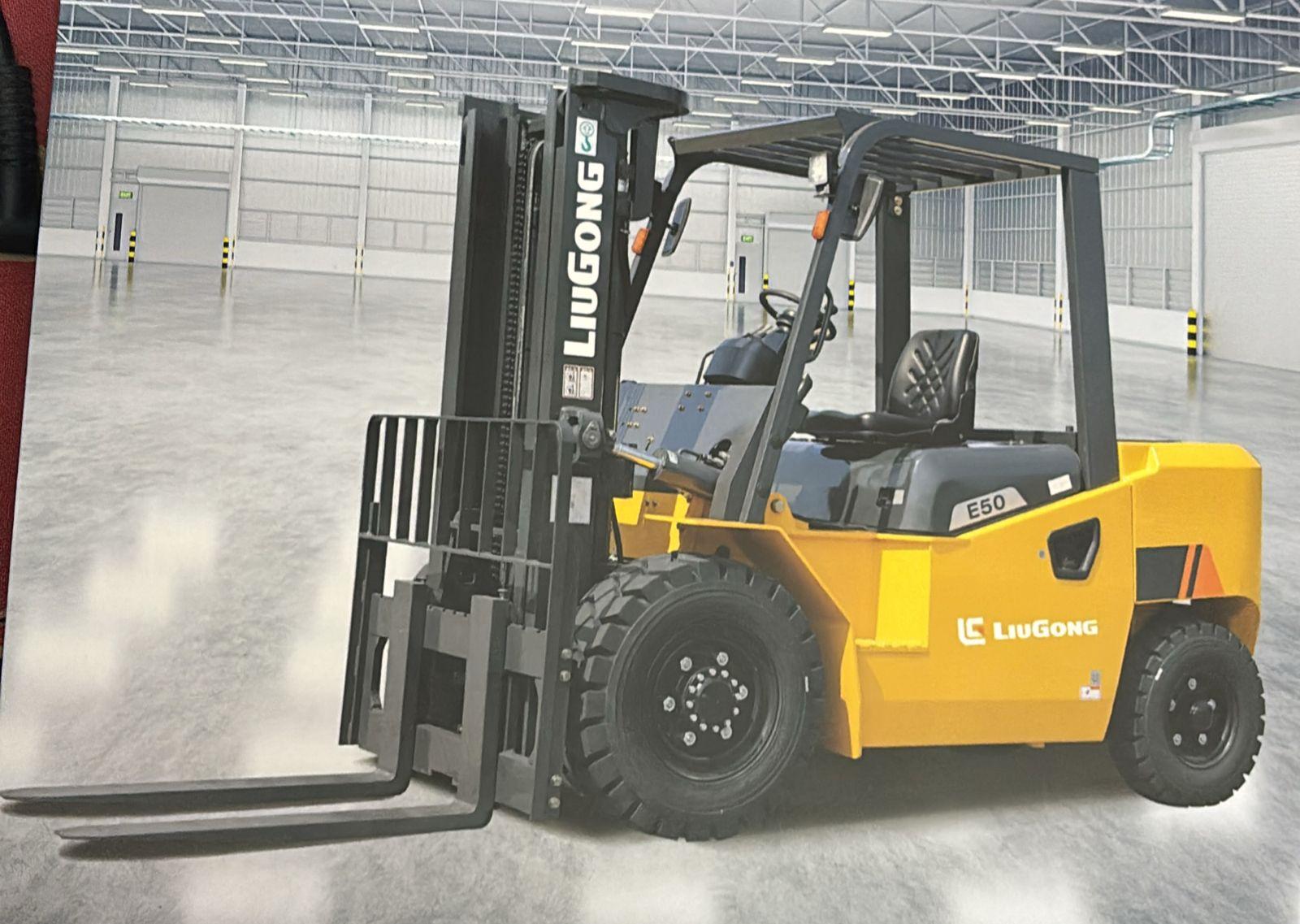

Liugong CPCD50 Forklift

Liugong CPCD50 Forklift

Get Latest Price
Rating
4.4

Battery Rating (standard)

-

Power Type

Diesel

Drive Motor/ Engine Power

60kW

Rated Power

2200rpm

Displacement

3.47l

Cylinders

4

Emission Compliance

China III

Heavy Duty Battery

-

Electronic Controller / Motor Controller

-

Transmission Type

-

Travel Speed (loaded / Unloaded)

24 / 25km/h

Lifting Speed (loaded / Unloaded)

500 / 530mm/s

Lowering Speed (loaded / Unloaded)

520 / 480mm/s

Max. Drawbar Pull

32kN

Max. Gradeability

20 / 28%

Service Brake

Foot / Hyd

Parking Brake

Hand / Mech

Steering Type

-

Minimum Turning Radius (as Listed)

-

Turning Radius (min. Outside, As Listed)

2930mm

Load Capacity / Rated Load

5000kg

Load Center

500mm

Service Weight / Self Weight

6880kg

Weight Distribution — With Load (front / Rear)

10610 / 1265kg

Weight Distribution — Without Load (front / Rear)

3040 / 3760kg

Hydraulic Motor

-

Operating Pressure (attachments)

-

Fork Dimensions (l × W × T)

1070 × 150 × 50mm

Fork Length

1070mm

Fork Thickness

50mm

Free Lift / Free Fork Height

1339mm

Mast / Lift Height (standard / Options)

4500mm

Height — Overhead Guard

2350mm

Length To Fork Face / Overall Length

3230mm

Overall Width / Chassis Width Front

1493mm

Wheelbase

2100mm

Ground Clearance (min)

165mm

Tire Type

Solid

Tyre Size — Front

300-15-18PR

Tyre Size — Rear

7.00-12-12PR

Tread Width (front / Rear)

1176 / 1190mm

Liugong CPD60-EH Forklift

Liugong CPD60-EH Forklift

Get Latest Price
Rating
4.4

Battery Rating (standard)

308 / 228 V / Ah

Power Type

Electric

Drive Motor/ Engine Power

58kW

Rated Power

-

Displacement

-

Cylinders

-

Emission Compliance

-

Heavy Duty Battery

-

Electronic Controller / Motor Controller

Electrical control, motor type

Transmission Type

-

Travel Speed (loaded / Unloaded)

25 / 26km/h

Lifting Speed (loaded / Unloaded)

510 / 530mm/s

Lowering Speed (loaded / Unloaded)

450 / 420mm/s

Max. Drawbar Pull

30 / 25kN

Max. Gradeability

-

Service Brake

Foot / Hyd

Parking Brake

Hand / Mech

Steering Type

-

Minimum Turning Radius (as Listed)

-

Turning Radius (min. Outside, As Listed)

3300mm

Load Capacity / Rated Load

6000kg

Load Center

600mm

Service Weight / Self Weight

9280kg

Weight Distribution — With Load (front / Rear)

13634 / 1721kg

Weight Distribution — Without Load (front / Rear)

4486 / 4794kg

Hydraulic Motor

Work pump motor power: 28 + 28 kW

Operating Pressure (attachments)

-

Fork Dimensions (l × W × T)

1220 × 150 × 65mm

Fork Length

1220mm

Fork Thickness

65mm

Free Lift / Free Fork Height

195mm

Mast / Lift Height (standard / Options)

3000mm

Height — Overhead Guard

2428mm

Length To Fork Face / Overall Length

3500mm

Overall Width / Chassis Width Front

2020mm

Wheelbase

2300mm

Ground Clearance (min)

200mm

Tire Type

Pneumatic

Tyre Size — Front

8.25-15-14PR

Tyre Size — Rear

8.25-15-14PR

Tread Width (front / Rear)

1474 / 1730mm

Liugong CPD70-EH Forklift

Liugong CPD70-EH Forklift

Get Latest Price
Rating
4.4

Battery Rating (standard)

308 / 228 V / Ah

Power Type

Electric

Drive Motor/ Engine Power

58kW

Rated Power

-

Displacement

-

Cylinders

-

Emission Compliance

-

Heavy Duty Battery

-

Electronic Controller / Motor Controller

Permanent magnet synchronization

Transmission Type

-

Travel Speed (loaded / Unloaded)

25 / 26km/h

Lifting Speed (loaded / Unloaded)

510 / 530mm/s

Lowering Speed (loaded / Unloaded)

450 / 400mm/s

Max. Drawbar Pull

28 / 25kN

Max. Gradeability

-

Service Brake

Foot / Hyd

Parking Brake

Hand / Mech

Steering Type

-

Minimum Turning Radius (as Listed)

-

Turning Radius (min. Outside, As Listed)

3300mm

Load Capacity / Rated Load

7000kg

Load Center

600mm

Service Weight / Self Weight

9880kg

Weight Distribution — With Load (front / Rear)

15119 / 1836kg

Weight Distribution — Without Load (front / Rear)

4459 / 5421kg

Hydraulic Motor

Work pump motor power: 28 + 28 kW

Operating Pressure (attachments)

-

Fork Dimensions (l × W × T)

1220 × 150 × 65mm

Fork Length

1220mm

Fork Thickness

65mm

Free Lift / Free Fork Height

195mm

Mast / Lift Height (standard / Options)

3000mm

Height — Overhead Guard

2428mm

Length To Fork Face / Overall Length

3500mm

Overall Width / Chassis Width Front

2020mm

Wheelbase

2300mm

Ground Clearance (min)

200mm

Tire Type

Pneumatic

Tyre Size — Front

8.25-15-14PR

Tyre Size — Rear

8.25-15-14PR

Tread Width (front / Rear)

1474 / 1730mm

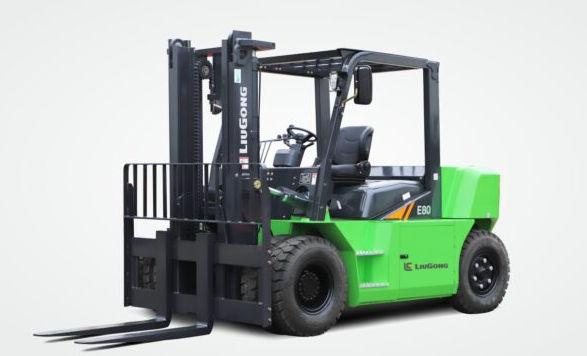

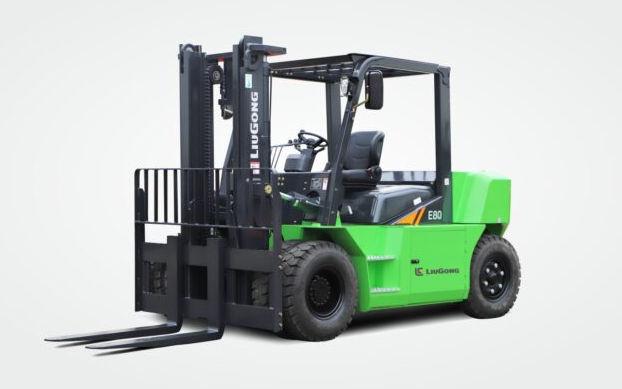

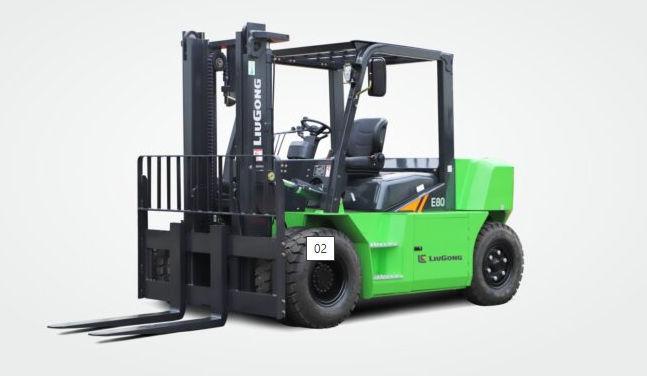

Liugong CPD80-EH Forklift

Liugong CPD80-EH Forklift

Get Latest Price
Rating
4.4

Battery Rating (standard)

308 / 228 V / Ah

Power Type

Electric

Drive Motor/ Engine Power

58kW

Rated Power

-

Displacement

-

Cylinders

-

Emission Compliance

-

Heavy Duty Battery

-

Electronic Controller / Motor Controller

-

Transmission Type

-

Travel Speed (loaded / Unloaded)

25 / 26km/h

Lifting Speed (loaded / Unloaded)

510 / 530mm/s

Lowering Speed (loaded / Unloaded)

450 / 400mm/s

Max. Drawbar Pull

27 / 25kN

Max. Gradeability

-

Service Brake

Foot / Hyd

Parking Brake

Hand / Mech

Steering Type

-

Minimum Turning Radius (as Listed)

-

Turning Radius (min. Outside, As Listed)

3533mm

Load Capacity / Rated Load

8000kg

Load Center

600mm

Service Weight / Self Weight

10860kg

Weight Distribution — With Load (front / Rear)

16582 / 2533kg

Weight Distribution — Without Load (front / Rear)

4932 / 6468kg

Hydraulic Motor

Work pump motor power: 28 + 28 kW

Operating Pressure (attachments)

-

Fork Dimensions (l × W × T)

1220 × 150 × 70mm

Fork Length

1220mm

Fork Thickness

70mm

Free Lift / Free Fork Height

195mm

Mast / Lift Height (standard / Options)

3000mm

Height — Overhead Guard

2428mm

Length To Fork Face / Overall Length

3561mm

Overall Width / Chassis Width Front

2020mm

Wheelbase

2300mm

Ground Clearance (min)

200mm

Tire Type

Pneumatic

Tyre Size — Front

8.25-15-16PR

Tyre Size — Rear

8.25-15-16PR

Tread Width (front / Rear)

1474 / 1730mm
