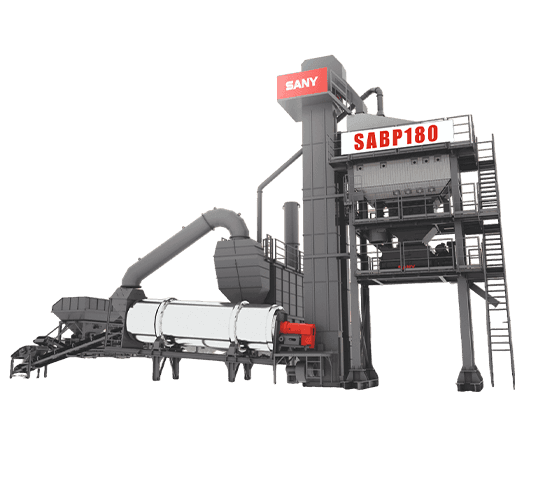

Sany SABP180 Asphalt Batching Plant
The Sany SABP180 Asphalt Batching Plant is engineered for high-capacity asphalt production, delivering a robust output range of 160–180 TPH. Designed for speed and efficiency, it reduces preparation time by 1 hour, allowing contractors to accelerate project timelines without compromising quality. Its advanced combustion system enhances fuel efficiency by 10%, making it a cost-effective choice for large-scale paving jobs. With durable components and intelligent automation, the SABP180 ensures consistent mixing performance across demanding applications such as highways, airports, and industrial roads. Whether you're managing government infrastructure or private sector development, this plant provides the reliability and performance needed to meet tight schedules. It’s the perfect blend of capacity, economy, and uptime for today’s fast-paced asphalt operations.
Sany SABP180 Asphalt Batching Plant
The Sany SABP180 Asphalt Batching Plant is engineered for high-capacity asphalt production, delivering a robust output range of 160–180 TPH. Designed for speed and efficiency, it reduces preparation time by 1 hour, allowing contractors to accelerate project timelines without compromising quality. Its advanced combustion system enhances fuel efficiency by 10%, making it a cost-effective choice for large-scale paving jobs. With durable components and intelligent automation, the SABP180 ensures consistent mixing performance across demanding applications such as highways, airports, and industrial roads. Whether you're managing government infrastructure or private sector development, this plant provides the reliability and performance needed to meet tight schedules. It’s the perfect blend of capacity, economy, and uptime for today’s fast-paced asphalt operations.
Product Description
The Sany SABP180 Asphalt Batching Plant is engineered for high-capacity asphalt production, deliveri...
View the full brochure
Sany SABP180 Asphalt Batching Plant Comparison with Similar Asphalt Batching Plant
Sany SABP180 Asphalt Batching Plant
Plant Type
SABP180
Max Production Capacity
180TPH
Batch Size
2300kg
Cycle Time
-
Dryer Drum Diameter
9m
Dryer Drum Length
42m
Burner Capacity
14MW
Fuel Type
Fuel oil
Hot Mix Storage Silo Capacity
25T
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
10m³
Collecting Belt Width
500mm
Inclined Belt Width
650mm
Hot Aggregate Elevator Capacity
-
Screening Method
Vibrating Screen
No. Of Decks
4
Screening Capacity
-
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5
Aggregate Weighing Capacity
-
Filler Weighing Capacity
-
Bitumen Weighing Capacity
-
Mixer Type
Standard
Mixer Capacity
2300kg
Mixing Time
-
Primary Pollution Control
Dedust system
Secondary Pollution Control
-
Filter Surface Area
480m²
Emission Level
-
Bitumen Tank Capacity
60m³
Bitumen Pump Type
-
Thermal Oil System Capacity
500000kcal/h
Automation System
SYMC
Remote Monitoring
Y
Sany SABP145 Asphalt Batching Plant
Plant Type
SABP145
Max Production Capacity
145TPH
Batch Size
1700kg
Cycle Time
-
Dryer Drum Diameter
1.8m
Dryer Drum Length
7m
Burner Capacity
10MW
Fuel Type
-
Hot Mix Storage Silo Capacity
-
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
3m³
Collecting Belt Width
500mm
Inclined Belt Width
500mm
Hot Aggregate Elevator Capacity
-
Screening Method
-
No. Of Decks
4
Screening Capacity
-
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5
Aggregate Weighing Capacity
-
Filler Weighing Capacity
-
Bitumen Weighing Capacity
-
Mixer Type
Standard
Mixer Capacity
1700kg
Mixing Time
-
Primary Pollution Control
-
Secondary Pollution Control
-
Filter Surface Area
360m²
Emission Level
-
Bitumen Tank Capacity
60m³
Bitumen Pump Type
Thermal Oil System Capacity
500000kcal/h
Automation System
SYMC
Remote Monitoring
Y
Sany SABP120 Asphalt Batching Plant
Plant Type
SABP120
Max Production Capacity
120TPH
Batch Size
1700kg
Cycle Time
-
Dryer Drum Diameter
1.8m
Dryer Drum Length
7m
Burner Capacity
10MW
Fuel Type
Diesel
Hot Mix Storage Silo Capacity
-
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
8m³
Collecting Belt Width
500mm
Inclined Belt Width
500mm
Hot Aggregate Elevator Capacity
-
Screening Method
Vibrating Screen
No. Of Decks
4
Screening Capacity
-
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5
Aggregate Weighing Capacity
-
Filler Weighing Capacity
-
Bitumen Weighing Capacity
-
Mixer Type
-
Mixer Capacity
1700kg
Mixing Time
-
Primary Pollution Control
-
Secondary Pollution Control
Dedust system
Filter Surface Area
360m²
Emission Level
-
Bitumen Tank Capacity
30m³
Bitumen Pump Type
Asphalt Metering Pump
Thermal Oil System Capacity
500000kcal/h
Automation System
PLC supported by 1 CPU or more
Remote Monitoring
Y
Nilang ABP 200 Asphalt Batch Mix Plant
Plant Type
ABP 200
Max Production Capacity
200TPH
Batch Size
2500kg
Cycle Time
45seconds
Dryer Drum Diameter
2.1m
Dryer Drum Length
8m
Burner Capacity
14MW
Fuel Type
Diesel/LDO/Furnace Oil
Hot Mix Storage Silo Capacity
40 / 80T
Cold Feed Bins (no. Of Bins)
4 / 5
Cold Feed Bin Capacity
-
Collecting Belt Width
-
Inclined Belt Width
-
Hot Aggregate Elevator Capacity
220TPH
Screening Method
Inclined Liner Vibration
No. Of Decks
5
Screening Capacity
260TPH
Hot Aggregate Bin Capacity
-
No. Of Hot Aggregate Bins
5 + 1
Aggregate Weighing Capacity
3200kg
Filler Weighing Capacity
500kg
Bitumen Weighing Capacity
350kg
Mixer Type
Twin Shaft Hot Oil Jacketed
Mixer Capacity
2500kg
Mixing Time
-
Primary Pollution Control
Reverse Air Flow/Cyclonic Separator
Secondary Pollution Control
Bag House Filter Reverse Air Flow
Filter Surface Area
535m²
Emission Level
-
Bitumen Tank Capacity
20 / 30m³
Bitumen Pump Type
-
Thermal Oil System Capacity
600000 / 800000kcal/h
Automation System
Siemens PLC (SCADA optional)
Remote Monitoring
Available
Nilang ABP 120 Combat Asphalt Batch Mix Plant
Plant Type
Stationary
Max Production Capacity
140TPH
Batch Size
1500kg
Cycle Time
45seconds
Dryer Drum Diameter
1.8m
Dryer Drum Length
7.5m
Burner Capacity
12MW
Fuel Type
Diesel / LDO / Furnace Oil
Hot Mix Storage Silo Capacity
15 / 50 / 100T
Cold Feed Bins (no. Of Bins)
4
Cold Feed Bin Capacity
30m³
Collecting Belt Width
-
Inclined Belt Width
-
Hot Aggregate Elevator Capacity
140TPH
Screening Method
Vibratory (inferred)
No. Of Decks
2
Screening Capacity
140TPH
Hot Aggregate Bin Capacity
T
No. Of Hot Aggregate Bins
4
Aggregate Weighing Capacity
2000kg
Filler Weighing Capacity
300kg
Bitumen Weighing Capacity
225kg
Mixer Type
Twin Shaft Hot Oil Jacketed
Mixer Capacity
1500kg
Mixing Time
seconds
Primary Pollution Control
Reverse Air Flow Centrifugal Cyclonic Pre Separator
Secondary Pollution Control
Bag House Filter (Reverse Air Flow)
Filter Surface Area
300m²
Emission Level
-
Bitumen Tank Capacity
30m³
Bitumen Pump Type
-
Thermal Oil System Capacity
500000kcal/h
Automation System
Siemens PLC (SCADA on Request)
Remote Monitoring
-
