Sany SMG200C-8 Motor Grader
Sany Heavy Industry India Private Limited
Karnataka

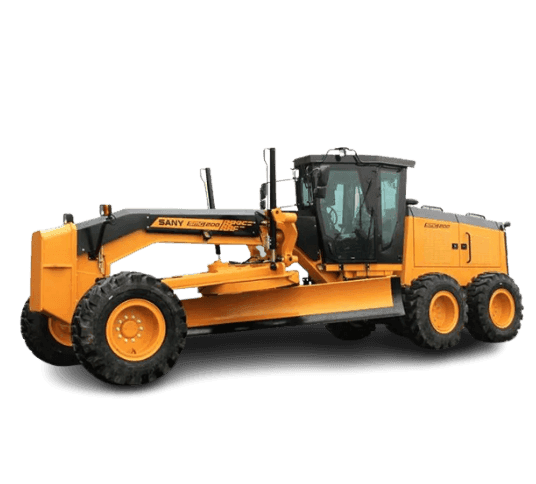

The SANY SMG200C-8 Motor Grader is a high-performance machine designed for demanding construction and engineering projects, including road building and heavy-duty earthmoving. Powered by a 250hp Cummins QSL9 Series EPA Tier 4 engine, it delivers exceptional productivity with precise throttle control and high horsepower. With a maximum operating weight of 20.76 tons, a drawbar pull of 114 kN, and a blade downforce of 104 kN, the SMG200C-8 excels in the toughest conditions, making it ideal for large-scale projects and mining applications. Its 4.27-meter blade ensures accurate grading, while the ergonomic cabin enhances operator comfort. This motor grader is engineered for efficiency, offering superior fuel economy and low emissions, making it a reliable and cost-effective choice for maximizing productivity and profitability.
Sany SMG200C-8 Motor Grader
Sany Heavy Industry India Private Limited
Karnataka
The SANY SMG200C-8 Motor Grader is a high-performance machine designed for demanding construction and engineering projects, including road building and heavy-duty earthmoving. Powered by a 250hp Cummins QSL9 Series EPA Tier 4 engine, it delivers exceptional productivity with precise throttle control and high horsepower. With a maximum operating weight of 20.76 tons, a drawbar pull of 114 kN, and a blade downforce of 104 kN, the SMG200C-8 excels in the toughest conditions, making it ideal for large-scale projects and mining applications. Its 4.27-meter blade ensures accurate grading, while the ergonomic cabin enhances operator comfort. This motor grader is engineered for efficiency, offering superior fuel economy and low emissions, making it a reliable and cost-effective choice for maximizing productivity and profitability.
Product Description
The SANY SMG200C-8 Motor Grader is a high-performance machine designed for demanding construction an...
View the full brochure
Sany SMG200C-8 Motor Grader Comparison with Similar Motor Grader
Sany SMG200C-8 Motor Grader
Engine Power
250HP
Max Torque
1085Nm
Rated Speed
2200rpm
Displacement
9.1L
Engine Brand
Cummins
Engine Model
QSL9
Fuel Tank Capacity
340L
Transmission Type
-
Number Of Gears (fwd/rev)
8F/6R
Max Travel Speed
48km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
22°
Oscillation Angle
16°
Turning Radius
7.5m
Operating Weight
17.96Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.554m
Overall Width
2.725m
Overall Height
3.498m
Ground Clearance
370mm
Blade Length
4.270m
Blade Height
0.620m
Max Lift Above Ground
0.480m
Max Depth Of Cut
0.715m
Blade Tilt Angle
10°
Blade Pitch Angle
5–40°
Blade Rotation Angle
360°
Liugong CLG 414 BSIII Motor Grader
Engine Power
150HP
Max Torque
655Nm
Rated Speed
2200rpm
Displacement
-
Engine Brand
CUMMINS INDIA
Engine Model
6BTAA5.9
Fuel Tank Capacity
250L
Transmission Type
Power Shift
Number Of Gears (fwd/rev)
6F/3R
Max Travel Speed
41km/h
Service Brake Type
Shoe
Parking Brake Type
Shoe
Steering Type
Full hydraulic steering
Steering Angle
90°
Oscillation Angle
30°
Turning Radius
7.2m
Operating Weight
14.3Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
180Bar
Overall Length
9.21m
Overall Width
3.4m
Overall Height
3.66m
Ground Clearance
575mm
Blade Length
3.66m
Blade Height
0.61m
Max Lift Above Ground
0.485m
Max Depth Of Cut
0.575m
Blade Tilt Angle
70°
Blade Pitch Angle
-
Blade Rotation Angle
90°
Sany STG210C-10 Motor Grader
Engine Power
225HP
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.7L
Engine Brand
Cummins
Engine Model
QSB6.7
Fuel Tank Capacity
350L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Operating Weight
15.35Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Blade Rotation Angle
360°
FINE 585HD Motor Grader
Engine Power
130HP
Max Torque
480Nm
Rated Speed
2200rpm
Displacement
3.84L
Engine Brand
Ashok Leyland
Engine Model
-
Fuel Tank Capacity
140L
Transmission Type
Power - Shift Transmission (AVTECH)
Number Of Gears (fwd/rev)
2 Forward / 2 Reverse
Max Travel Speed
20km/h
Service Brake Type
Foot pedal operated hydraulic brake through master cylinder
Parking Brake Type
Spring Applied Hydraulic Release (SAHR)
Steering Type
Hydraulic Power Steering
Steering Angle
45°
Oscillation Angle
20°
Turning Radius
10.26m
Operating Weight
9.495Ton
Front Axle Load
2710kg
Rear Axle Load
6750kg
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
220Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Blade Length
3.05m
Blade Height
0.494m
Max Lift Above Ground
0.46m
Max Depth Of Cut
-
Blade Tilt Angle
40° Forward / 5° Backward°
Blade Pitch Angle
-
Blade Rotation Angle
360°
CASE 865C VHP Motor Grader
Engine Power
220HP
Max Torque
930Nm
Rated Speed
2200rpm
Displacement
6.7L
Engine Brand
FPT
Engine Model
F4HE613B*W002
Fuel Tank Capacity
380L
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
Disc, bathed in oil
Parking Brake Type
-
Steering Type
Hydrostatic power steering
Steering Angle
25°
Oscillation Angle
20°
Turning Radius
-
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
186L/min
Hydraulic Pressure
175Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
0.58 (front) mm
Blade Length
3.962m
Blade Height
0.622 m
Max Lift Above Ground
0.4445m
Max Depth Of Cut
0.7112m
Blade Tilt Angle
-
Blade Pitch Angle
87°
Blade Rotation Angle
360 °
