Sany SPS0608DC Scissor Lift

The SANY SPS0608DC Scissor Lift is a compact, electric-powered aerial platform designed for safe and efficient work at heights. With a maximum working height of 7.6 meters and a platform height of 5.6 meters, it is ideal for indoor maintenance, installation, and inspection tasks. Its slim 0.81-meter width allows easy navigation through tight spaces, making it perfect for warehouses, retail stores, and industrial units. The lift supports a maximum load of 230 kg and includes an extension deck for added reach with a 113 kg capacity. Featuring solid non-marking tires, a tight turning radius of just 0.4 meters, and gradeability of 25%, it delivers superior maneuverability on smooth surfaces. Dual 12V batteries and an AC100–240V charger ensure consistent performance with minimal downtime.

Product Description

The SANY SPS0608DC Scissor Lift is a compact, electric-powered aerial platform designed for safe and...

Sany SPS0608DC Scissor Lift Comparison with Similar Scissor Lift

Sany SPS0608DC Scissor Lift

Sany SPS0608DC Scissor Lift

Get Latest Price
Rating
4.4

Battery Type

Lead-acid

Battery Voltage / Capacity

24V / 230Ah

Charger Input Voltage

AC100~240V

Charger Output / Type

-

Charge Time (standard)

-

Drive Type

Electric

Max Travel Speed (stowed)

4.0km/h

Travel Speed (raised)

0.8km/h

Gradeability

25%

Lift Time (loaded)

-

Lower Time (loaded)

-

Service Brake Type

-

Steering Type

-

Turning Radius (inside)

0.4m

Turning Radius (outside)

1.7m

Operating Weight

1.25Ton

Max Platform Capacity

230kg

Extension Deck Capacity

113kg

Max Platform Occupants (in/out)

2/0persons

Hydraulic Oil Capacity

-

Hydraulic Pressure

-

Overall Length (stowed)

1.54m

Overall Width

0.81m

Overall Height (rails Raised)

2.12m

Overall Height (rails Lowered)

1.80m

Wheelbase

1.13m

Ground Clearance (stowed)

0.06m

Max Platform Height

5.60m

Max Working Height

7.60m

Platform Size (l×w)

1.3×0.72m

Platform Extension Length

-

Platform Railing Height

1.21m

Max Side Slope (lateral)

1.5°

Max Slope (fore/aft)

Max Wind Speed (outdoor Use)

-

Tilt Sensor

Yes

Tires

Ø250mm×80mm

Tyre Type

Solid non-marking

Platform Control System

-

Currently Viewing
Sany SPS0407DC Scissor Lift

Sany SPS0407DC Scissor Lift

Get Latest Price
Rating
4.4

Battery Type

Lead Acid

Battery Voltage / Capacity

24V / 115Ah (2×12V)

Charger Input Voltage

100–240V AC

Charger Output / Type

-

Charge Time (standard)

-

Drive Type

Electric Drive

Max Travel Speed (stowed)

4km/h

Travel Speed (raised)

0.8km/h

Gradeability

25%

Lift Time (loaded)

-

Lower Time (loaded)

-

Service Brake Type

-

Steering Type

Electric

Turning Radius (inside)

0.4m

Turning Radius (outside)

1.6m

Operating Weight

0.945Ton

Max Platform Capacity

240kg

Extension Deck Capacity

120kg

Max Platform Occupants (in/out)

-

Hydraulic Oil Capacity

-

Hydraulic Pressure

-

Overall Length (stowed)

1.47 (w/ ladder)m

Overall Width

0.76m

Overall Height (rails Raised)

1.99m

Overall Height (rails Lowered)

1.68m

Wheelbase

1.06m

Ground Clearance (stowed)

0.06m

Max Platform Height

4.5m

Max Working Height

6.5m

Platform Size (l×w)

1.3 × 0.72m

Platform Extension Length

0.6m

Platform Railing Height

1.21m

Max Side Slope (lateral)

1.5°

Max Slope (fore/aft)

3.0°

Max Wind Speed (outdoor Use)

-

Tilt Sensor

Yes

Tires

Ø250×80 mm

Tyre Type

Ø250×80 mm

Platform Control System

Manual

Sany SPS0608HD Scissor Lift

Sany SPS0608HD Scissor Lift

Get Latest Price
Rating
4.4

Battery Type

Lead Acid

Battery Voltage / Capacity

2 × 12V / 155Ah

Charger Input Voltage

AC100~240V

Charger Output / Type

-

Charge Time (standard)

-

Drive Type

Hydraulic

Max Travel Speed (stowed)

3.0km/h

Travel Speed (raised)

0.8km/h

Gradeability

25%

Lift Time (loaded)

-

Lower Time (loaded)

-

Service Brake Type

-

Steering Type

-

Turning Radius (inside)

0.4m

Turning Radius (outside)

1.7m

Operating Weight

1.36Ton

Max Platform Capacity

250kg

Extension Deck Capacity

120kg

Max Platform Occupants (in/out)

2/0persons

Hydraulic Oil Capacity

-

Hydraulic Pressure

-

Overall Length (stowed)

1.88m

Overall Width

0.81m

Overall Height (rails Raised)

2.15m

Overall Height (rails Lowered)

1.55m

Wheelbase

1.38m

Ground Clearance (stowed)

0.085m

Max Platform Height

5.8m

Max Working Height

7.8m

Platform Size (l×w)

1.71 × 0.74m

Platform Extension Length

0.6m

Platform Railing Height

1.12m

Max Side Slope (lateral)

1.5°

Max Slope (fore/aft)

Max Wind Speed (outdoor Use)

-

Tilt Sensor

Yes

Tires

Ø323mm × 100mm

Tyre Type

Solid non-marking

Platform Control System

-

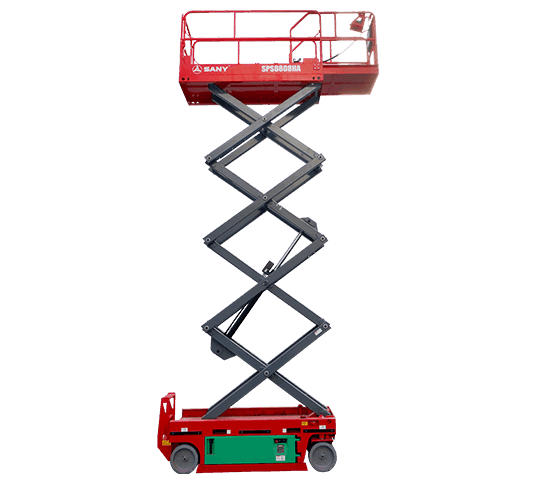

Sany SPS0608MHA Scissor Lift

Sany SPS0608MHA Scissor Lift

Get Latest Price
Rating
4.4

Battery Type

-

Battery Voltage / Capacity

4×6V/220Ah

Charger Input Voltage

AC100–240V

Charger Output / Type

-

Charge Time (standard)

-

Drive Type

Hydraulic

Max Travel Speed (stowed)

3.5km/h

Travel Speed (raised)

0.8km/h

Gradeability

25%

Lift Time (loaded)

-

Lower Time (loaded)

-

Service Brake Type

-

Steering Type

-

Turning Radius (inside)

0.4m

Turning Radius (outside)

1.7m

Operating Weight

1.55Ton

Max Platform Capacity

230kg

Extension Deck Capacity

120kg

Max Platform Occupants (in/out)

2/1persons

Hydraulic Oil Capacity

-

Hydraulic Pressure

-

Overall Length (stowed)

1.88m

Overall Width

0.81m

Overall Height (rails Raised)

2.15m

Overall Height (rails Lowered)

1.83m

Wheelbase

1.38m

Ground Clearance (stowed)

0.07m

Max Platform Height

6.0m

Max Working Height

8.0m

Platform Size (l×w)

1.7×0.74m

Platform Extension Length

-

Platform Railing Height

1.12m

Max Side Slope (lateral)

1.5°

Max Slope (fore/aft)

Max Wind Speed (outdoor Use)

-

Tilt Sensor

Yes

Tires

Ø323mm × 100mm

Tyre Type

Solid non-marking

Platform Control System

-

Sany SPS0808HA Scissor Lift

Sany SPS0808HA Scissor Lift

Get Latest Price
Rating
4.4

Battery Type

Lead Acid

Battery Voltage / Capacity

4×6V / 220Ah

Charger Input Voltage

AC100~240V

Charger Output / Type

-

Charge Time (standard)

-

Drive Type

Hydraulic

Max Travel Speed (stowed)

3.5km/h

Travel Speed (raised)

0.8km/h

Gradeability

25%

Lift Time (loaded)

-

Lower Time (loaded)

-

Service Brake Type

-

Steering Type

Front Wheel

Turning Radius (inside)

0.6m

Turning Radius (outside)

2.5m

Operating Weight

2.15Ton

Max Platform Capacity

250kg

Extension Deck Capacity

120kg

Max Platform Occupants (in/out)

2/0persons

Hydraulic Oil Capacity

-

Hydraulic Pressure

-

Overall Length (stowed)

2.49m

Overall Width

0.83m

Overall Height (rails Raised)

2.38m

Overall Height (rails Lowered)

1.89m

Wheelbase

1.87m

Ground Clearance (stowed)

0.1m

Max Platform Height

8.0m

Max Working Height

10.0m

Platform Size (l×w)

2.27 × 0.75m

Platform Extension Length

0.9m

Platform Railing Height

1.25m

Max Side Slope (lateral)

1.5

Max Slope (fore/aft)

-

Max Wind Speed (outdoor Use)

-

Tilt Sensor

-

Tires

-

Tyre Type

-

Platform Control System

-
