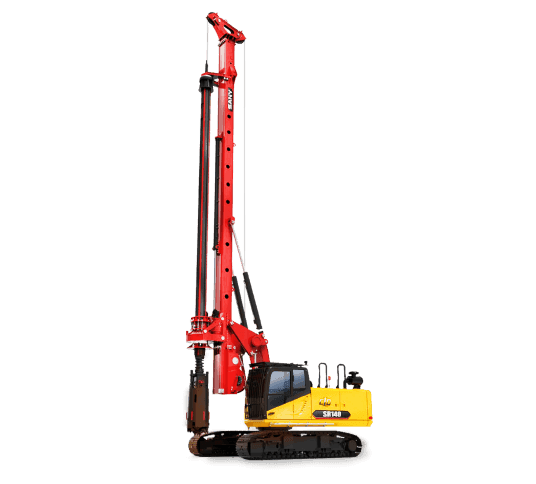

Sany SR140 Piling Machinery

Sany Heavy Industry India Private Limited

Maharashtra

The Sany SR140 Piling Machinery is a powerhouse in the construction industry, designed to handle demanding foundation projects with precision and efficiency. Featuring a maximum drilling depth of 45 meters and a torque capacity of 140 kN·m, it is perfectly suited for high-rise buildings, urban infrastructure, and industrial installations. Its robust crowd system delivers 120 kN of crowd force and 160 kN of line pull, ensuring excellent performance in diverse soil conditions. With a mast inclination range of 5° forward and 90° backward, it offers flexibility for complex projects. Powered by a reliable ISUZU 4HK1 engine compliant with China Stage III emissions, the SR140 combines eco-friendliness with power. Its compact transport dimensions and efficient design make it the preferred choice for construction professionals worldwide.

Product Description

The Sany SR140 Piling Machinery is a powerhouse in the construction industry, designed to handle dem...

View the full brochure

Sany SR140 Piling Machinery Comparison with Similar Piling Rig

Sany SR140 Piling Machinery

Sany SR140 Piling Machinery

Get Latest Price
Rating
4.4

Engine Brand

ISUZU

Engine Model

6HK1

Engine Power

213 kW

Rated Speed

2000rpm

Emission Standard

China Stage III

Engine Displacement

7.79L

Max Output Torque

140kN·m

Rotation Speed Range

6–45 rpm

High Speed Throwing Soil

-

Max. Drilling Diameter

1500mm

Max. Drilling Depth (interlocking Kelly)

45 m

Max. Drilling Depth (friction Kelly)

63m

Crowd Force (push)

120 kN

Crowd Force (pull)

370 kN

Stroke Length

3700mm

Max. Lifting Capacity

140kN

Max. Line Speed

75m/min

Wire Rope Diameter

30mm

Forward Tilt

5°

Backward Tilt

90°

Lateral Tilt

-

Track Shoe Width

600mm

Chassis Length

3960mm

Crawler Extension Width

3680mm

Swing Radius

-

Overall Height

16940mm

Transport Height

3986mm

Transport Width

2980mm

Operating Weight

46Ton

Max. Traction Force

-

Max. Travel Speed

-

Max. Gradeability

-

Friction Kelly Bar

⌀355×5×10 mm

Interlocking Kelly Bar

⌀355×4×10 mm
