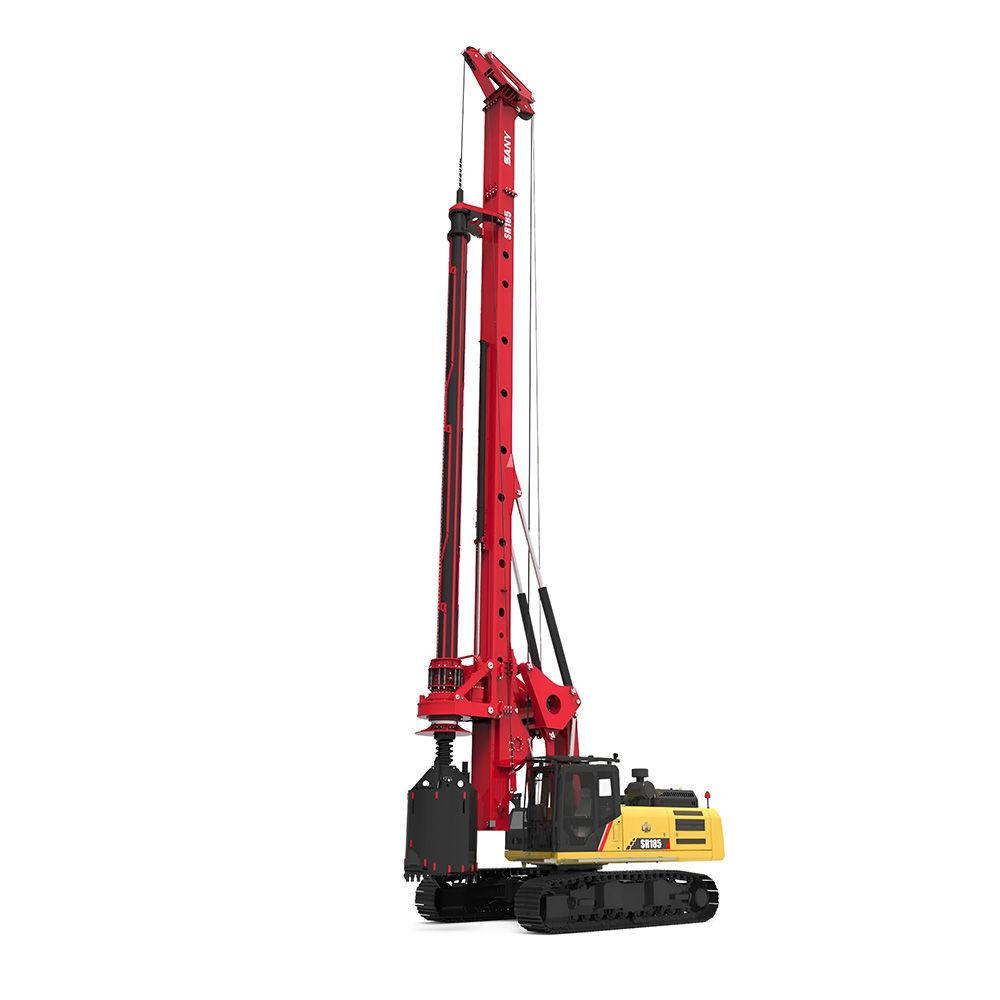

Sany SR185 C10 Piling Machine
Sany India
Uttar Pradesh
The SANY SR185 C10 piling rig is a powerhouse designed for deep foundation work in small to medium-diameter bores. Featuring a maximum drilling depth of 59 meters with friction kelly and 47 meters with interlocking kelly, it provides exceptional flexibility for various construction needs. The rig boasts a robust main winch lifting capacity of 185 kN and an auxiliary winch capacity of 80 kN, making it ideal for heavy lifting tasks. Its powerful 212 kW ISUZU engine ensures reliable performance, while the telescopic chassis and large diameter slewing bearings deliver high stability and precision in deep borehole operations. With a maximum drilling diameter of 1.8 meters, the SR185 C10 is well-suited for demanding civil infrastructure projects.
Sany SR185 C10 Piling Machine
Sany India
Uttar Pradesh
The SANY SR185 C10 piling rig is a powerhouse designed for deep foundation work in small to medium-diameter bores. Featuring a maximum drilling depth of 59 meters with friction kelly and 47 meters with interlocking kelly, it provides exceptional flexibility for various construction needs. The rig boasts a robust main winch lifting capacity of 185 kN and an auxiliary winch capacity of 80 kN, making it ideal for heavy lifting tasks. Its powerful 212 kW ISUZU engine ensures reliable performance, while the telescopic chassis and large diameter slewing bearings deliver high stability and precision in deep borehole operations. With a maximum drilling diameter of 1.8 meters, the SR185 C10 is well-suited for demanding civil infrastructure projects.
Product Description
The SANY SR185 C10 piling rig is a powerhouse designed for deep foundation work in small to medium-d...
Sany SR185 C10 Piling Machine Comparison with Similar Piling Rig
Sany SR185 C10 Piling Machine
Engine Model
6HK1
Emission Standard
COMⅢ
Engine Displacement
7.79L
Max Output Torque
190kN·m
Backward Tilt
90°
Lateral Tilt
±3 °
Track Shoe Width
700 mm
Chassis Length
6380mm
Max. Gradeability
-
Friction Kelly Bar
Φ406×5×13 mm
Interlocking Kelly Bar
Φ406×4×13 mm
Engine Brand
ISUZU
Engine Power
212kW
Rated Speed
2000rpm
Rotation Speed Range
5–34 rpm
High Speed Throwing Soil
-
Max. Drilling Diameter
1800mm
Max. Drilling Depth (interlocking Kelly)
47m
Max. Drilling Depth (friction Kelly)
59m
Crowd Force (push)
180kN
Crowd Force (pull)
180kN
Stroke Length
4200mm
Max. Lifting Capacity
80kN
Max. Line Speed
75m/min
Wire Rope Diameter
20mm
Forward Tilt
5°
Crawler Extension Width
4150 mm
Swing Radius
3805 mm
Overall Height
21040mm
Transport Height
3560mm
Transport Width
3210mm
Operating Weight
63Ton
Max. Traction Force
-
Max. Travel Speed
-
