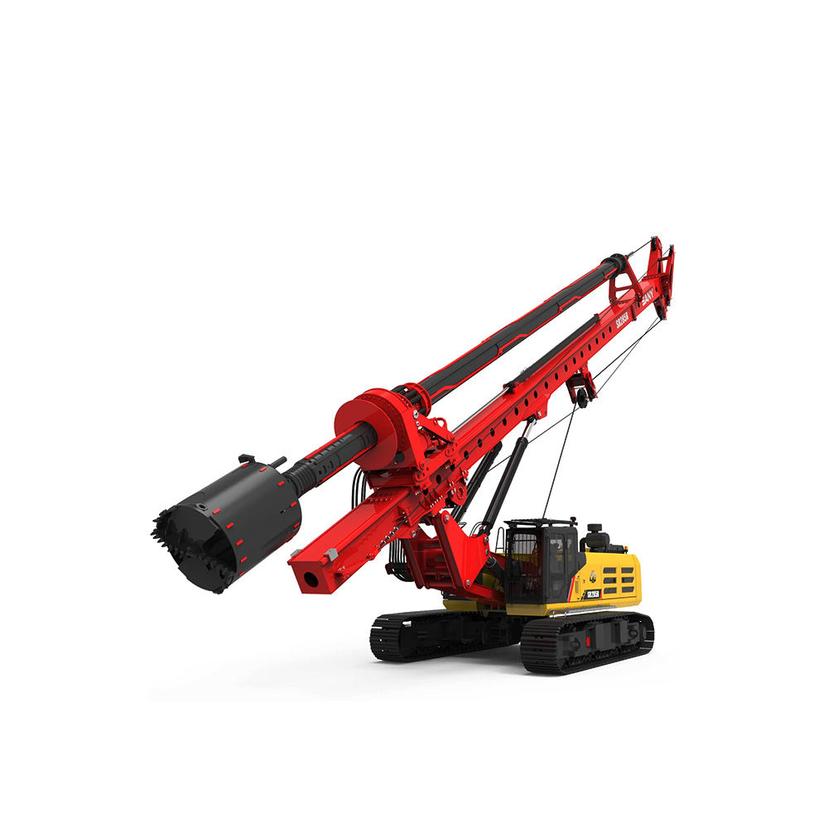

The SANY SR285R C10 rotary drilling rig is a high-performance solution for demanding drilling projects. Equipped with a powerful ISUZU engine delivering 300 kW @ 1800 RPM, this rig excels in hard soil conditions. It features a newly upgraded sixth-generation Kelly bar integral locking device for enhanced reliability and precision. With a maximum pile diameter of 2300 mm and drilling depths up to 94 meters, the SR285R C10 is ideal for large-scale civil engineering projects, including expressways, bridges, and high-rise buildings. Its robust performance and adaptability make it a preferred choice for deep foundation work, offering exceptional drilling capabilities and efficiency across various challenging environments.
Sany SR285R C10 Piling Machine
Sany Heavy Industry India Private Limited
Madhya Pradesh
The SANY SR285R C10 rotary drilling rig is a high-performance solution for demanding drilling projects. Equipped with a powerful ISUZU engine delivering 300 kW @ 1800 RPM, this rig excels in hard soil conditions. It features a newly upgraded sixth-generation Kelly bar integral locking device for enhanced reliability and precision. With a maximum pile diameter of 2300 mm and drilling depths up to 94 meters, the SR285R C10 is ideal for large-scale civil engineering projects, including expressways, bridges, and high-rise buildings. Its robust performance and adaptability make it a preferred choice for deep foundation work, offering exceptional drilling capabilities and efficiency across various challenging environments.
Product Description
The SANY SR285R C10 rotary drilling rig is a high-performance solution for demanding drilling projec...
Sany SR285R C10 Piling Machine Comparison with Similar Piling Rig
Sany SR285R C10 Piling Machine
Engine Brand
ISUZU
Engine Model
6WG1
Engine Power
300 kW
Rated Speed
1800rpm
Emission Standard
COMⅢ/R96
Engine Displacement
15.68L
Max Output Torque
285kN·m
Rotation Speed Range
5–24 rpm
High Speed Throwing Soil
-
Max. Drilling Diameter
2300mm
Max. Drilling Depth (interlocking Kelly)
61m
Max. Drilling Depth (friction Kelly)
94m
Crowd Force (push)
260 kN
Crowd Force (pull)
335kN
Stroke Length
6000mm
Max. Lifting Capacity
90kN
Max. Line Speed
70m/min
Wire Rope Diameter
20 mm
Forward Tilt
5 °
Backward Tilt
90°
Lateral Tilt
±4 °
Track Shoe Width
800 mm
Chassis Length
7475mm
Crawler Extension Width
4760mm
Swing Radius
4530mm
Overall Height
25425mm
Transport Height
3690mm
Transport Width
3490mm
Operating Weight
100Ton
Max. Traction Force
-
Max. Travel Speed
-
Max. Gradeability
-
Friction Kelly Bar
Φ508×6×16 Φ508×6×17 mm
Interlocking Kelly Bar
Φ508×3×15 Φ508×4×16 Φ508×4×17mm
