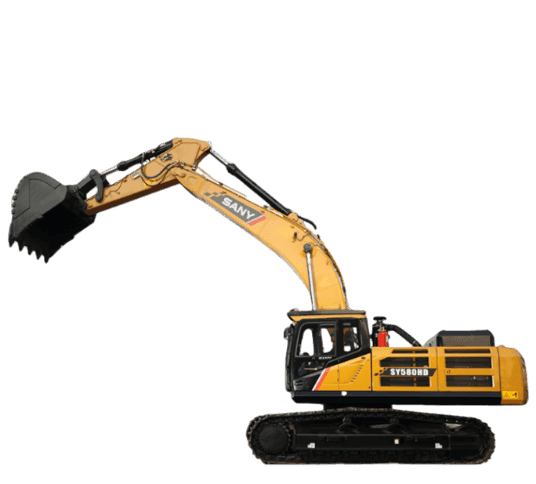

Sany SY580C-10HD Crawler Excavator
Sany Heavy Industry India Private Limited
Rajasthan
The SANY SY580C-10HD Crawler Excavator is a robust 50-ton hydraulic excavator engineered for heavy-load tasks in mining and large-scale infrastructure projects such as expressways, airports, bridges, and water conservancy. Powered by a 403 hp Isuzu engine and featuring a 7.00-meter boom with a 2.80-meter arm, it offers a maximum digging reach of 11.48 meters and a depth of 7.09 meters, making it ideal for challenging excavation tasks. Equipped with versatile bucket options, including 3.6 GP, 3.1 GP, and 2.5 HD, the SY580C-10HD ensures adaptability to various site requirements. Its customized engine, fast digging speed, low energy loss, and auto-deceleration system maximize efficiency and ROI, while the remote monitoring system enhances reliability through real-time performance tracking and fault diagnosis.
Sany SY580C-10HD Crawler Excavator
Sany Heavy Industry India Private Limited
Rajasthan
The SANY SY580C-10HD Crawler Excavator is a robust 50-ton hydraulic excavator engineered for heavy-load tasks in mining and large-scale infrastructure projects such as expressways, airports, bridges, and water conservancy. Powered by a 403 hp Isuzu engine and featuring a 7.00-meter boom with a 2.80-meter arm, it offers a maximum digging reach of 11.48 meters and a depth of 7.09 meters, making it ideal for challenging excavation tasks. Equipped with versatile bucket options, including 3.6 GP, 3.1 GP, and 2.5 HD, the SY580C-10HD ensures adaptability to various site requirements. Its customized engine, fast digging speed, low energy loss, and auto-deceleration system maximize efficiency and ROI, while the remote monitoring system enhances reliability through real-time performance tracking and fault diagnosis.
Product Description
The SANY SY580C-10HD Crawler Excavator is a robust 50-ton hydraulic excavator engineered for heavy-l...
View the full brochure
Sany SY580C-10HD Crawler Excavator Comparison with Similar Crawler Excavator

Sany SY580C-10HD Crawler Excavator
Engine Brand
ISUZU
Engine Model
6WG1X
Engine Power
403HP
Max Torque
1950Nm
Rated Speed
1800rpm
Displacement
15.68L
Fuel Tank Capacity
680L
Hydraulic Flow Rate
2 X 396L/min
Hydraulic Pressure (implement Circuit)
349.76kgf/cm²
Hydraulic Pressure (swing Circuit)
274.30kgf/cm²
Hydraulic Pressure (travel Circuit)
320.19kgf/cm²
Hydraulic Pressure (pilot Circuit)
39.76kgf/cm²
Operating Weight
52Ton
Ground Pressure (600mm Track)
0.88kgf/cm²
Max Digging Depth
7.09m
Max Reach At Ground
11.48m
Max Dumping Height
7.255m
Bucket Capacity
2.5-3.6m³
Bucket Breakout Force
27532.3kgf
Arm Crowd Force
24881.1kgf
Overall Length
12.07m
Overall Width
3.36m
Overall Height
3.70m
Ground Clearance
560mm

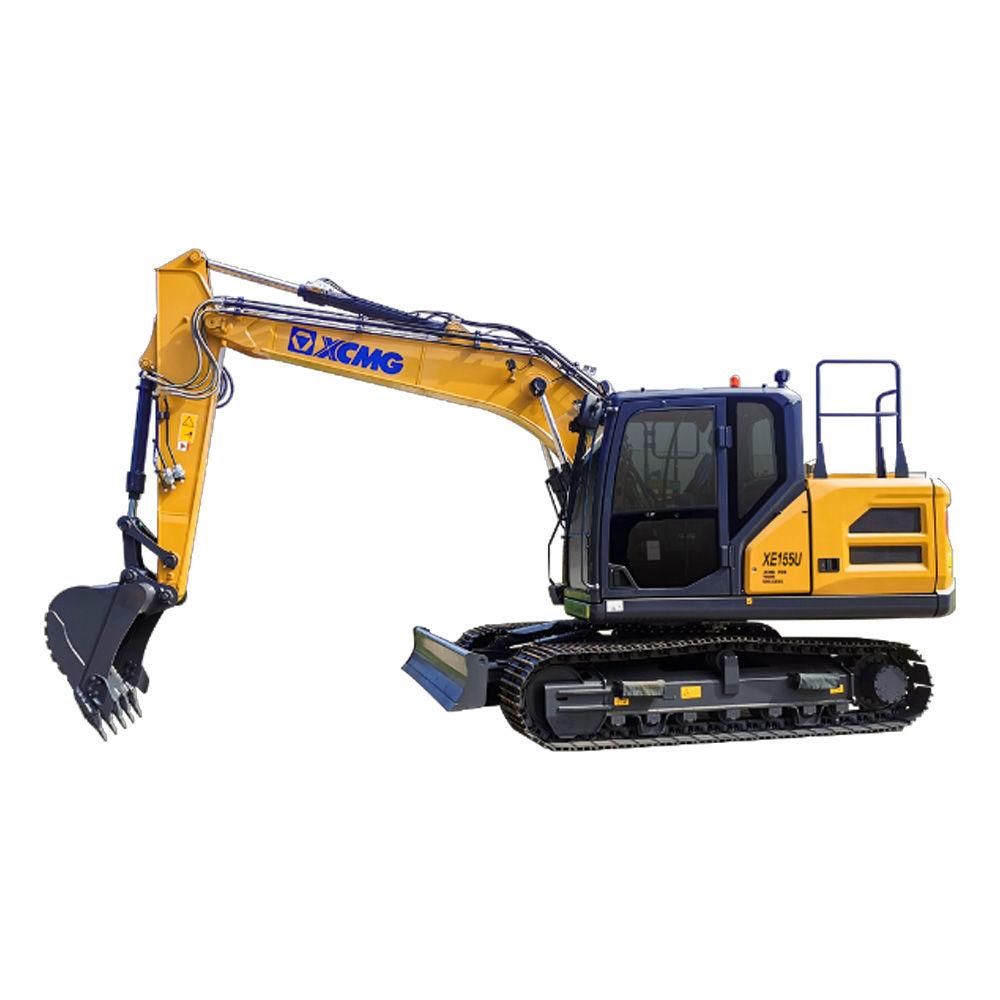

XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
17.5Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm

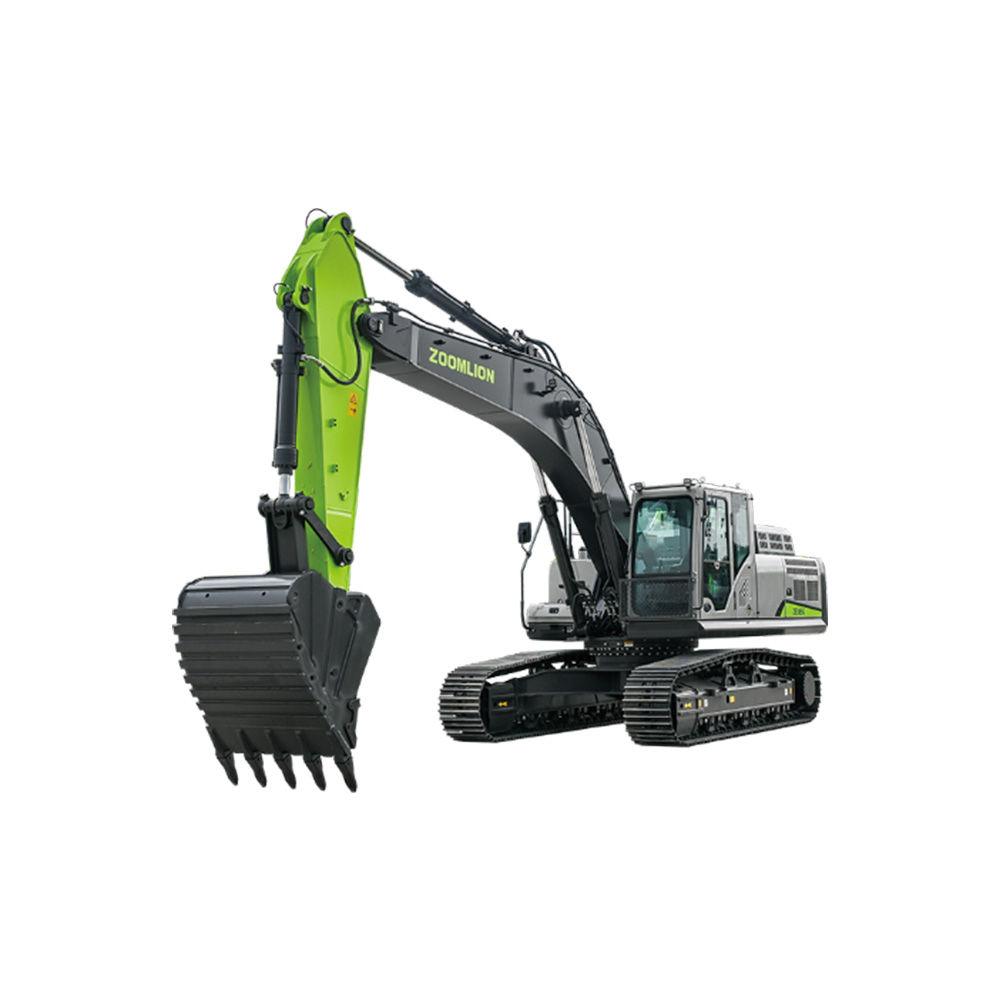

Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
38Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-

Liugong 965E HD Crawler Excavator
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
62.6Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Arm Crowd Force
30591.5kgf
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm

Sany SY210 SPARC + Crawler Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
