Tata Hitachi EX 215LC Prime Hydraulic Excavator
Tata Hitachi Construction Machinery Company Private Ltd
Delhi

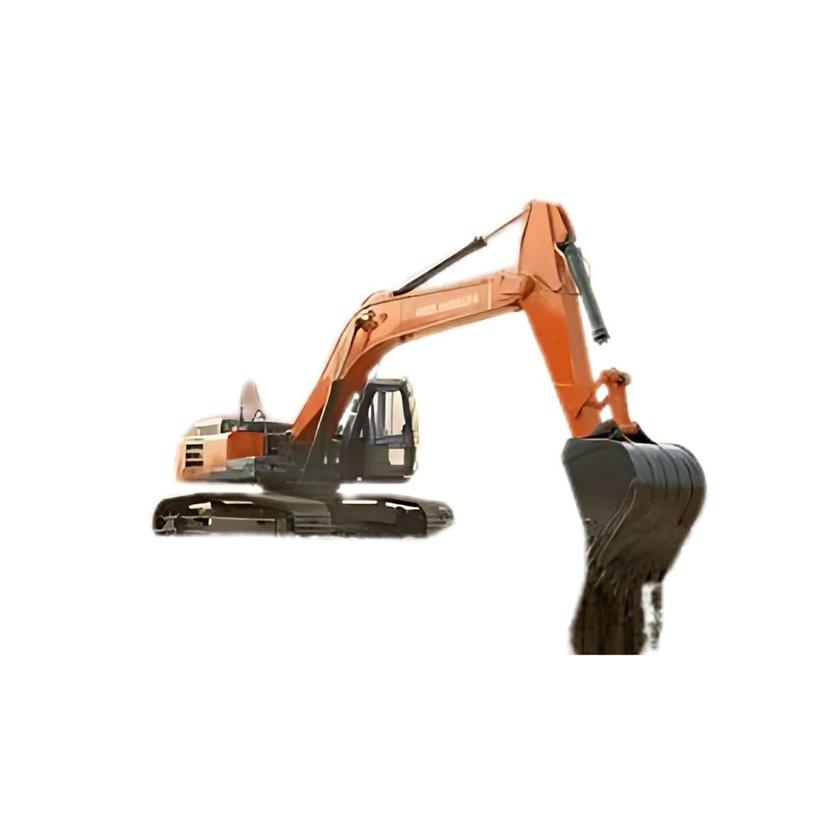

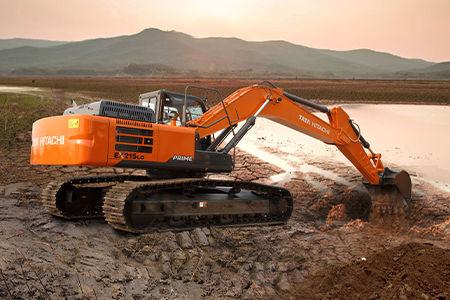

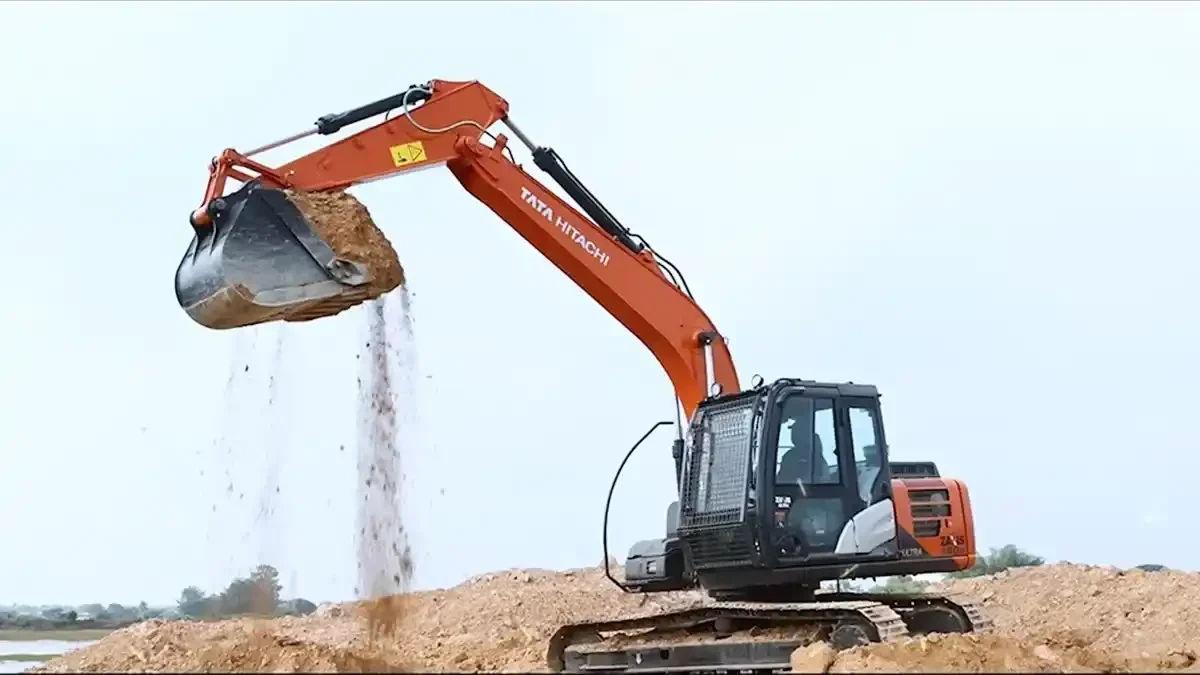

The Tata Hitachi EX 215LC Prime Hydraulic Excavator is a powerful 20-ton class machine designed for high performance, low fuel consumption, and unmatched reliability in tough jobsite conditions. Equipped with advanced iOHS Japanese hydraulics, a fuel-saving pump, and three work modes, it delivers excellent productivity and precision control. Its low maintenance features, like a cyclonic air pre-cleaner, extended service intervals, and durable hydraulic components, significantly reduce operating costs. Operators benefit from an ergonomic cabin with smooth levers, a 7" TFT LCD monitor, air lumbar support, and a USB/FM/Bluetooth audio system for maximum comfort. Safety is prioritized with features like anti-skid tapes, seat belts, and a starter motor with thermal cut-off. Built for performance and comfort, it ensures maximum ROI across construction, mining, and infrastructure projects.
Tata Hitachi EX 215LC Prime Hydraulic Excavator
Tata Hitachi Construction Machinery Company Private Ltd
Delhi
The Tata Hitachi EX 215LC Prime Hydraulic Excavator is a powerful 20-ton class machine designed for high performance, low fuel consumption, and unmatched reliability in tough jobsite conditions. Equipped with advanced iOHS Japanese hydraulics, a fuel-saving pump, and three work modes, it delivers excellent productivity and precision control. Its low maintenance features, like a cyclonic air pre-cleaner, extended service intervals, and durable hydraulic components, significantly reduce operating costs. Operators benefit from an ergonomic cabin with smooth levers, a 7" TFT LCD monitor, air lumbar support, and a USB/FM/Bluetooth audio system for maximum comfort. Safety is prioritized with features like anti-skid tapes, seat belts, and a starter motor with thermal cut-off. Built for performance and comfort, it ensures maximum ROI across construction, mining, and infrastructure projects.
Product Description
The Tata Hitachi EX 215LC Prime Hydraulic Excavator is a powerful 20-ton class machine designed for ...
View the full brochure
Tata Hitachi EX 215LC Prime Hydraulic Excavator Comparison with Similar Mini Excavators

Tata Hitachi EX 215LC Prime Hydraulic Excavator
Engine Brand
Cummins
Engine Model
6BT5.9
Engine Power
140HP
Max Torque
565.84Nm
Rated Speed
2000rpm
Displacement
-
Fuel Tank Capacity
300L
Hydraulic Flow Rate
462L/min
Hydraulic Pressure (implement Circuit)
285kgf/cm²
Hydraulic Pressure (swing Circuit)
275kgf/cm²
Hydraulic Pressure (travel Circuit)
350kgf/cm²
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Max Digging Depth
5.910m
Max Reach At Ground
9.060m
Max Digging Height
8.990m
Max Dumping Height
6.230m
Bucket Capacity
0.5m³
Bucket Breakout Force
12250kgf
Arm Crowd Force
11700kgf
Overall Length
-
Overall Height
-
Ground Clearance
-
Operating Weight
20.80Ton

Sany SY20U Mini Excavator
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Overall Length
3.515m
Overall Height
2.49m
Ground Clearance
160mm
Operating Weight
1.95Ton

JCB 37C Mini Excavator
Engine Brand
JCB
Engine Model
Perkins 403J-17
Engine Power
25.3HP
Max Torque
91.9Nm
Rated Speed
-
Displacement
1.662L
Fuel Tank Capacity
50L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
255kgf/cm²
Hydraulic Pressure (swing Circuit)
220kgf/cm²
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Max Digging Depth
3.34m
Max Reach At Ground
5.02m
Max Digging Height
4.73m
Max Dumping Height
3.54m
Bucket Capacity
-
Bucket Breakout Force
3304kgf
Arm Crowd Force
2009kgf
Overall Length
4.81m
Overall Height
2.48m
Ground Clearance
275mm
Operating Weight
4.05Ton

Empower Mini Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Height
-
Ground Clearance
-
Operating Weight
-

Sany SY60C Mini Excavator
Engine Brand
Isuzu
Engine Model
4JG1
Engine Power
48.9HP
Max Torque
175Nm
Rated Speed
2100rpm
Displacement
3.05L
Fuel Tank Capacity
130L
Hydraulic Flow Rate
138L/min
Hydraulic Pressure (implement Circuit)
253.0kgf/cm²
Hydraulic Pressure (swing Circuit)
194.76kgf/cm²
Hydraulic Pressure (travel Circuit)
252.88kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.7kgf/cm²
Max Digging Depth
3.815 m
Max Reach At Ground
6.090 m
Max Digging Height
5.690 m
Max Dumping Height
3.930 m
Bucket Capacity
0.26m³
Bucket Breakout Force
4590 kgf
Arm Crowd Force
3360kgf
Overall Length
5.925m
Overall Height
2.595m
Ground Clearance
330mm
Operating Weight
-
