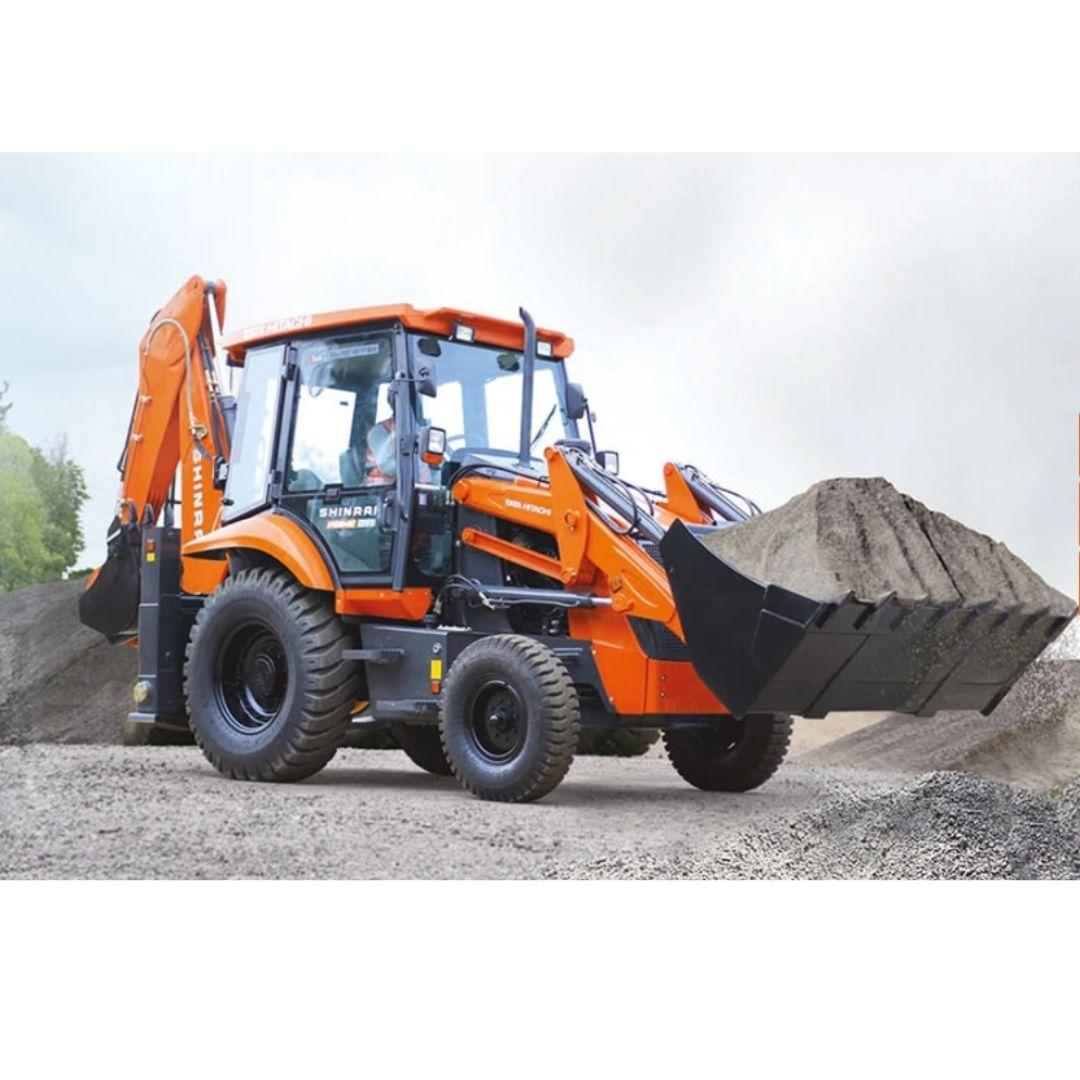

Tata Hitachi Shinrai Prime Backhoe Loader CEV 5
Tata Hitachi Construction Machinery Company Private Ltd
Delhi
The Tata Hitachi Shinrai Prime Backhoe Loader CEV 5 is a high-performance, versatile machine designed for demanding construction tasks. With a powerful 74.3 HP engine, it delivers optimal power for a range of applications, including excavation, material handling, and roadwork. The loader features a 1.1 m³ bucket capacity, making it perfect for loading and lifting heavy materials, while the 0.27 m³ backhoe bucket ensures precision and efficiency in digging tasks. Its operating weight of 8,120 kg (STD) to 8,220 kg (4WD) provides excellent stability, making it ideal for both urban and rural projects. Built to meet the latest CEV 5 emissions standards, it combines environmental sustainability with high productivity. The Tata Hitachi Shinrai Prime is an essential tool for construction, infrastructure, and landscaping projects, offering reliability and power in one compact package.
Tata Hitachi Shinrai Prime Backhoe Loader CEV 5
Tata Hitachi Construction Machinery Company Private Ltd
Delhi
The Tata Hitachi Shinrai Prime Backhoe Loader CEV 5 is a high-performance, versatile machine designed for demanding construction tasks. With a powerful 74.3 HP engine, it delivers optimal power for a range of applications, including excavation, material handling, and roadwork. The loader features a 1.1 m³ bucket capacity, making it perfect for loading and lifting heavy materials, while the 0.27 m³ backhoe bucket ensures precision and efficiency in digging tasks. Its operating weight of 8,120 kg (STD) to 8,220 kg (4WD) provides excellent stability, making it ideal for both urban and rural projects. Built to meet the latest CEV 5 emissions standards, it combines environmental sustainability with high productivity. The Tata Hitachi Shinrai Prime is an essential tool for construction, infrastructure, and landscaping projects, offering reliability and power in one compact package.
Product Description
The Tata Hitachi Shinrai Prime Backhoe Loader CEV 5 is a high-performance, versatile machine designe...
View the full brochure
Tata Hitachi Shinrai Prime Backhoe Loader CEV 5 Comparison with Similar Backhoe Loader
Tata Hitachi Shinrai Prime Backhoe Loader CEV 5
Engine Model
V3800-CR-TES
Rated Speed
2,200rpm
Engine Power
74.3HP
Displacement
3.7L
Max Torque
310Nm
Engine Brand
Kubota
Fuel Tank Capacity
128L
Transmission Type
Carraro
Number Of Gears (forward/reverse)
4/2
Torque Converter Stall Ratio
-
Max Travel Speed
32km/h
Service Brake Type
Oil-immersed wet disc
Parking Brake Type
Hand-operated disc brake
Steering Type
Hydraulic
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
11.73m
Turning Radius (unbraked)
8.6m
Max Lifting Capacity
1,920kg
Operating Weight
5.7Ton
Hydraulic Flow Rate
113L/min
Hydraulic Pressure
245Bar
Max Digging Depth
4.7m
Max Reach At Ground
6.88m
Max Reach At Full Height
-
Max Loading Height
3.55m
Bucket Capacity
0.27m³
Bucket Breakout Force
5,685kgf
Dipper Breakout Force
3,220kgf
Max Dump Height
3.305m
Max Load Over Height
3.55m
Max Hinge Pin Height
3.53m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
6,580kgf
Shovel Breakout Force
5,488kgf
Overall Length
6.04m
Overall Width
2.13m
Overall Height
2.72m
Ground Clearance
320mm
Power Steering
Hydraulic actuation with priority for smooth control
Battery Voltage
12 V
Front Axle Oscillation
-
Standard Tyres (front/rear)
9x16, 16 PR/ 16.9x28, 12 PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
CAT 424-2 Backhoe Loader
Engine Model
C3.6
Rated Speed
2200 rpm
Engine Power
75HP
Displacement
-
Max Torque
424Nm
Engine Brand
CAT
Fuel Tank Capacity
-
Transmission Type
Variable Displacement Pump
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
37km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
-
Operating Weight
7.98 Ton
Hydraulic Flow Rate
132L/min
Hydraulic Pressure
-
Max Digging Depth
4.729m
Max Reach At Ground
5.612m
Max Reach At Full Height
-
Max Loading Height
4.015m
Bucket Capacity
1.05m³
Bucket Breakout Force
5,730kgf
Dipper Breakout Force
3,570kgf
Max Dump Height
2.794m
Max Load Over Height
-
Max Hinge Pin Height
-
Loader Bucket Capacity
1.05m³
Loader Arm Breakout Force
5,390kgf
Shovel Breakout Force
5,370kgf
Overall Length
5.708m
Overall Width
2.346m
Overall Height
2.346m
Ground Clearance
-
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
CASE 770EX Backhoe Loader
Engine Model
H4C4E7422*W
Rated Speed
2200rpm
Engine Power
74HP
Displacement
3.84L
Max Torque
340Nm
Engine Brand
Ashok Leyland
Fuel Tank Capacity
129L
Transmission Type
4F-4R Power Shuttle Synchromesh Transmission
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
34.1km/h
Service Brake Type
Hydraulic foot operated, 2 disc per side
Parking Brake Type
Mechanically actuated caliper type brake pack on rear axle input shaft
Steering Type
Power Steering
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
9.2m
Turning Radius (unbraked)
11.1m
Max Lifting Capacity
3515kg
Operating Weight
7.78Ton
Hydraulic Flow Rate
126L/min
Hydraulic Pressure
195Bar
Max Digging Depth
4.40m
Max Reach At Ground
5.625m
Max Reach At Full Height
2.15m
Max Loading Height
3.8m
Bucket Capacity
0.26m³
Bucket Breakout Force
5206kgf
Dipper Breakout Force
3031kgf
Max Dump Height
2.73m
Max Load Over Height
3.3m
Max Hinge Pin Height
3.60m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
4750kgf
Shovel Breakout Force
-
Overall Length
5.88m
Overall Width
2.27m
Overall Height
3.85m
Ground Clearance
380mm
Power Steering
Yes
Battery Voltage
12V
Front Axle Oscillation
21°
Standard Tyres (front/rear)
Front: 9x16 -16PR / Rear: 16.9x28 -12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
Bull HD96 4WD Backhoe Loader
Engine Model
4R 1040 T EU STAGE II (Diesel)
Rated Speed
2200rpm
Engine Power
96HP
Displacement
-
Max Torque
377Nm
Engine Brand
KIRLOSKAR
Fuel Tank Capacity
115 / 150L
Transmission Type
CARRARO synchroshuttle
Number Of Gears (forward/reverse)
-
Torque Converter Stall Ratio
-
Max Travel Speed
40km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
-
Operating Weight
8.15Ton
Hydraulic Flow Rate
134L/min
Hydraulic Pressure
240Bar
Max Digging Depth
-
Max Reach At Ground
-
Max Reach At Full Height
1.42 / 1.28m
Max Loading Height
-
Bucket Capacity
1.1m³
Bucket Breakout Force
-
Dipper Breakout Force
-
Max Dump Height
2.93 / 2.96m
Max Load Over Height
-
Max Hinge Pin Height
3.61m
Loader Bucket Capacity
-
Loader Arm Breakout Force
5251kgf
Shovel Breakout Force
-
Overall Length
6.04m
Overall Width
2.35m
Overall Height
3.71m
Ground Clearance
480mm
Power Steering
-
Battery Voltage
-
Front Axle Oscillation
-
Standard Tyres (front/rear)
-
Emission Standard
Stage II
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
125L
Reach At Ground Level
1.60 / 1.47m
Dump Angle
45°
Lift Path
-
Wheelbase
2.22m
Turning Radius
8.8 / 11.6m
ESCORTS DIGMAX II Backhoe Loader
Engine Model
4R1190NA
Rated Speed
-
Engine Power
75 HP
Displacement
-
Max Torque
300 Nm
Engine Brand
Kirloskar
Fuel Tank Capacity
134L
Transmission Type
Syncro shift reversing shuttle
Number Of Gears (forward/reverse)
(4F/ 4R )
Torque Converter Stall Ratio
-
Max Travel Speed
36.6km/h
Service Brake Type
Hydraulically actuated dual line, self adjusting, oil immersed, multi disc type
Parking Brake Type
Hand-operated caliper disc brakes
Steering Type
Hydrostatic power steering
Steering Angle
-
Oscillation Angle
16°
Turning Radius (braked)
-
Turning Radius (unbraked)
-
Max Lifting Capacity
1980kg
Operating Weight
8.19Ton
Hydraulic Flow Rate
117.5L/min
Hydraulic Pressure
225Bar
Max Digging Depth
4.80m
Max Reach At Ground
6.97m
Max Reach At Full Height
1.22m
Max Loading Height
-
Bucket Capacity
0.26m³
Bucket Breakout Force
6425kgf
Dipper Breakout Force
6174kgf
Max Dump Height
3.00m
Max Load Over Height
3.51m
Max Hinge Pin Height
3.70m
Loader Bucket Capacity
1.2 m³
Loader Arm Breakout Force
5777kgf
Shovel Breakout Force
-
Overall Length
6.28m
Overall Width
-
Overall Height
3.78m
Ground Clearance
0.35mm
Power Steering
yes
Battery Voltage
-
Front Axle Oscillation
16°
Standard Tyres (front/rear)
9.00 x 16 - 16PR / 16.9 x 28 - 12PR
Emission Standard
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Reach At Ground Level
-
Dump Angle
-
Lift Path
-
Wheelbase
-
Turning Radius
-
