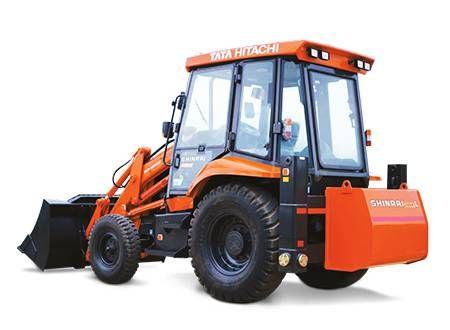

Tata Hitachi Shinrai Prime Backhoe Loader
Trishul Tread Private Limited
The Tata Hitachi Shinrai Prime Backhoe Loader is engineered for outstanding performance and versatility on any construction site. Boasting a robust 74.3 HP engine with advanced fuel efficiency and a 1.1 m³ bucket capacity, it excels in excavation, material handling, and roadwork. The loader's high-performance hydraulic system ensures optimal power utilization for various soil types, while its proven drive line and transmission system provide reliability and durability. The spacious, well-ventilated cabin enhances operator comfort and safety with ergonomic controls, excellent visibility, and a user-friendly digital display. Whether you're clearing debris or performing site maintenance, the Shinrai Prime's durable construction and versatile capabilities make it a valuable asset for any heavy-duty application.
Tata Hitachi Shinrai Prime Backhoe Loader
Trishul Tread Private Limited
The Tata Hitachi Shinrai Prime Backhoe Loader is engineered for outstanding performance and versatility on any construction site. Boasting a robust 74.3 HP engine with advanced fuel efficiency and a 1.1 m³ bucket capacity, it excels in excavation, material handling, and roadwork. The loader's high-performance hydraulic system ensures optimal power utilization for various soil types, while its proven drive line and transmission system provide reliability and durability. The spacious, well-ventilated cabin enhances operator comfort and safety with ergonomic controls, excellent visibility, and a user-friendly digital display. Whether you're clearing debris or performing site maintenance, the Shinrai Prime's durable construction and versatile capabilities make it a valuable asset for any heavy-duty application.
Product Description
The Tata Hitachi Shinrai Prime Backhoe Loader is engineered for outstanding performance and versatil...
View the full brochure
Tata Hitachi Shinrai Prime Backhoe Loader Comparison with Similar Wheel Loader

Tata Hitachi Shinrai Prime Backhoe Loader
Engine Brand
Tata Hitachi
Engine Model
-
Engine Power
55.4055kW
Max Torque
305Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
129L
Hydraulic Oil Capacity
-
Transmission Type
Synchro-shuttle with solenoid control
Number Of Gears (f/r)
4F/2R
Max Travel Speed (f)
32km/h
Max Travel Speed (r)
-
Service Brake Type
Hydraulic, oil-immersed wet disc
Parking Brake Type
Hand-operated disc brake on rear axle
Steering Type
Hydraulic with inner-wheel braking
Steering Angle
-
Oscillation Angle
5°
Turning Radius
-
Operating Weight
8083kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
113L/min
Hydraulic Pressure
245Bar
Overall Length
6.04m
Overall Width
2.354m
Overall Height
2.94m
Ground Clearance
320mm
Max Dump Height
2.69m
Max Load Over Height
3.305m
Max Reach At Full Height
1.32m
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5488kN
Front Axle Oscillation
5°
Battery Voltage
12V / 130AhV
Standard Tires (front/rear)
12.5/80-18, 16.9x28
Emission Standard
-
Max Travel Speed
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Max Hinge Pin Height
-
Reach At Ground Level
-
Bucket Capacity
-
Dump Angle
-
Lift Path
-
Wheelbase
-

SDLG L935HI Wheel Loader
Engine Brand
SDLG
Engine Model
WP4.6NG135 E672
Engine Power
133kW
Max Torque
620Nm
Rated Speed
2250rpm
Displacement
4.58L
Fuel Tank Capacity
160L
Hydraulic Oil Capacity
136L
Transmission Type
Fixed shaft power shift
Number Of Gears (f/r)
F4/R2
Max Travel Speed (f)
41km/h
Max Travel Speed (r)
32km/h
Service Brake Type
Air over Hydraulic Disc Brakes
Parking Brake Type
Mechanically operated disc brake
Steering Type
Load-sensing full hydraulic articulated
Steering Angle
36°
Oscillation Angle
11°
Turning Radius
6.2m
Operating Weight
11400kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
3600kg
Hydraulic Flow Rate
210L/min
Hydraulic Pressure
175Bar
Overall Length
7.280m
Overall Width
2.520m
Overall Height
3.340m
Ground Clearance
375mm
Max Dump Height
2.930m
Max Load Over Height
3.790m
Max Reach At Full Height
1.140m
Loader Bucket Capacity
2.2m³
Loader Arm Breakout Force
296kN
Front Axle Oscillation
11°
Battery Voltage
24V
Standard Tires (front/rear)
17.5-25L-3
Emission Standard
-
Max Travel Speed
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Max Hinge Pin Height
-
Reach At Ground Level
-
Bucket Capacity
-
Dump Angle
-
Lift Path
-
Wheelbase
-

Volvo L220H Wheel Loader
Engine Brand
Volvo
Engine Model
D13F
Engine Power
375kW
Max Torque
2276Nm
Rated Speed
1300-1400rpm
Displacement
12.8L
Fuel Tank Capacity
366L
Hydraulic Oil Capacity
226L
Transmission Type
Volvo HTL 310
Number Of Gears (f/r)
-
Max Travel Speed (f)
36.5km/h
Max Travel Speed (r)
-
Service Brake Type
Wet Disc
Parking Brake Type
Wet Disc
Steering Type
Articulated
Steering Angle
37°
Oscillation Angle
15°
Turning Radius
-
Operating Weight
33.2kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
10080kg
Hydraulic Flow Rate
253L/min
Hydraulic Pressure
290Bar
Overall Length
9.27m
Overall Width
3.23m
Overall Height
5.33m
Ground Clearance
0.6mm
Max Dump Height
3.16m
Max Load Over Height
-
Max Reach At Full Height
-
Loader Bucket Capacity
5.2m³
Loader Arm Breakout Force
241.1kN
Front Axle Oscillation
15°
Battery Voltage
24V
Standard Tires (front/rear)
29.5 R25 L3
Emission Standard
-
Max Travel Speed
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Max Hinge Pin Height
-
Reach At Ground Level
-
Bucket Capacity
-
Dump Angle
-
Lift Path
-
Wheelbase
-

Komatsu WA470-6A Wheel Loader
Engine Brand
Komatsu
Engine Model
SAA6D125E-5
Engine Power
203kW
Max Torque
-
Rated Speed
2000rpm
Displacement
11.04L
Fuel Tank Capacity
413L
Hydraulic Oil Capacity
173L
Transmission Type
Full-powershift, countershaft type
Number Of Gears (f/r)
4/4
Max Travel Speed (f)
36.2km/h
Max Travel Speed (r)
36.2km/h
Service Brake Type
Hydraulically actuated, wet disc brakes
Parking Brake Type
Wet disc brake
Steering Type
Articulated, full-hydraulic power steering
Steering Angle
35°
Oscillation Angle
26°
Turning Radius
6.63m
Operating Weight
22.96kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
260L/min
Hydraulic Pressure
34.3Bar
Overall Length
8.825m
Overall Width
3.01m
Overall Height
3.5m
Ground Clearance
525mm
Max Dump Height
3.235m
Max Load Over Height
4.36m
Max Reach At Full Height
1.435m
Loader Bucket Capacity
5.2m³
Loader Arm Breakout Force
220kN
Front Axle Oscillation
26°
Battery Voltage
-
Standard Tires (front/rear)
23.5-25 or 26.5-25 (based on config)
Emission Standard
-
Max Travel Speed
-
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
-
Max Hinge Pin Height
-
Reach At Ground Level
-
Bucket Capacity
-
Dump Angle
-
Lift Path
-
Wheelbase
-

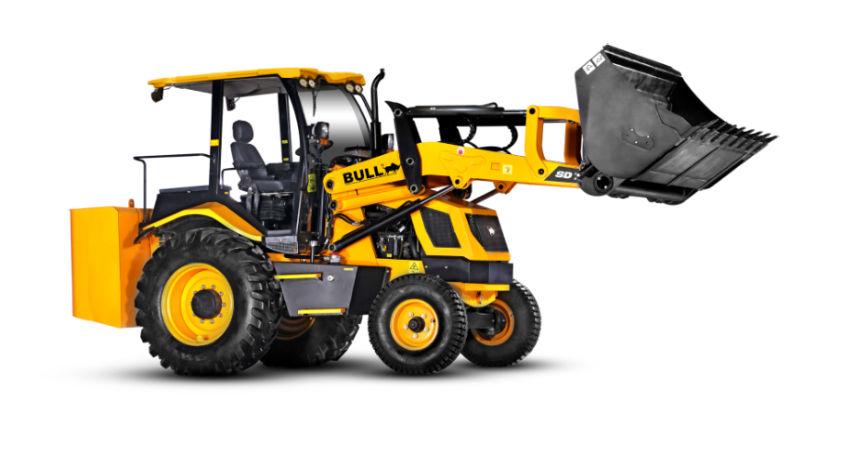

Bull HD76 Wheel Loader
Engine Brand
Kirloskar
Engine Model
4R 1040, TC EURO-III A
Engine Power
76HP
Max Torque
300 Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
115L
Hydraulic Oil Capacity
-
Transmission Type
Synchroshuttle (Carraro)
Number Of Gears (f/r)
-
Max Travel Speed (f)
-
Max Travel Speed (r)
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
8.8m
Operating Weight
7.85Ton
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
113L/min
Hydraulic Pressure
230Bar
Overall Length
6.04m
Overall Width
2.35m
Overall Height
3.71m
Ground Clearance
480mm
Max Dump Height
2.93m
Max Load Over Height
-
Max Reach At Full Height
1.42m
Loader Bucket Capacity
-
Loader Arm Breakout Force
5251kgf
Front Axle Oscillation
-
Battery Voltage
-
Standard Tires (front/rear)
-
Emission Standard
EURO-III A
Max Travel Speed
41km/h
Rated Operating Capacity
-
Rated Operating Capacity (optional)
-
Max Tipping Load
-
Hydraulic System Capacity
120L
Max Hinge Pin Height
3.61m
Reach At Ground Level
1.60m
Bucket Capacity
1.1m³
Dump Angle
45°
Lift Path
-
Wheelbase
2.22m
