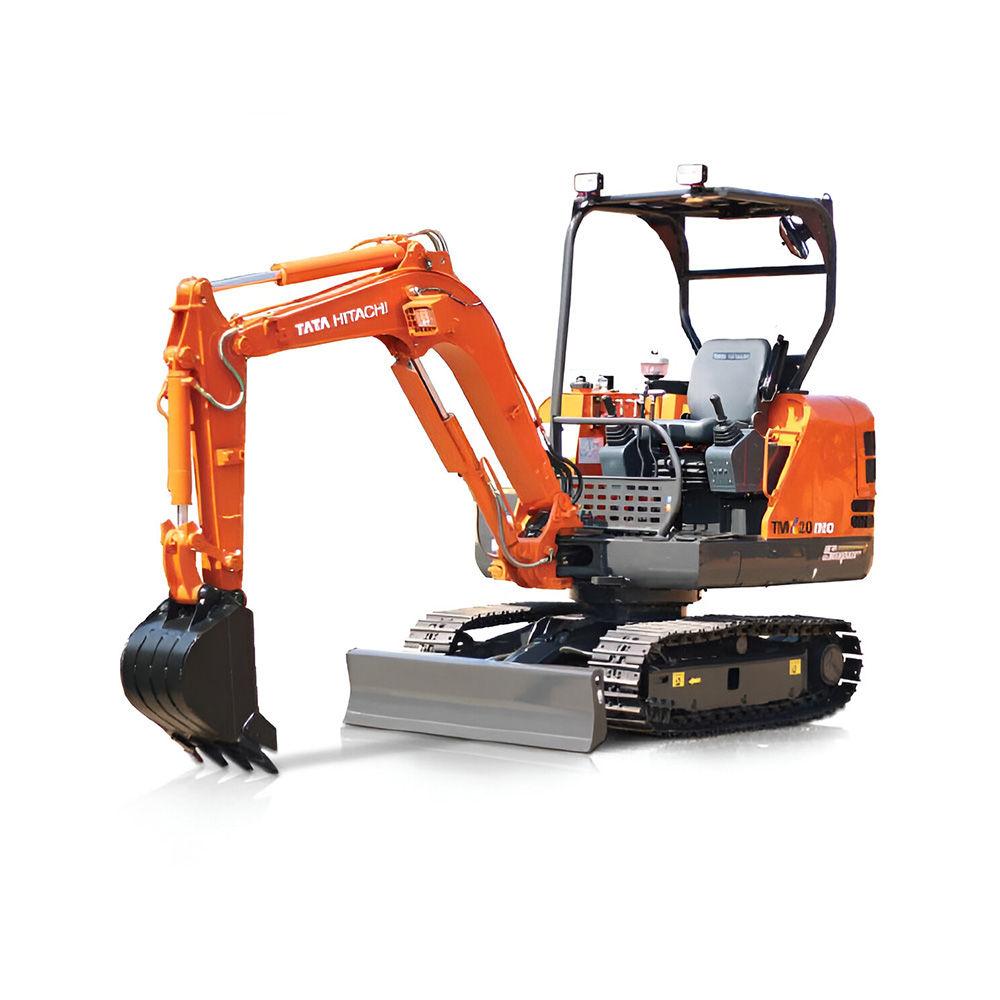

Tata Hitachi TMX 20 Neo Mini Excavator
Trishul Tread Private Limited
The TMX 20 Neo Mini Excavator combines power, efficiency, and durability in a compact package, making it ideal for a range of construction and landscaping tasks. With a robust 27.4 HP engine and a 2,300 kg operating weight, it excels in both precision and performance. Its bucket capacity of 0.04 to 0.07 m³ allows for versatile excavation and material handling. Designed for optimal fuel efficiency and low operating costs, the TMX 20 Neo is perfect for urban and small-scale projects. The machine features advanced hydraulic and electrical systems, ensuring high reliability and reduced maintenance needs. Easy to transport and supported by Tata Hitachi’s genuine spare parts, it offers long service intervals and dependable operation, making it an excellent choice for both residential and commercial applications.
Tata Hitachi TMX 20 Neo Mini Excavator
Trishul Tread Private Limited
The TMX 20 Neo Mini Excavator combines power, efficiency, and durability in a compact package, making it ideal for a range of construction and landscaping tasks. With a robust 27.4 HP engine and a 2,300 kg operating weight, it excels in both precision and performance. Its bucket capacity of 0.04 to 0.07 m³ allows for versatile excavation and material handling. Designed for optimal fuel efficiency and low operating costs, the TMX 20 Neo is perfect for urban and small-scale projects. The machine features advanced hydraulic and electrical systems, ensuring high reliability and reduced maintenance needs. Easy to transport and supported by Tata Hitachi’s genuine spare parts, it offers long service intervals and dependable operation, making it an excellent choice for both residential and commercial applications.
Product Description
The TMX 20 Neo Mini Excavator combines power, efficiency, and durability in a compact package, makin...
Tata Hitachi TMX 20 Neo Mini Excavator Comparison with Similar Mini Excavators
Tata Hitachi TMX 20 Neo Mini Excavator
Hydraulic Pressure (implement Circuit)
150kgf/cm²
Hydraulic Pressure (swing Circuit)
145kgf/cm²
Hydraulic Pressure (travel Circuit)
150kgf/cm²
Hydraulic Pressure (pilot Circuit)
25kgf/cm²
Operating Weight
2.3Ton
Max Digging Depth
2.3m
Max Reach At Ground
4.0m
Max Digging Height
3.9m
Max Dumping Height
2.6m
Bucket Capacity
0.07m³
Bucket Breakout Force
-
Arm Crowd Force
1300kgf
Overall Length
4.0m
Overall Height
2.3m
Ground Clearance
291mm
Engine Brand
Yanmar
Engine Model
3TNV88-BSTAH
Engine Power
27.4HP
Max Torque
107.8Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
37L
Hydraulic Flow Rate
63.6L/min
JCB 37C Mini Excavator
Hydraulic Pressure (implement Circuit)
255kgf/cm²
Hydraulic Pressure (swing Circuit)
220kgf/cm²
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.05Ton
Max Digging Depth
3.34m
Max Reach At Ground
5.02m
Max Digging Height
4.73m
Max Dumping Height
3.54m
Bucket Capacity
-
Bucket Breakout Force
3304kgf
Arm Crowd Force
2009kgf
Overall Length
4.81m
Overall Height
2.48m
Ground Clearance
275mm
Engine Brand
JCB
Engine Model
Perkins 403J-17
Engine Power
25.3HP
Max Torque
91.9Nm
Rated Speed
-
Displacement
1.662L
Fuel Tank Capacity
50L
Hydraulic Flow Rate
-
Sany SY20U Mini Excavator
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
1.95Ton
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Overall Length
3.515m
Overall Height
2.49m
Ground Clearance
160mm
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Sany SY35U Mini Excavator
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
210kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.7kgf/cm²
Operating Weight
-
Max Digging Depth
3.105m
Max Reach At Ground
5.465m
Max Digging Height
4.855m
Max Dumping Height
3.460m
Bucket Capacity
0.12m³
Bucket Breakout Force
3099.93kgf
Arm Crowd Force
1855.88kgf
Overall Length
4.910m
Overall Height
2.515m
Ground Clearance
295mm
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Engine Power
28HP
Max Torque
106Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
99L/min
Sany SY35 pro Mini Excavator
Hydraulic Pressure (implement Circuit)
249.83kgf/cm²
Hydraulic Pressure (swing Circuit)
249.83kgf/cm²
Hydraulic Pressure (travel Circuit)
249.83kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.69kgf/cm²
Operating Weight
-
Max Digging Depth
2.71m
Max Reach At Ground
4.645m
Max Digging Height
4.845m
Max Dumping Height
3.505m
Bucket Capacity
0.072m³
Bucket Breakout Force
1662.14kgf
Arm Crowd Force
1346.03kgf
Overall Length
4.15m
Overall Height
1.55m
Ground Clearance
285mm
Engine Brand
Yanmar
Engine Model
3TNV88-BSSY
Engine Power
24.41HP
Max Torque
71.1Nm
Rated Speed
2200rpm
Displacement
1.642L
Fuel Tank Capacity
40L
Hydraulic Flow Rate
84L/min
