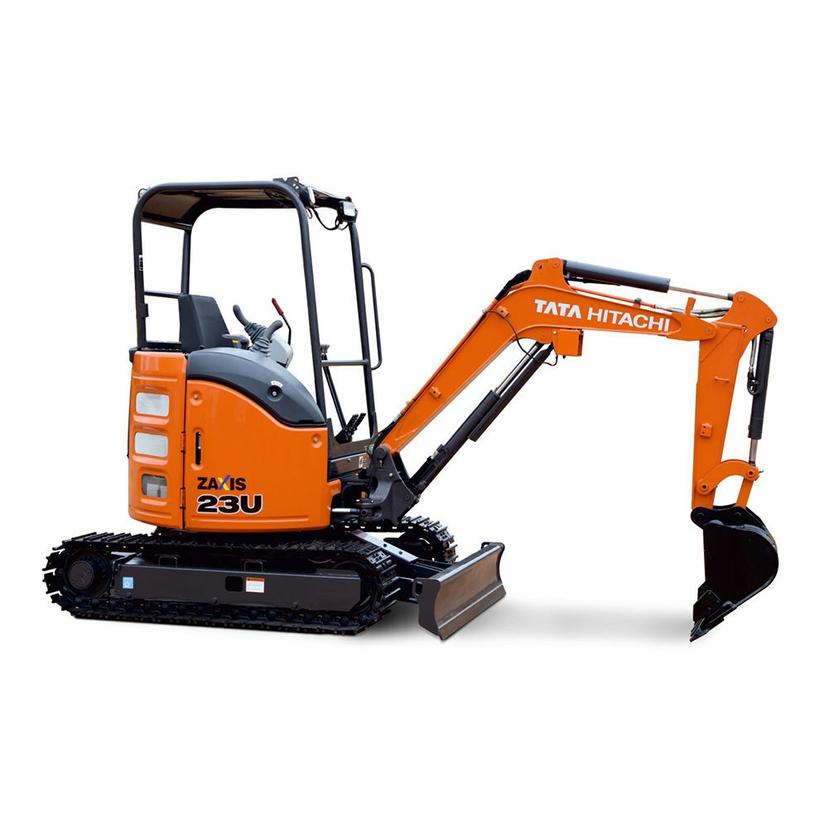

Tata Hitachi ZAXIS 23U Mini Excavator

Trishul Tread Private Limited

Maharashtra

The ZAXIS 23U Mini Excavator is a versatile and high-performance machine designed for a wide range of applications, including construction, infrastructure, agriculture, and utility work. With a compact form and ultra-short tail swing, it excels in tight spaces and urban environments. The 17.7 PS engine and 0.07 m³ bucket capacity deliver robust performance, while the advanced hydraulic system enhances operational efficiency. Built with a focus on safety and operator comfort, the ZAXIS 23U features a well-designed operating space and easy maintenance access. Its durable construction includes hydraulic hose protectors, a sturdy boom, and a strong front-end attachment. This mini excavator offers exceptional versatility, reliability, and ease of use, making it an ideal choice for diverse job sites and demanding tasks.

Operating Weight
2.3Ton

Product Description

The ZAXIS 23U Mini Excavator is a versatile and high-performance machine designed for a wide range o...

View the full brochure

Tata Hitachi ZAXIS 23U Mini Excavator Comparison with Similar Mini Excavators

Tata Hitachi ZAXIS 23U Mini Excavator

Tata Hitachi ZAXIS 23U Mini Excavator

Get Latest Price
Rating
4.4

Engine Brand

Yanmar

Engine Model

3TNV76

Engine Power

17.4HP

Max Torque

62.8Nm

Rated Speed

2200rpm

Displacement

1.1L

Fuel Tank Capacity

34L

Hydraulic Flow Rate

2×26.4L/min

Hydraulic Pressure (implement Circuit)

210kgf/cm²

Hydraulic Pressure (swing Circuit)

175kgf/cm²

Hydraulic Pressure (travel Circuit)

210kgf/cm²

Hydraulic Pressure (pilot Circuit)

40kgf/cm²

Operating Weight

2.3Ton

Max Digging Depth

2.23m

Max Reach At Ground

4.06m

Max Digging Height

4.08m

Max Dumping Height

2.8m

Bucket Capacity

0.07

Bucket Breakout Force

-

Arm Crowd Force

1260kgf

Overall Length

3.86m

Overall Height

2.41m

Ground Clearance

290mm

Currently Viewing
Kobelco SK80 Mini Excavator

Kobelco SK80 Mini Excavator

Get Latest Price
Rating
4.4

Engine Brand

YANMAR

Engine Model

4TN98S

Engine Power

46.67HP

Max Torque

212Nm

Rated Speed

2100 rpm

Displacement

3.319 L

Fuel Tank Capacity

-

Hydraulic Flow Rate

126L/min

Hydraulic Pressure (implement Circuit)

300kgf/cm²

Hydraulic Pressure (swing Circuit)

250kgf/cm²

Hydraulic Pressure (travel Circuit)

300kgf/cm²

Hydraulic Pressure (pilot Circuit)

33kgf/cm²

Operating Weight

7.24 Ton

Max Digging Depth

-

Max Reach At Ground

-

Max Digging Height

-

Max Dumping Height

-

Bucket Capacity

0.35

Bucket Breakout Force

5375.69 kgf

Arm Crowd Force

4019.57 kgf

Overall Length

-

Overall Height

-

Ground Clearance

-

JCB	37C Mini Excavator

JCB 37C Mini Excavator

Get Latest Price
Rating
4.4

Engine Brand

JCB

Engine Model

Perkins 403J-17

Engine Power

25.3HP

Max Torque

91.9Nm

Rated Speed

-

Displacement

1.662L

Fuel Tank Capacity

50L

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

255kgf/cm²

Hydraulic Pressure (swing Circuit)

220kgf/cm²

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

4.05Ton

Max Digging Depth

3.34m

Max Reach At Ground

5.02m

Max Digging Height

4.73m

Max Dumping Height

3.54m

Bucket Capacity

-

Bucket Breakout Force

3304kgf

Arm Crowd Force

2009kgf

Overall Length

4.81m

Overall Height

2.48m

Ground Clearance

275mm

Tata Hitachi EX 210LC Prime Mini Excavator

Tata Hitachi EX 210LC Prime Mini Excavator

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

6BT5.9C

Engine Power

131HP

Max Torque

54.8Nm

Rated Speed

2000rpm

Displacement

-

Fuel Tank Capacity

300L

Hydraulic Flow Rate

2 × 221L/min

Hydraulic Pressure (implement Circuit)

285kgf/cm²

Hydraulic Pressure (swing Circuit)

275kgf/cm²

Hydraulic Pressure (travel Circuit)

350kgf/cm²

Hydraulic Pressure (pilot Circuit)

40kgf/cm²

Operating Weight

20.6Ton

Max Digging Depth

5.87m

Max Reach At Ground

9.25m

Max Digging Height

9.4m

Max Dumping Height

6.6m

Bucket Capacity

0.91 - 1.7

Bucket Breakout Force

12,250kgf

Arm Crowd Force

9,700 - 11,700kgf

Overall Length

9.579m

Overall Height

3.112m

Ground Clearance

440mm

Tata Hitachi ZAXIS 33U Mini Excavator

Tata Hitachi ZAXIS 33U Mini Excavator

Get Latest Price
Rating
4.4

Engine Brand

Yanmar

Engine Model

EDM-3TNV88

Engine Power

28.41HP

Max Torque

105.5Nm

Rated Speed

2200rpm

Displacement

1.642L

Fuel Tank Capacity

42L

Hydraulic Flow Rate

2×38.4L/min

Hydraulic Pressure (implement Circuit)

250kgf/cm²

Hydraulic Pressure (swing Circuit)

170kgf/cm²

Hydraulic Pressure (travel Circuit)

250kgf/cm²

Hydraulic Pressure (pilot Circuit)

40kgf/cm²

Operating Weight

3.65Ton

Max Digging Depth

3.13m

Max Reach At Ground

5.04m

Max Digging Height

-

Max Dumping Height

3.31m

Bucket Capacity

0.09

Bucket Breakout Force

-

Arm Crowd Force

1499kgf

Overall Length

4.45m

Overall Height

2.47m

Ground Clearance

270mm
