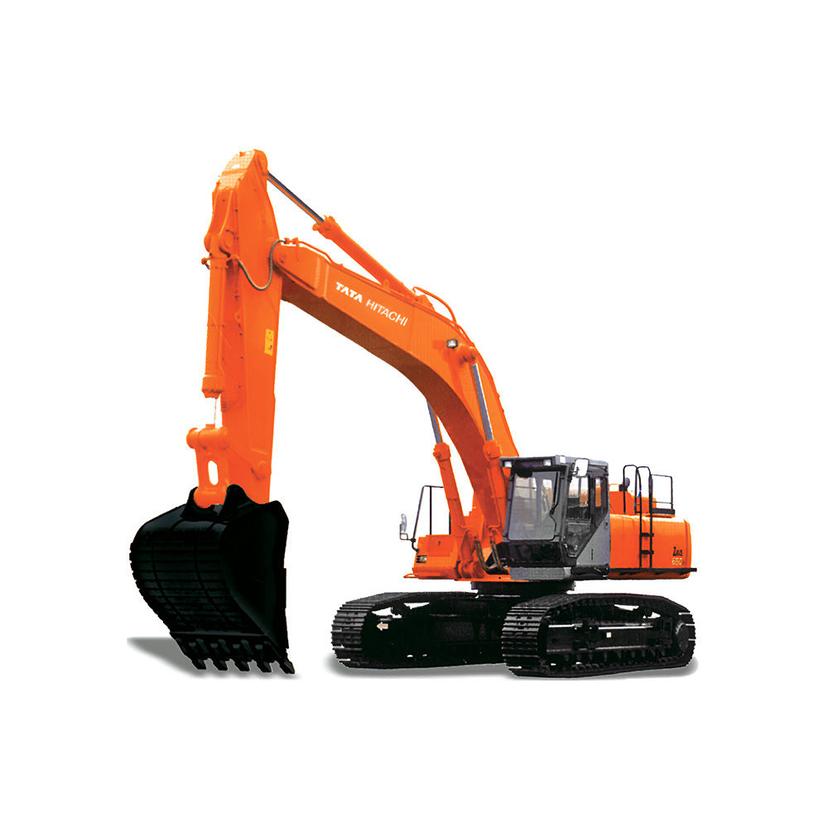

Tata Hitachi ZAXIS 650H Crawler Excavator
Trishul Tread Private Limited
Delhi
The Tata Hitachi ZAXIS 650H Crawler Excavator delivers exceptional performance for heavy-duty mining and construction applications. With a powerful 400 PS engine and an operating weight of 58,340 kg, it handles challenging job sites with ease. Its high bucket capacity of 3.3 - 3.8 m³, combined with rugged design and swift front movements, boosts productivity and speeds up project completion. Designed for long-term use, the ZAXIS 650H features a robust structural component and low maintenance requirements, ensuring lower running costs and reduced downtime. The excavator’s environmentally friendly design and advanced fuel economy further enhance operational efficiency while maintaining a high level of operator safety with its pressurized cab. Ideal for demanding environments, this machine is built for durability and efficiency.
Tata Hitachi ZAXIS 650H Crawler Excavator
Trishul Tread Private Limited
Delhi
The Tata Hitachi ZAXIS 650H Crawler Excavator delivers exceptional performance for heavy-duty mining and construction applications. With a powerful 400 PS engine and an operating weight of 58,340 kg, it handles challenging job sites with ease. Its high bucket capacity of 3.3 - 3.8 m³, combined with rugged design and swift front movements, boosts productivity and speeds up project completion. Designed for long-term use, the ZAXIS 650H features a robust structural component and low maintenance requirements, ensuring lower running costs and reduced downtime. The excavator’s environmentally friendly design and advanced fuel economy further enhance operational efficiency while maintaining a high level of operator safety with its pressurized cab. Ideal for demanding environments, this machine is built for durability and efficiency.
Product Description
The Tata Hitachi ZAXIS 650H Crawler Excavator delivers exceptional performance for heavy-duty mining...
View the full brochure
Tata Hitachi ZAXIS 650H Crawler Excavator Comparison with Similar Crawler Excavator

Tata Hitachi ZAXIS 650H Crawler Excavator
Engine Brand
Isuzu
Engine Model
BB-6WG1X
Engine Power
395HP
Max Torque
1540Nm
Rated Speed
1800rpm
Displacement
15.68L
Fuel Tank Capacity
740L
Hydraulic Flow Rate
2×434L/min
Hydraulic Pressure (implement Circuit)
315kgf/cm²
Hydraulic Pressure (swing Circuit)
299.7kgf/cm²
Hydraulic Pressure (travel Circuit)
349.7kgf/cm²
Hydraulic Pressure (pilot Circuit)
39.7kgf/cm²
Operating Weight
58.3Ton
Ground Pressure (600mm Track)
1.04kgf/cm²
Max Digging Depth
15.2m
Max Reach At Ground
19.4m
Max Dumping Height
11.1m
Bucket Capacity
3.8m³
Bucket Breakout Force
-
Arm Crowd Force
11200kgf
Overall Length
13m
Overall Width
3.9m
Overall Height
4.2m
Ground Clearance
810mm

Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
38Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-

XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
17.5Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm

Liugong 965E HD Crawler Excavator
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
62.6Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Arm Crowd Force
30591.5kgf
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm

Sany SY210 SPARC + Crawler Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
