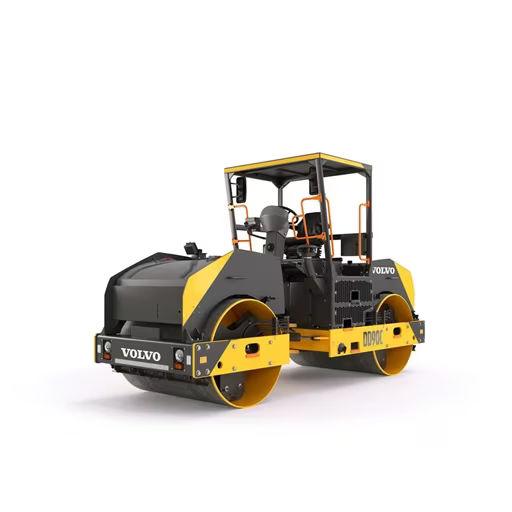

Volvo DD90C Tandem Roller

The Volvo DD90C Tandem Roller is a high-performance compaction machine designed for reliability, precision, and ease of operation. With an operating weight of 8,700 kg and advanced features like dual amplitude vibration, high centrifugal force, and efficient water spray systems, it delivers consistent results on a variety of surfaces. Its powerful 55 kW VECV engine ensures smooth performance even under demanding site conditions. The articulated frame steering and optimized drum design allow for superior maneuverability in tight spaces. Ideal for road construction, airport runways, bridge work, and industrial flooring, the DD90C ensures uniform compaction with reduced operator fatigue. Equipped with auto vibration control, real-time speed monitoring, and a comfortable operator cabin, it stands out as a versatile choice for modern infrastructure development needs.

Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Overall Length
4.970 m
Overall Width
1.835 m
Overall Height
3.050m
Product Brochure

Product Description

The Volvo DD90C Tandem Roller is a high-performance compaction machine designed for reliability, pre...

View the full brochure

Volvo DD90C Tandem Roller Comparison with Similar Tandem Roller

Volvo DD90C Tandem Roller

Volvo DD90C Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

VECV

Engine Model

EE483TCI StageIV CEV

Engine Power

73.8 HP

Max Torque

-

Rated Speed

2200rpm

Fuel Tank Capacity

180 L

Displacement

-

Transmission Type

Closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

12km/h

Max Working Speed

7 km/h

Gradeability Without Vibration

30%

Gradeability With Vibration

-

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on both drum drives

Steering Type

Articulated frame, center pivot steering

Steering Angle

30°

Oscillation Angle

10°

Turning Radius

7.285 m

Operating Weight

8.7T

Front Axle Load

4.22kg

Rear Axle Load

4.48kg

Hydraulic Tank Capacity

80L

Frequency High

50 Hz

Frequency Low

36 Hz

Amplitude High

1.0 mm

Amplitude Low

0.36mm

Overall Length

4.970 m

Overall Width

1.835 m

Overall Height

3.050m

Ground Clearance

305mm

Drum Width

1.676m

Water Tank Capacity

700L

Currently Viewing

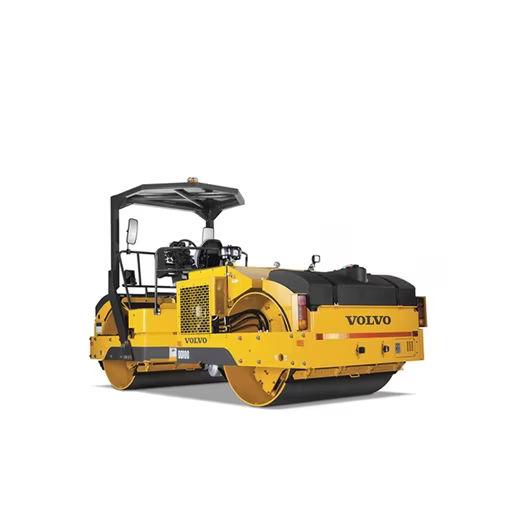

Volvo DD90B Tandem Roller

Volvo DD90B Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

Kirloskar

Engine Model

4R1040TC BS -III (CEV)

Engine Power

75.1HP

Max Torque

-

Rated Speed

2200rpm

Fuel Tank Capacity

145L

Displacement

-

Transmission Type

closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

13km/h

Max Working Speed

7km/h

Gradeability Without Vibration

26%

Gradeability With Vibration

-

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on both drum drives

Steering Type

Articulated frame center pivot steering

Steering Angle

30°

Oscillation Angle

10°

Turning Radius

6.89m

Operating Weight

8.55T

Front Axle Load

4400kg

Rear Axle Load

4150kg

Hydraulic Tank Capacity

85L

Frequency High

50Hz

Frequency Low

36Hz

Amplitude High

1.0mm

Amplitude Low

0.36mm

Overall Length

4.7m

Overall Width

1.835m

Overall Height

3.0m

Ground Clearance

305mm

Drum Width

1.675m

Water Tank Capacity

800L

Volvo DD100 Tandem Roller

Volvo DD100 Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

QSB 4.5

Engine Power

129.9HP

Max Torque

-

Rated Speed

-

Fuel Tank Capacity

189L

Displacement

-

Transmission Type

Closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

11.4 km/h

Max Working Speed

-

Gradeability Without Vibration

-

Gradeability With Vibration

24.5%

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on front and rear drum drive motors

Steering Type

Center pivot (Articulated) steering

Steering Angle

40°

Oscillation Angle

10°

Turning Radius

3.558m

Operating Weight

10.025 T

Front Axle Load

5,200kg

Rear Axle Load

4,825kg

Hydraulic Tank Capacity

133 L

Frequency High

41.7Hz

Frequency Low

30.8 Hz

Amplitude High

1.01mm

Amplitude Low

0.41mm

Overall Length

5.086 m

Overall Width

2.845m

Overall Height

2.845m

Ground Clearance

0.430 mm

Drum Width

1.676m

Water Tank Capacity

984L

Volvo DD100C Tandem Roller

Volvo DD100C Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

VECV

Engine Model

EE494TCI-HPCR

Engine Power

99.2HP

Max Torque

-

Rated Speed

2200rpm

Fuel Tank Capacity

185L

Displacement

-

Transmission Type

Closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

12km/h

Max Working Speed

7km/h

Gradeability Without Vibration

26%

Gradeability With Vibration

-

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on both drum drives

Steering Type

Articulated frame center pivot steering

Steering Angle

38°

Oscillation Angle

10°

Turning Radius

5.7m

Operating Weight

10.6T

Front Axle Load

5160kg

Rear Axle Load

4840kg

Hydraulic Tank Capacity

135L

Frequency High

42Hz

Frequency Low

30Hz

Amplitude High

1.01mm

Amplitude Low

0.41mm

Overall Length

5.25m

Overall Width

2.06m

Overall Height

2.87m

Ground Clearance

370mm

Drum Width

1.676m

Water Tank Capacity

492L

LiuGong 6210E Tandem Roller

LiuGong 6210E Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

Kirloskar

Engine Model

4R1190NA1

Engine Power

74.5HP

Max Torque

300Nm

Rated Speed

2200rpm

Fuel Tank Capacity

220L

Displacement

4.76L

Transmission Type

Hydrostatic

Max Travel Speed

13km/h

Max Working Speed

7km/h

Gradeability Without Vibration

35%

Gradeability With Vibration

40%

Service Brake Type

Hydrostatic

Parking Brake Type

Mechanical Apply, Hydraulic Release

Steering Type

Hydrostatic

Steering Angle

35°

Oscillation Angle

-

Turning Radius

-

Operating Weight

10.0T

Front Axle Load

5200kg

Rear Axle Load

4800kg

Hydraulic Tank Capacity

90L

Frequency High

50Hz

Frequency Low

42Hz

Amplitude High

0.8mm

Amplitude Low

0.4mm

Overall Length

4.985m

Overall Width

1.925m

Overall Height

3.2m

Ground Clearance

270mm

Drum Width

1.75m

Water Tank Capacity

800L
