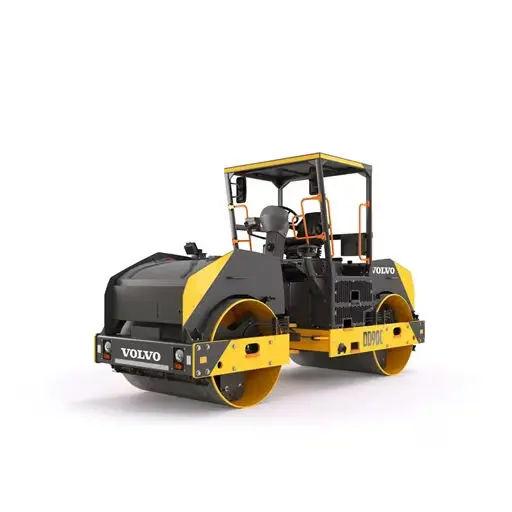

VOLVO DD90C tandem roller
Volvo Construction Equipment
Karnataka
The Volvo DD90C Tandem Roller is a high-performance compaction machine designed for reliability, precision, and ease of operation. With an operating weight of 8,700 kg and advanced features like dual amplitude vibration, high centrifugal force, and efficient water spray systems, it delivers consistent results on a variety of surfaces. Its powerful 55 kW VECV engine ensures smooth performance even under demanding site conditions. The articulated frame steering and optimized drum design allow for superior maneuverability in tight spaces. Ideal for road construction, airport runways, bridge work, and industrial flooring, the DD90C ensures uniform compaction with reduced operator fatigue. Equipped with auto vibration control, real-time speed monitoring, and a comfortable operator cabin, it stands out as a versatile choice for modern infrastructure development needs.
VOLVO DD90C tandem roller
Volvo Construction Equipment
Karnataka
The Volvo DD90C Tandem Roller is a high-performance compaction machine designed for reliability, precision, and ease of operation. With an operating weight of 8,700 kg and advanced features like dual amplitude vibration, high centrifugal force, and efficient water spray systems, it delivers consistent results on a variety of surfaces. Its powerful 55 kW VECV engine ensures smooth performance even under demanding site conditions. The articulated frame steering and optimized drum design allow for superior maneuverability in tight spaces. Ideal for road construction, airport runways, bridge work, and industrial flooring, the DD90C ensures uniform compaction with reduced operator fatigue. Equipped with auto vibration control, real-time speed monitoring, and a comfortable operator cabin, it stands out as a versatile choice for modern infrastructure development needs.
Product Description
The Volvo DD90C Tandem Roller is a high-performance compaction machine designed for reliability, pre...
View the full brochure
VOLVO DD90C tandem roller Comparison with Similar Tandem Roller
VOLVO DD90C tandem roller
Transmission Type
1
Max Travel Speed
1km/h
Max Working Speed
11km/h
Gradeability Without Vibration
11%
Gradeability With Vibration
1%
Service Brake Type
1
Parking Brake Type
111
Steering Type
1
Steering Angle
1°
Oscillation Angle
1°
Turning Radius
1m
Hydraulic Tank Capacity
1L
Frequency High
1Hz
Frequency Low
11Hz
Amplitude High
1mm
Amplitude Low
1mm
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
-
Water Tank Capacity
-
Fuel Tank Capacity
-
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Front Axle Load
-
Rear Axle Load
-
Operating Weight
-
Volvo DD90C Tandem Roller
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7 km/h
Gradeability Without Vibration
30%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame, center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
7.285 m
Hydraulic Tank Capacity
80L
Frequency High
50 Hz
Frequency Low
36 Hz
Amplitude High
1.0 mm
Amplitude Low
0.36mm
Overall Length
4.970 m
Overall Width
1.835 m
Overall Height
3.050m
Ground Clearance
305mm
Drum Width
1.676m
Water Tank Capacity
700L
Fuel Tank Capacity
180 L
Engine Brand
VECV
Engine Model
EE483TCI StageIV CEV
Engine Power
73.8 HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Front Axle Load
4.22kg
Rear Axle Load
4.48kg
Operating Weight
8.7Ton
Volvo DD100 Tandem Roller
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
11.4 km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
24.5%
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on front and rear drum drive motors
Steering Type
Center pivot (Articulated) steering
Steering Angle
40°
Oscillation Angle
10°
Turning Radius
3.558m
Hydraulic Tank Capacity
133 L
Frequency High
41.7Hz
Frequency Low
30.8 Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.086 m
Overall Width
2.845m
Overall Height
2.845m
Ground Clearance
0.430 mm
Drum Width
1.676m
Water Tank Capacity
984L
Fuel Tank Capacity
189L
Engine Brand
Cummins
Engine Model
QSB 4.5
Engine Power
129.9HP
Max Torque
-
Rated Speed
-
Displacement
-
Front Axle Load
5,200kg
Rear Axle Load
4,825kg
Operating Weight
10.025 Ton
Hamm HC 119iD Tandem Roller
Transmission Type
-
Max Travel Speed
12.0km/h
Max Working Speed
7.0km/h
Gradeability Without Vibration
53%
Gradeability With Vibration
48%
Service Brake Type
-
Parking Brake Type
-
Steering Type
Articulated steering
Steering Angle
33°
Oscillation Angle
10°
Turning Radius
4.260m
Hydraulic Tank Capacity
-
Frequency High
35Hz
Frequency Low
30Hz
Amplitude High
1.93mm
Amplitude Low
0.85mm
Overall Length
5.989m
Overall Width
2.280m
Overall Height
3.067m
Ground Clearance
470mm
Drum Width
2.140m
Water Tank Capacity
-
Fuel Tank Capacity
270L
Engine Brand
ASHOK LEYLAND
Engine Model
H4C510122
Engine Power
99.2HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Front Axle Load
6220kg
Rear Axle Load
4960kg
Operating Weight
11.18Ton
CASE 952 EX Tandem Roller
Transmission Type
-
Max Travel Speed
11.5km/h
Max Working Speed
5.5km/h
Gradeability Without Vibration
-
Gradeability With Vibration
36%
Service Brake Type
Hydrostatic
Parking Brake Type
SAHR (Spring Applied Hydraulically Released)
Steering Type
-
Steering Angle
-
Oscillation Angle
± 10˚°
Turning Radius
5.1m
Hydraulic Tank Capacity
70L
Frequency High
50Hz
Frequency Low
33Hz
Amplitude High
1.0mm
Amplitude Low
0.2mm
Overall Length
4.130m
Overall Width
1.905m
Overall Height
3.100m
Ground Clearance
244mm
Drum Width
-
Water Tank Capacity
-
Fuel Tank Capacity
140L
Engine Brand
Ashok Leyland
Engine Model
H4C4E7422
Engine Power
73.0HP
Max Torque
54.4Nm
Rated Speed
340rpm
Displacement
3.83L
Front Axle Load
4410kg
Rear Axle Load
4640kg
Operating Weight
9050Ton
