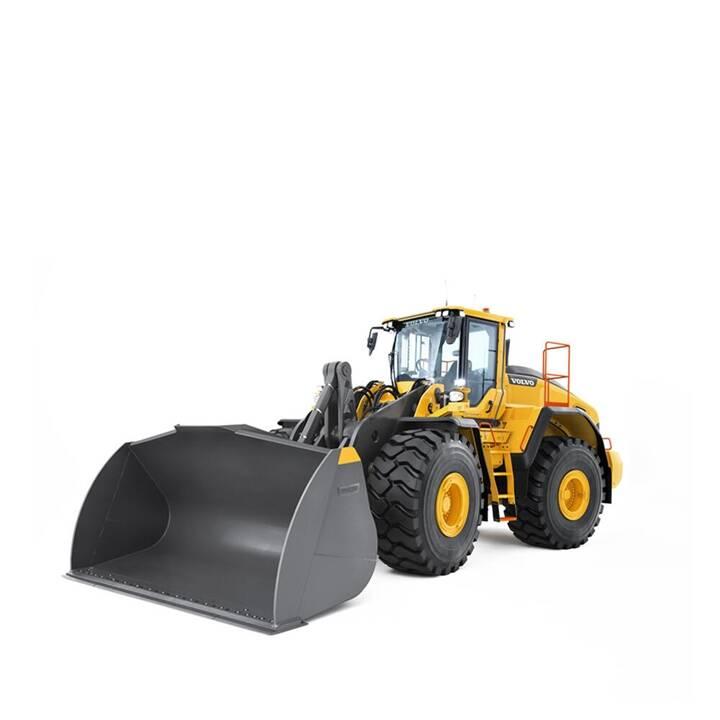

The Volvo L220H Wheel Loader is a powerhouse designed for maximum productivity and fuel efficiency. Equipped with the advanced OptiShift technology, it reduces fuel consumption by up to 18%, ensuring longer operating hours and sustained performance. With a static tipping load of up to 21,000 kg and a breakout force of 245 kN, this machine handles heavy loads with ease. Its versatile bucket capacity, ranging from 4.3 to 16 m³, makes it ideal for various material handling tasks. Powered by the D13F engine, the L220H delivers 280 kW at 1,300-1,400 rpm, ensuring robust performance. Weighing between 31,200 to 33,100 kg, the L220H is built to tackle the toughest jobs while maintaining exceptional efficiency and reliability on any construction site.
Volvo L220H Wheel Loader
Volvo Construction Equipment
Gujarat
The Volvo L220H Wheel Loader is a powerhouse designed for maximum productivity and fuel efficiency. Equipped with the advanced OptiShift technology, it reduces fuel consumption by up to 18%, ensuring longer operating hours and sustained performance. With a static tipping load of up to 21,000 kg and a breakout force of 245 kN, this machine handles heavy loads with ease. Its versatile bucket capacity, ranging from 4.3 to 16 m³, makes it ideal for various material handling tasks. Powered by the D13F engine, the L220H delivers 280 kW at 1,300-1,400 rpm, ensuring robust performance. Weighing between 31,200 to 33,100 kg, the L220H is built to tackle the toughest jobs while maintaining exceptional efficiency and reliability on any construction site.
Product Description
The Volvo L220H Wheel Loader is a powerhouse designed for maximum productivity and fuel efficiency. ...
View the full brochure
Volvo L220H Wheel Loader Comparison with Similar Wheel Loader
Volvo L220H Wheel Loader
Engine Brand
Volvo
Engine Model
D13F
Engine Power
375kW
Max Torque
2276Nm
Rated Speed
1300-1400rpm
Displacement
12.8L
Fuel Tank Capacity
366L
Hydraulic Oil Capacity
226L
Transmission Type
Volvo HTL 310
Number Of Gears (f/r)
-
Max Travel Speed (f)
36.5km/h
Max Travel Speed (r)
-
Service Brake Type
Wet Disc
Parking Brake Type
Wet Disc
Steering Type
Articulated
Steering Angle
37°
Oscillation Angle
15°
Turning Radius
-
Operating Weight
33.2kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
10080kg
Hydraulic Flow Rate
253L/min
Hydraulic Pressure
290Bar
Overall Length
9.27m
Overall Width
3.23m
Overall Height
5.33m
Ground Clearance
0.6mm
Max Dump Height
3.16m
Max Load Over Height
-
Max Reach At Full Height
-
Loader Bucket Capacity
5.2m³
Loader Arm Breakout Force
241.1kN
Front Axle Oscillation
15°
Battery Voltage
24V
Standard Tires (front/rear)
29.5 R25 L3
Liugong 856HE Max Electric Wheel Loader
Engine Brand
CATL
Engine Model
LFP
Engine Power
160kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
Planetary, power shift
Number Of Gears (f/r)
2/1
Max Travel Speed (f)
40km/h
Max Travel Speed (r)
13km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
Articulated
Steering Angle
-
Oscillation Angle
-
Turning Radius
-
Operating Weight
21000kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
100L/min
Hydraulic Pressure
250Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Max Dump Height
-
Max Load Over Height
-
Max Reach At Full Height
-
Loader Bucket Capacity
2.7–5.6m³
Loader Arm Breakout Force
-
Front Axle Oscillation
-
Battery Voltage
618V
Standard Tires (front/rear)
-
Liugong 870H Wheel Loader
Engine Brand
Cummins
Engine Model
QSL9.3
Engine Power
190kW
Max Torque
1187Nm
Rated Speed
2200rpm
Displacement
9.3L
Fuel Tank Capacity
330L
Hydraulic Oil Capacity
295L
Transmission Type
Countershaft, power shift
Number Of Gears (f/r)
4 / 3
Max Travel Speed (f)
36km/h
Max Travel Speed (r)
24.2km/h
Service Brake Type
24.2
Parking Brake Type
Drum
Steering Type
Articulated
Steering Angle
76°
Oscillation Angle
20°
Turning Radius
7.406m
Operating Weight
23.294kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
L/min
Hydraulic Pressure
250Bar
Overall Length
8.849m
Overall Width
3.216m
Overall Height
3.55m
Ground Clearance
460mm
Max Dump Height
3.105m
Max Load Over Height
4.46m
Max Reach At Full Height
1.32m
Loader Bucket Capacity
4.5m³
Loader Arm Breakout Force
200kN
Front Axle Oscillation
20°
Battery Voltage
-
Standard Tires (front/rear)
26.5-25-PR28/TT L-3
Komatsu WA470-6A Wheel Loader
Engine Brand
Komatsu
Engine Model
SAA6D125E-5
Engine Power
203kW
Max Torque
-
Rated Speed
2000rpm
Displacement
11.04L
Fuel Tank Capacity
413L
Hydraulic Oil Capacity
173L
Transmission Type
Full-powershift, countershaft type
Number Of Gears (f/r)
4/4
Max Travel Speed (f)
36.2km/h
Max Travel Speed (r)
36.2km/h
Service Brake Type
Hydraulically actuated, wet disc brakes
Parking Brake Type
Wet disc brake
Steering Type
Articulated, full-hydraulic power steering
Steering Angle
35°
Oscillation Angle
26°
Turning Radius
6.63m
Operating Weight
22.96kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
260L/min
Hydraulic Pressure
34.3Bar
Overall Length
8.825m
Overall Width
3.01m
Overall Height
3.5m
Ground Clearance
525mm
Max Dump Height
3.235m
Max Load Over Height
4.36m
Max Reach At Full Height
1.435m
Loader Bucket Capacity
5.2m³
Loader Arm Breakout Force
220kN
Front Axle Oscillation
26°
Battery Voltage
-
Standard Tires (front/rear)
23.5-25 or 26.5-25 (based on config)
Tata Hitachi ZW 225 CEV 5 Wheel Loader
Engine Brand
CUMMINS
Engine Model
QSB6.7
Engine Power
168kW
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.702L
Fuel Tank Capacity
255L
Hydraulic Oil Capacity
171L
Transmission Type
Torque converter, counter shaft type power shift
Number Of Gears (f/r)
5F/3R
Max Travel Speed (f)
36.9km/h
Max Travel Speed (r)
27.4km/h
Service Brake Type
Hydraulic wet disc
Parking Brake Type
Spring applied, dry disc
Steering Type
Articulated frame steering
Steering Angle
80°
Oscillation Angle
24°
Turning Radius
6.08m
Operating Weight
18220kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
271L/min
Hydraulic Pressure
274Bar
Overall Length
8.525m
Overall Width
2.785m
Overall Height
3.36m
Ground Clearance
450mm
Max Dump Height
2.885m
Max Load Over Height
5.5m
Max Reach At Full Height
1.23m
Loader Bucket Capacity
2.8m³
Loader Arm Breakout Force
182kN
Front Axle Oscillation
24°
Battery Voltage
24V
Standard Tires (front/rear)
23.5-25-20PR
