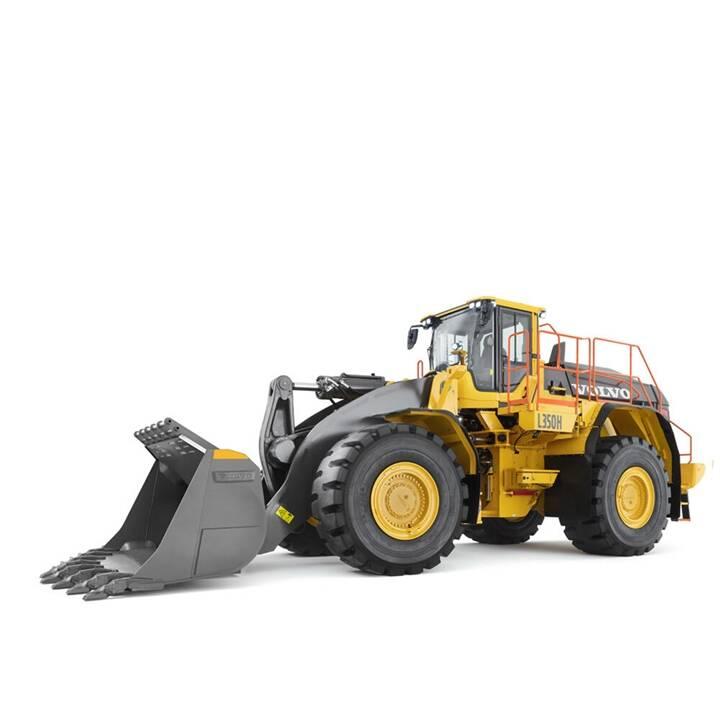

Volvo L350H Wheel Loader

Volvo Construction Equipment

Gujarat

The Volvo L350H Wheel Loader is a powerhouse designed to excel in demanding environments, from mining and quarrying to heavy infrastructure projects. Building on decades of wheel loader innovation, this machine combines advanced technology with robust engineering to deliver unmatched performance and reliability. Equipped with a Volvo D16E engine, it provides 395 kW of power and 2,550 Nm of torque, ensuring efficient material handling. With a static tipping load of 34,700 kg and a bucket capacity ranging from 6.2 to 12.7 m³, the L350H is engineered for heavy-duty tasks. Its durable construction, combined with features aimed at reducing operational costs, makes it an ideal choice for maximizing productivity and profitability in large-scale operations.

Product Description

The Volvo L350H Wheel Loader is a powerhouse designed to excel in demanding environments, from minin...

View the full brochure

Volvo L350H Wheel Loader Comparison with Similar Wheel Loader

Volvo L350H Wheel Loader

Volvo L350H Wheel Loader

Get Latest Price
Rating
4.4

Engine Brand

Volvo

Engine Model

D16E

Engine Power

397kW

Max Torque

2550Nm

Rated Speed

1700–1800rpm

Displacement

16.1L

Fuel Tank Capacity

540L

Hydraulic Oil Capacity

365L

Transmission Type

Volvo HTL 500, APS, ECM controlled

Number Of Gears (f/r)

4/4

Max Travel Speed (f)

37.7km/h

Max Travel Speed (r)

37.7km/h

Service Brake Type

Dual circuit, oil-cooled, wet disc brakes

Parking Brake Type

Dry, spring-applied, electro-hydraulically released

Steering Type

Load-sensing hydrostatic articulated steering

Steering Angle

±37°

Oscillation Angle

±12°

Turning Radius

-

Operating Weight

-

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

-

Hydraulic Flow Rate

827L/min

Hydraulic Pressure

29Bar

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

550mm

Max Dump Height

-

Max Load Over Height

-

Max Reach At Full Height

-

Loader Bucket Capacity

-

Loader Arm Breakout Force

-

Front Axle Oscillation

±12°

Battery Voltage

24V

Standard Tires (front/rear)

35/65 R33 L4

Currently Viewing
Liugong 856HE Max Electric Wheel Loader

Liugong 856HE Max Electric Wheel Loader

Get Latest Price
Rating
4.4

Engine Brand

CATL

Engine Model

LFP

Engine Power

160kW

Max Torque

-

Rated Speed

-

Displacement

-

Fuel Tank Capacity

Electric – not applicableL

Hydraulic Oil Capacity

100L

Transmission Type

Planetary, power shift

Number Of Gears (f/r)

2/1

Max Travel Speed (f)

40km/h

Max Travel Speed (r)

13km/h

Service Brake Type

Fully Hydraulic

Parking Brake Type

Hydraulic Wet Brake + Manual Handle Control

Steering Type

Articulated

Steering Angle

-

Oscillation Angle

±8°

Turning Radius

4.966m

Operating Weight

21000kg

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

-

Hydraulic Flow Rate

100L/min

Hydraulic Pressure

250Bar

Overall Length

6.3m

Overall Width

2.25m

Overall Height

3.25m

Ground Clearance

350mm

Max Dump Height

3.77m

Max Load Over Height

3.55m

Max Reach At Full Height

1.05m

Loader Bucket Capacity

2.7–5.6

Loader Arm Breakout Force

137kN

Front Axle Oscillation

±8°

Battery Voltage

618V

Standard Tires (front/rear)

16/70-20 PR14/TT L-3

liugong 818h wheel loader

liugong 818h wheel loader

Get Latest Price
Rating
4.4

Engine Brand

Kirloskar

Engine Model

4R1040T-I (T)

Engine Power

54.8kW

Max Torque

400Nm

Rated Speed

2200rpm

Displacement

4.76L

Fuel Tank Capacity

88L

Hydraulic Oil Capacity

65L

Transmission Type

Countershaft Powershift, 3 Element Single Stage

Number Of Gears (f/r)

Forward 2 / Reverse 1

Max Travel Speed (f)

8/25km/h

Max Travel Speed (r)

8/25km/h

Service Brake Type

Air Over Hydraulic Caliper Disc Brake

Parking Brake Type

Mechanical Actuation

Steering Type

Articulated Hydrostatic Steering

Steering Angle

± 35°°

Oscillation Angle

± 10°°

Turning Radius

R1:5.28 R2:4.63 m

Operating Weight

6400kg

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

148Bar

Overall Length

5.96m

Overall Width

2.02m

Overall Height

2.96m

Ground Clearance

285mm

Max Dump Height

2.68m

Max Load Over Height

2.94m

Max Reach At Full Height

0.92m

Loader Bucket Capacity

1.2

Loader Arm Breakout Force

45kN

Front Axle Oscillation

± 10°°

Battery Voltage

12V

Standard Tires (front/rear)

16/70-20 PR14

Liugong 838T MAX WHEEL LOADER

Liugong 838T MAX WHEEL LOADER

Get Latest Price
Rating
4.4

Engine Brand

Ashok Leyland

Engine Model

H6C516022

Engine Power

118kW

Max Torque

650Nm

Rated Speed

2200rpm

Displacement

-

Fuel Tank Capacity

180L

Hydraulic Oil Capacity

104L

Transmission Type

Powershift

Number Of Gears (f/r)

2 / 1

Max Travel Speed (f)

17/40km/h

Max Travel Speed (r)

17km/h

Service Brake Type

Air Over Hydraulic Drum Brake

Parking Brake Type

Mechanical Actuation

Steering Type

Articulated

Steering Angle

38°

Oscillation Angle

11°

Turning Radius

5.05m

Operating Weight

12324kg

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure

210Bar

Overall Length

7.41m

Overall Width

2.46m

Overall Height

3.32m

Ground Clearance

380mm

Max Dump Height

2.95m

Max Load Over Height

3.39m

Max Reach At Full Height

1.15m

Loader Bucket Capacity

2.4

Loader Arm Breakout Force

102kN

Front Axle Oscillation

11°

Battery Voltage

24V

Standard Tires (front/rear)

17.5–25 PR16

LIUGONG 838TE WHEEL LOADERS

LIUGONG 838TE WHEEL LOADERS

Get Latest Price
Rating
4.4

Engine Brand

Electric (Battery Powered)

Engine Model

-

Engine Power

Peak Power Drive Motor: 120 kW Peak Power Hydraulic Motor: 95 kWkW

Max Torque

-

Rated Speed

-

Displacement

-

Fuel Tank Capacity

-

Hydraulic Oil Capacity

130L

Transmission Type

Planetary electronic control shift

Number Of Gears (f/r)

2/1

Max Travel Speed (f)

40km/h

Max Travel Speed (r)

15km/h

Service Brake Type

Full hydraulic

Parking Brake Type

Drum

Steering Type

Large displacement steering

Steering Angle

38°

Oscillation Angle

10°

Turning Radius

Bucket Carry: 6218 mm (6.21 m) Outside of Tire: 5840 mm (5.84 m)m

Operating Weight

-

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

-

Hydraulic Flow Rate

13625L/min

Hydraulic Pressure

210Bar

Overall Length

7.50m

Overall Width

3.2m

Overall Height

3.2m

Ground Clearance

328mm

Max Dump Height

2.95m

Max Load Over Height

3.85m

Max Reach At Full Height

1.14m

Loader Bucket Capacity

2.4

Loader Arm Breakout Force

125kN

Front Axle Oscillation

10°

Battery Voltage

DC 624 VV

Standard Tires (front/rear)

17.5–25 PR16 L-3 TT
