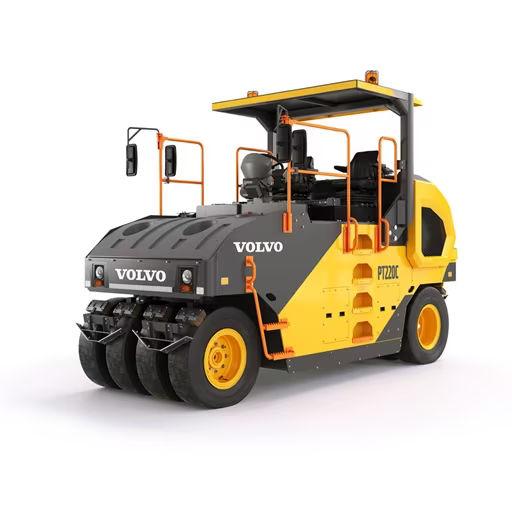

Volvo PT220C Pneumatic Roller
Volvo Construction Equipment
Karnataka
The Volvo PT220C Pneumatic Roller is engineered to deliver exceptional compaction performance tailored for the Indian market. Equipped with a fuel-efficient VECV engine, this machine combines power, reliability, and cost-effectiveness for maximum productivity. Its 10,500 kg operating weight and 1,980 mm rolling width ensure superior results across a variety of applications, from highways and airport runways to urban infrastructure projects. Designed for operator comfort and extended uptime, the PT220C offers unmatched versatility and ease of use, ensuring seamless operation in demanding environments. Whether stabilizing soil or achieving a smooth asphalt finish, this pneumatic roller delivers superb mat quality with precision. Built to enhance efficiency and project profitability, the PT220C sets new standards in compaction excellence.
Volvo PT220C Pneumatic Roller
Volvo Construction Equipment
Karnataka
The Volvo PT220C Pneumatic Roller is engineered to deliver exceptional compaction performance tailored for the Indian market. Equipped with a fuel-efficient VECV engine, this machine combines power, reliability, and cost-effectiveness for maximum productivity. Its 10,500 kg operating weight and 1,980 mm rolling width ensure superior results across a variety of applications, from highways and airport runways to urban infrastructure projects. Designed for operator comfort and extended uptime, the PT220C offers unmatched versatility and ease of use, ensuring seamless operation in demanding environments. Whether stabilizing soil or achieving a smooth asphalt finish, this pneumatic roller delivers superb mat quality with precision. Built to enhance efficiency and project profitability, the PT220C sets new standards in compaction excellence.
Product Description
The Volvo PT220C Pneumatic Roller is engineered to deliver exceptional compaction performance tailor...
View the full brochure
Volvo PT220C Pneumatic Roller Comparison with Similar Pneumatic Roller
Volvo PT220C Pneumatic Roller
Engine Brand
VECV
Engine Model
EE494TCI-HPCR
Engine Power
74kW
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
200L
Hydraulic Oil Capacity
105L
Transmission Type
Closed-loop hydrostatic
Number Of Gears (f/r)
-
Max Travel Speed (f)
16km/h
Max Travel Speed (r)
8km/h
Gradeability
23%
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both rear drive motors
Steering Type
Hydraulic Power assisted
Steering Angle
-
Oscillation Angle
-
Turning Radius (inside)
6800mm
Turning Radius (outside)
-
Operating Weight
10.5kg
Max Operating Weight
24.0kg
Max Ballast
13.5kg
Compaction Width
1980mm
Ground Clearance
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
5060mm
Overall Width
2270mm
Overall Height
3430mm
Wheelbase
3520mm
Water Tank Capacity
550L
Water Spray System
Pressure spray tire wetting system with LDPE tank
Nozzles
Hand-serviceable spray nozzles
Battery Capacity
CCA 750Ah
Tire Type
11.0 - 20. 18PR
Tire Pressure (min/max)
3.5 / 8.0kPa/bar

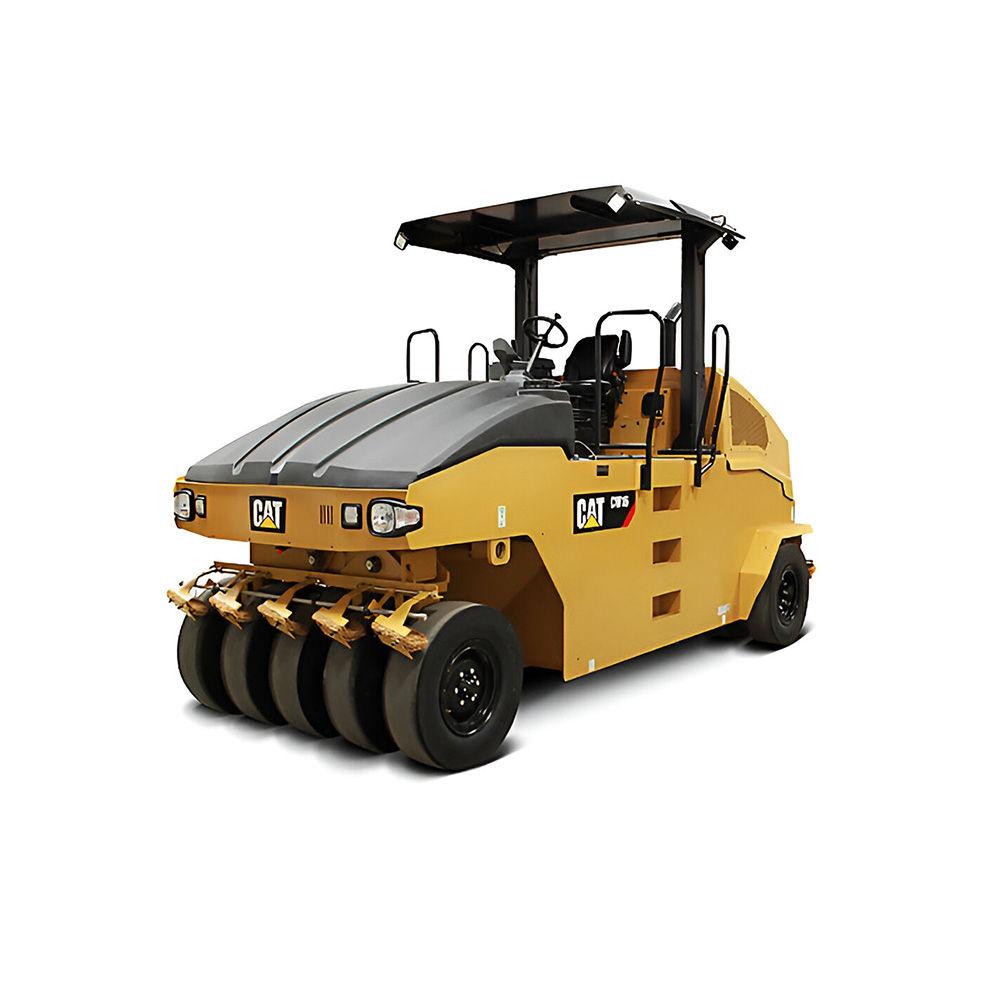

CAT CW16-9 Wheel Pneumatic Roller
Engine Brand
-
Engine Model
C3.4B
Engine Power
75kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
146L
Hydraulic Oil Capacity
-
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
19km/h
Max Travel Speed (r)
-
Gradeability
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (inside)
3761 mm
Turning Radius (outside)
6455 mm
Operating Weight
5.2 kg
Max Operating Weight
15.0 kg
Max Ballast
9.8kg
Compaction Width
1728 mm
Ground Clearance
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
4290mm
Overall Width
-
Overall Height
3000mm
Wheelbase
348mm
Water Tank Capacity
-
Water Spray System
-
Nozzles
-
Battery Capacity
-
Tire Type
-
Tire Pressure (min/max)
-
L&T 2490HD Pneumatic Tyred Roller
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
-
Max Travel Speed (r)
-
Gradeability
-
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius (inside)
-
Turning Radius (outside)
-
Operating Weight
-
Max Operating Weight
-
Max Ballast
-
Compaction Width
-
Ground Clearance
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Wheelbase
-
Water Tank Capacity
-
Water Spray System
-
Nozzles
-
Battery Capacity
-
Tire Type
-
Tire Pressure (min/max)
-
Sany SPR160C-8 Pneumatic Roller
Engine Brand
DONGFENG CUMMINS
Engine Model
4BTAA3.9-C125
Engine Power
93kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
14km/h
Max Travel Speed (r)
7.6km/h
Gradeability
25%
Service Brake Type
-
Parking Brake Type
-
Steering Type
30
Steering Angle
-
Oscillation Angle
-
Turning Radius (inside)
17000mm
Turning Radius (outside)
-
Operating Weight
10.0kg
Max Operating Weight
16.0kg
Max Ballast
-
Compaction Width
2085mm
Ground Clearance
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Wheelbase
3750mm
Water Tank Capacity
-
Water Spray System
-
Nozzles
-
Battery Capacity
-
Tire Type
-
Tire Pressure (min/max)
200~800kPa/bar
Sany SPR200-5 Pneumatic roller
Engine Brand
Cummins
Engine Model
4BTAA3.9-C125
Engine Power
93kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
160L
Hydraulic Oil Capacity
100L
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
14km/h
Max Travel Speed (r)
-
Gradeability
25%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
30°
Oscillation Angle
-
Turning Radius (inside)
16850mm
Turning Radius (outside)
-
Operating Weight
-
Max Operating Weight
20000kg
Max Ballast
-
Compaction Width
-
Ground Clearance
350mm
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
5000mm
Overall Width
2085mm
Overall Height
3275mm
Wheelbase
3750mm
Water Tank Capacity
500L
Water Spray System
-
Nozzles
-
Battery Capacity
-
Tire Type
-
Tire Pressure (min/max)
-
