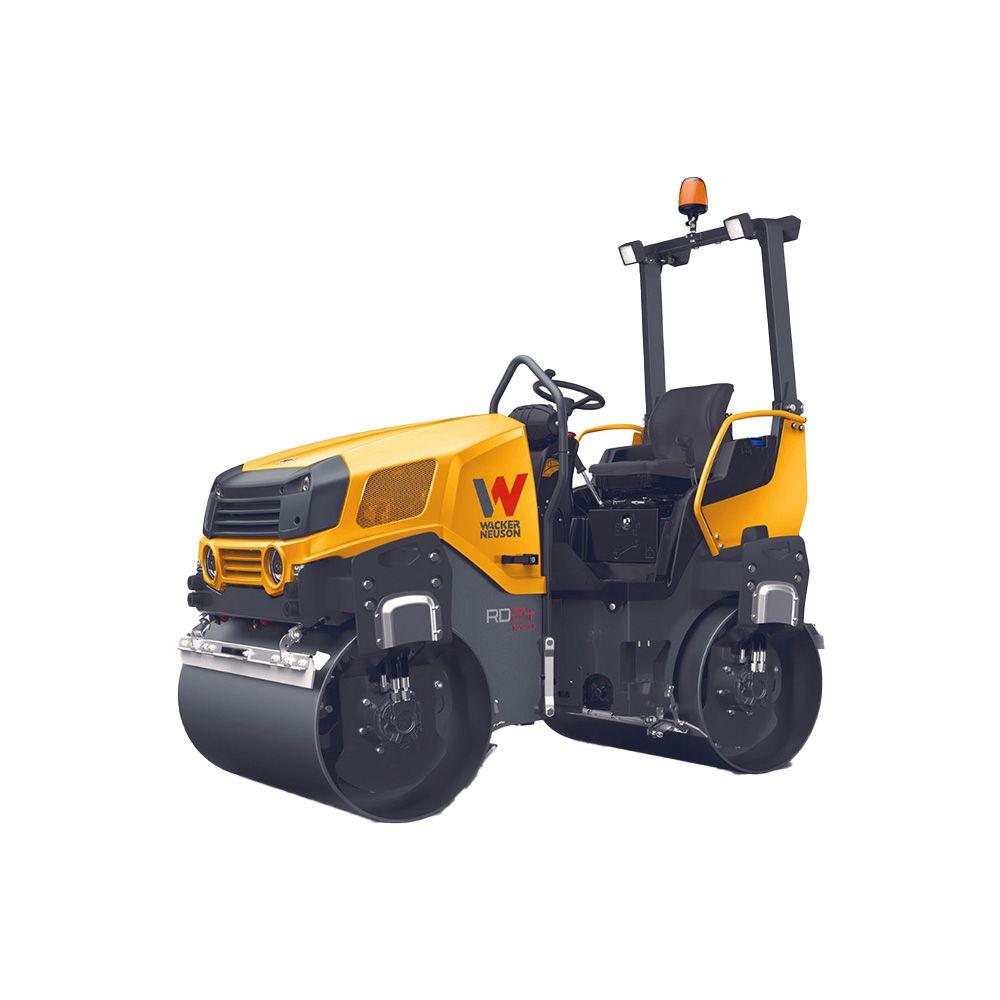

Wacker Neuson RD24 Tandem Roller

The RD24 Tandem Roller is a robust and versatile compaction solution designed for optimal performance across various surfaces. Equipped with wide drums and high centrifugal force, it delivers thorough compaction for large areas, ensuring even and consistent treatment. The RD24 features adjustable oscillation frequency and amplitude settings, allowing for precise control tailored to different materials and conditions. Its efficient travel speed and substantial compaction force enhance productivity, reducing the need for multiple passes. The roller’s impressive gradeability and ground clearance make it suitable for handling uneven terrain and inclines. With advanced vibration and centrifugal force controls, the RD24 ensures operational safety by minimizing impact on surrounding structures and providing excellent stability during use.

Product Description

The RD24 Tandem Roller is a robust and versatile compaction solution designed for optimal performanc...

View the full brochure

Wacker Neuson RD24 Tandem Roller Comparison with Similar Tandem Roller

Wacker Neuson	RD24 Tandem Roller

Wacker Neuson RD24 Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

Kubota

Engine Model

D1703

Engine Power

24.8HP

Max Torque

-

Rated Speed

-

Fuel Tank Capacity

42.01L

Displacement

-

Transmission Type

-

Max Travel Speed

10.1km/h

Max Working Speed

-

Gradeability Without Vibration

40.0%

Gradeability With Vibration

30.0%

Service Brake Type

-

Parking Brake Type

-

Steering Type

-

Steering Angle

-

Oscillation Angle

+/-8.0°

Turning Radius

-

Operating Weight

2.47Ton

Front Axle Load

-

Rear Axle Load

-

Hydraulic Tank Capacity

-

Frequency High

65.0Hz

Frequency Low

51.0Hz

Amplitude High

0.44mm

Amplitude Low

0.44mm

Overall Length

2.52m

Overall Width

1.10m

Overall Height

2.37m

Ground Clearance

-

Drum Width

1.00m

Water Tank Capacity

180.18L

Currently Viewing
Volvo DD90C Tandem Roller

Volvo DD90C Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

VECV

Engine Model

EE483TCI StageIV CEV

Engine Power

73.8 HP

Max Torque

-

Rated Speed

2200rpm

Fuel Tank Capacity

180 L

Displacement

-

Transmission Type

Closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

12km/h

Max Working Speed

7 km/h

Gradeability Without Vibration

30%

Gradeability With Vibration

-

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on both drum drives

Steering Type

Articulated frame, center pivot steering

Steering Angle

30°

Oscillation Angle

10°

Turning Radius

7.285 m

Operating Weight

8.7Ton

Front Axle Load

4.22kg

Rear Axle Load

4.48kg

Hydraulic Tank Capacity

80L

Frequency High

50 Hz

Frequency Low

36 Hz

Amplitude High

1.0 mm

Amplitude Low

0.36mm

Overall Length

4.970 m

Overall Width

1.835 m

Overall Height

3.050m

Ground Clearance

305mm

Drum Width

1.676m

Water Tank Capacity

700L

Volvo DD90B Tandem Roller

Volvo DD90B Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

Kirloskar

Engine Model

4R1040TC BS -III (CEV)

Engine Power

75.1HP

Max Torque

-

Rated Speed

2200rpm

Fuel Tank Capacity

145L

Displacement

-

Transmission Type

closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

13km/h

Max Working Speed

7km/h

Gradeability Without Vibration

26%

Gradeability With Vibration

-

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on both drum drives

Steering Type

Articulated frame center pivot steering

Steering Angle

30°

Oscillation Angle

10°

Turning Radius

6.89m

Operating Weight

8.55Ton

Front Axle Load

4400kg

Rear Axle Load

4150kg

Hydraulic Tank Capacity

85L

Frequency High

50Hz

Frequency Low

36Hz

Amplitude High

1.0mm

Amplitude Low

0.36mm

Overall Length

4.7m

Overall Width

1.835m

Overall Height

3.0m

Ground Clearance

305mm

Drum Width

1.675m

Water Tank Capacity

800L

Volvo DD100 Tandem Roller

Volvo DD100 Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

QSB 4.5

Engine Power

129.9HP

Max Torque

-

Rated Speed

-

Fuel Tank Capacity

189L

Displacement

-

Transmission Type

Closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

11.4 km/h

Max Working Speed

-

Gradeability Without Vibration

-

Gradeability With Vibration

24.5%

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on front and rear drum drive motors

Steering Type

Center pivot (Articulated) steering

Steering Angle

40°

Oscillation Angle

10°

Turning Radius

3.558m

Operating Weight

10.025 Ton

Front Axle Load

5,200kg

Rear Axle Load

4,825kg

Hydraulic Tank Capacity

133 L

Frequency High

41.7Hz

Frequency Low

30.8 Hz

Amplitude High

1.01mm

Amplitude Low

0.41mm

Overall Length

5.086 m

Overall Width

2.845m

Overall Height

2.845m

Ground Clearance

0.430 mm

Drum Width

1.676m

Water Tank Capacity

984L

Volvo DD100C Tandem Roller

Volvo DD100C Tandem Roller

Get Latest Price
Rating
4.4

Engine Brand

VECV

Engine Model

EE494TCI-HPCR

Engine Power

99.2HP

Max Torque

-

Rated Speed

2200rpm

Fuel Tank Capacity

185L

Displacement

-

Transmission Type

Closed-loop hydrostatic, parallel circuit to both drums

Max Travel Speed

12km/h

Max Working Speed

7km/h

Gradeability Without Vibration

26%

Gradeability With Vibration

-

Service Brake Type

Dynamic hydrostatic through propulsion system

Parking Brake Type

SAHR on both drum drives

Steering Type

Articulated frame center pivot steering

Steering Angle

38°

Oscillation Angle

10°

Turning Radius

5.7m

Operating Weight

10.6Ton

Front Axle Load

5160kg

Rear Axle Load

4840kg

Hydraulic Tank Capacity

135L

Frequency High

42Hz

Frequency Low

30Hz

Amplitude High

1.01mm

Amplitude Low

0.41mm

Overall Length

5.25m

Overall Width

2.06m

Overall Height

2.87m

Ground Clearance

370mm

Drum Width

1.676m

Water Tank Capacity

492L
