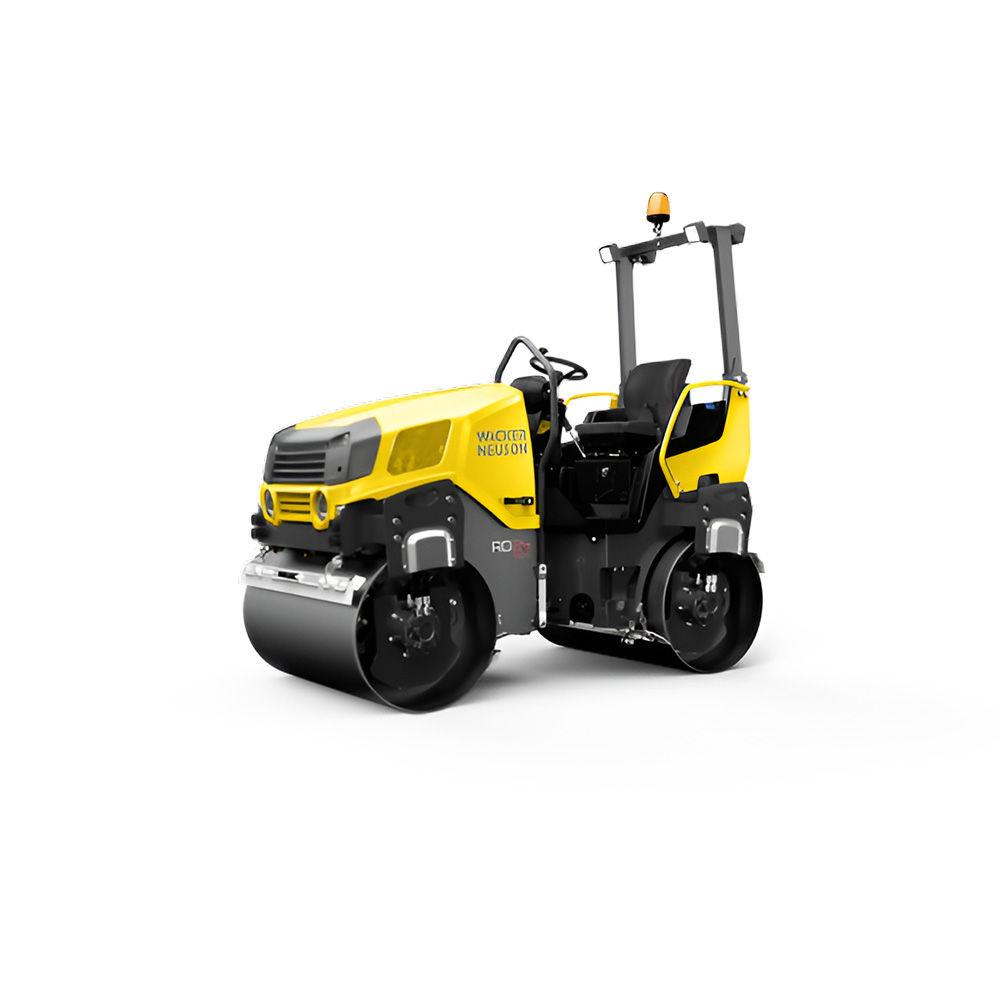

Wacker Neuson RD28 Tandem Roller
The RD28 Tandem Roller delivers exceptional performance for a range of compaction tasks with its robust design and advanced features. Boasting an operating weight of up to 14,900 kg and a wide drum width, it ensures efficient compaction of various surfaces, from roadways to pavements. The RD28’s adjustable vibration frequency and amplitude offer versatility for different material types, while its high centrifugal force ensures thorough surface treatment. With excellent gradeability and ground clearance, it performs reliably on inclines and uneven terrain. Enhanced with features like a large water tank for effective dust suppression and a powerful engine for smooth operation, the RD28 is engineered for both productivity and durability in demanding environments.
Wacker Neuson RD28 Tandem Roller
The RD28 Tandem Roller delivers exceptional performance for a range of compaction tasks with its robust design and advanced features. Boasting an operating weight of up to 14,900 kg and a wide drum width, it ensures efficient compaction of various surfaces, from roadways to pavements. The RD28’s adjustable vibration frequency and amplitude offer versatility for different material types, while its high centrifugal force ensures thorough surface treatment. With excellent gradeability and ground clearance, it performs reliably on inclines and uneven terrain. Enhanced with features like a large water tank for effective dust suppression and a powerful engine for smooth operation, the RD28 is engineered for both productivity and durability in demanding environments.
Product Description
The RD28 Tandem Roller delivers exceptional performance for a range of compaction tasks with its rob...
View the full brochure
Wacker Neuson RD28 Tandem Roller Comparison with Similar Tandem Roller

Wacker Neuson RD28 Tandem Roller
Transmission Type
-
Max Travel Speed
10.13km/h
Max Working Speed
-
Gradeability Without Vibration
40.0%
Gradeability With Vibration
30.0%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
+/-8.0°
Turning Radius
-
Operating Weight
2.69Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
-
Frequency High
65.0Hz
Frequency Low
51.0Hz
Amplitude High
0.44mm
Amplitude Low
0.44mm
Overall Length
2.52m
Overall Width
1.31m
Overall Height
1.75m
Ground Clearance
-
Drum Width
1.19m
Water Tank Capacity
180.18L
Fuel Tank Capacity
42.01L
Engine Brand
Kubota
Engine Model
D1703
Engine Power
24.8HP
Max Torque
-
Rated Speed
-
Displacement
-

Volvo DD90C Tandem Roller
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7 km/h
Gradeability Without Vibration
30%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame, center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
7.285 m
Operating Weight
8.7Ton
Front Axle Load
4.22kg
Rear Axle Load
4.48kg
Hydraulic Tank Capacity
80L
Frequency High
50 Hz
Frequency Low
36 Hz
Amplitude High
1.0 mm
Amplitude Low
0.36mm
Overall Length
4.970 m
Overall Width
1.835 m
Overall Height
3.050m
Ground Clearance
305mm
Drum Width
1.676m
Water Tank Capacity
700L
Fuel Tank Capacity
180 L
Engine Brand
VECV
Engine Model
EE483TCI StageIV CEV
Engine Power
73.8 HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-

Volvo DD90B Tandem Roller
Transmission Type
closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
13km/h
Max Working Speed
7km/h
Gradeability Without Vibration
26%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
6.89m
Operating Weight
8.55Ton
Front Axle Load
4400kg
Rear Axle Load
4150kg
Hydraulic Tank Capacity
85L
Frequency High
50Hz
Frequency Low
36Hz
Amplitude High
1.0mm
Amplitude Low
0.36mm
Overall Length
4.7m
Overall Width
1.835m
Overall Height
3.0m
Ground Clearance
305mm
Drum Width
1.675m
Water Tank Capacity
800L
Fuel Tank Capacity
145L
Engine Brand
Kirloskar
Engine Model
4R1040TC BS -III (CEV)
Engine Power
75.1HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-

Volvo DD100 Tandem Roller
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
11.4 km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
24.5%
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on front and rear drum drive motors
Steering Type
Center pivot (Articulated) steering
Steering Angle
40°
Oscillation Angle
10°
Turning Radius
3.558m
Operating Weight
10.025 Ton
Front Axle Load
5,200kg
Rear Axle Load
4,825kg
Hydraulic Tank Capacity
133 L
Frequency High
41.7Hz
Frequency Low
30.8 Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.086 m
Overall Width
2.845m
Overall Height
2.845m
Ground Clearance
0.430 mm
Drum Width
1.676m
Water Tank Capacity
984L
Fuel Tank Capacity
189L
Engine Brand
Cummins
Engine Model
QSB 4.5
Engine Power
129.9HP
Max Torque
-
Rated Speed
-
Displacement
-

Volvo DD100C Tandem Roller
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7km/h
Gradeability Without Vibration
26%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame center pivot steering
Steering Angle
38°
Oscillation Angle
10°
Turning Radius
5.7m
Operating Weight
10.6Ton
Front Axle Load
5160kg
Rear Axle Load
4840kg
Hydraulic Tank Capacity
135L
Frequency High
42Hz
Frequency Low
30Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.25m
Overall Width
2.06m
Overall Height
2.87m
Ground Clearance
370mm
Drum Width
1.676m
Water Tank Capacity
492L
Fuel Tank Capacity
185L
Engine Brand
VECV
Engine Model
EE494TCI-HPCR
Engine Power
99.2HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
