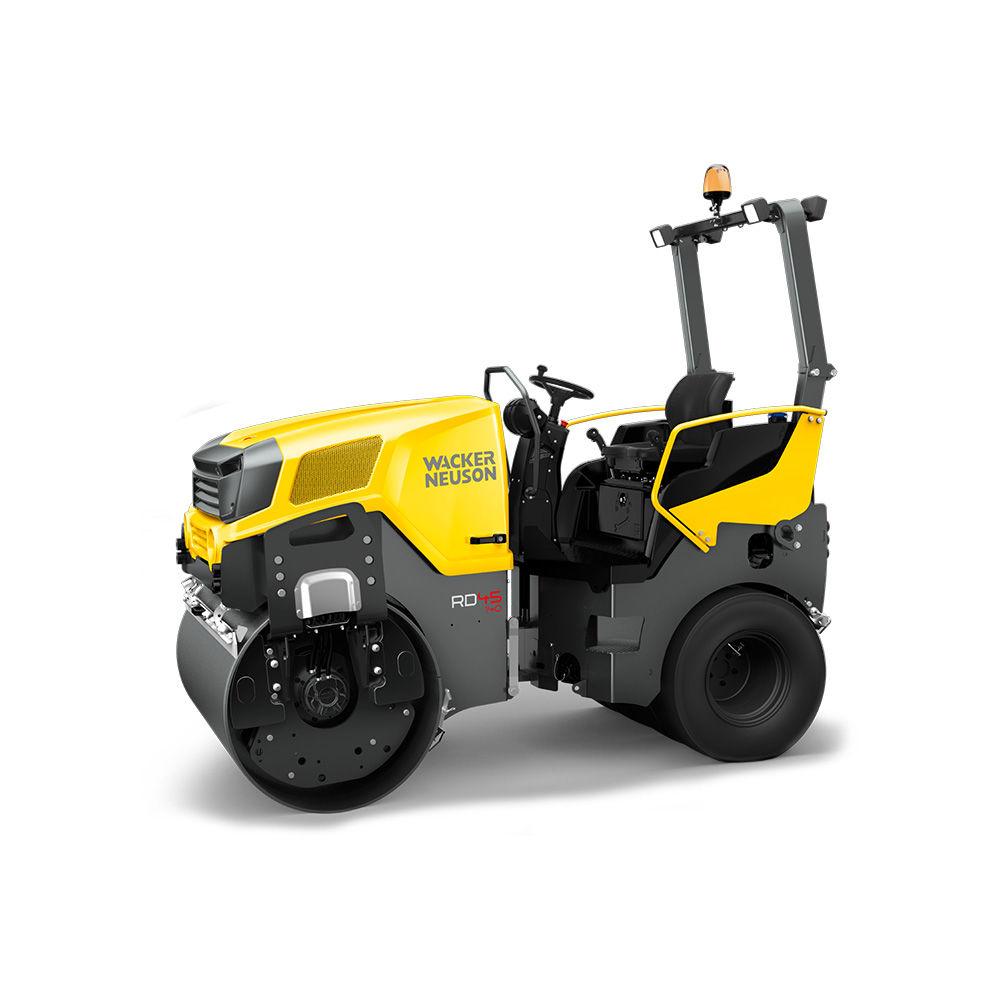

Wacker Neuson RD45 Tandem Roller
The Wacker Neuson RD45 Tandem Roller combines power and precision for top-notch compaction results. Designed with a balanced weight distribution on both drums, it ensures even compaction and stability across various surfaces. Its compact design enhances maneuverability, making it ideal for tight urban spaces and precise edge work. The roller's ergonomic work platform and low vibration design improve operator comfort and efficiency. With excellent 360° visibility and a high curb clearance, the RD45 allows for effective compaction close to walls and obstacles. The intuitive operator panel and foldable ROPS structure further enhance safety and ease of use. Whether for road construction or urban projects, the RD45 delivers exceptional performance and reliability.
Wacker Neuson RD45 Tandem Roller
The Wacker Neuson RD45 Tandem Roller combines power and precision for top-notch compaction results. Designed with a balanced weight distribution on both drums, it ensures even compaction and stability across various surfaces. Its compact design enhances maneuverability, making it ideal for tight urban spaces and precise edge work. The roller's ergonomic work platform and low vibration design improve operator comfort and efficiency. With excellent 360° visibility and a high curb clearance, the RD45 allows for effective compaction close to walls and obstacles. The intuitive operator panel and foldable ROPS structure further enhance safety and ease of use. Whether for road construction or urban projects, the RD45 delivers exceptional performance and reliability.
Product Description
The Wacker Neuson RD45 Tandem Roller combines power and precision for top-notch compaction results. ...
Wacker Neuson RD45 Tandem Roller Comparison with Similar Tandem Roller

Wacker Neuson RD45 Tandem Roller
Frequency High
60.0Hz
Frequency Low
51.0Hz
Amplitude High
0.51mm
Amplitude Low
0.30mm
Overall Length
2.96m
Overall Width
1.50m
Overall Height
2.72m
Ground Clearance
-
Drum Width
1.379m
Water Tank Capacity
285.0415L
Fuel Tank Capacity
73.05L
Engine Brand
Kubota
Engine Model
V2403-CR
Engine Power
50.2HP
Max Torque
-
Rated Speed
-
Displacement
-
Transmission Type
-
Max Travel Speed
10.94km/h
Max Working Speed
-
Gradeability Without Vibration
40%
Gradeability With Vibration
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
+/-8.0°
Turning Radius
-
Operating Weight
4.43Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
-

Volvo DD90C Tandem Roller
Frequency High
50 Hz
Frequency Low
36 Hz
Amplitude High
1.0 mm
Amplitude Low
0.36mm
Overall Length
4.970 m
Overall Width
1.835 m
Overall Height
3.050m
Ground Clearance
305mm
Drum Width
1.676m
Water Tank Capacity
700L
Fuel Tank Capacity
180 L
Engine Brand
VECV
Engine Model
EE483TCI StageIV CEV
Engine Power
73.8 HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7 km/h
Gradeability Without Vibration
30%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame, center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
7.285 m
Operating Weight
8.7Ton
Front Axle Load
4.22kg
Rear Axle Load
4.48kg
Hydraulic Tank Capacity
80L

Volvo DD90B Tandem Roller
Frequency High
50Hz
Frequency Low
36Hz
Amplitude High
1.0mm
Amplitude Low
0.36mm
Overall Length
4.7m
Overall Width
1.835m
Overall Height
3.0m
Ground Clearance
305mm
Drum Width
1.675m
Water Tank Capacity
800L
Fuel Tank Capacity
145L
Engine Brand
Kirloskar
Engine Model
4R1040TC BS -III (CEV)
Engine Power
75.1HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Transmission Type
closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
13km/h
Max Working Speed
7km/h
Gradeability Without Vibration
26%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
6.89m
Operating Weight
8.55Ton
Front Axle Load
4400kg
Rear Axle Load
4150kg
Hydraulic Tank Capacity
85L

Volvo DD100 Tandem Roller
Frequency High
41.7Hz
Frequency Low
30.8 Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.086 m
Overall Width
2.845m
Overall Height
2.845m
Ground Clearance
0.430 mm
Drum Width
1.676m
Water Tank Capacity
984L
Fuel Tank Capacity
189L
Engine Brand
Cummins
Engine Model
QSB 4.5
Engine Power
129.9HP
Max Torque
-
Rated Speed
-
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
11.4 km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
24.5%
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on front and rear drum drive motors
Steering Type
Center pivot (Articulated) steering
Steering Angle
40°
Oscillation Angle
10°
Turning Radius
3.558m
Operating Weight
10.025 Ton
Front Axle Load
5,200kg
Rear Axle Load
4,825kg
Hydraulic Tank Capacity
133 L

Volvo DD100C Tandem Roller
Frequency High
42Hz
Frequency Low
30Hz
Amplitude High
1.01mm
Amplitude Low
0.41mm
Overall Length
5.25m
Overall Width
2.06m
Overall Height
2.87m
Ground Clearance
370mm
Drum Width
1.676m
Water Tank Capacity
492L
Fuel Tank Capacity
185L
Engine Brand
VECV
Engine Model
EE494TCI-HPCR
Engine Power
99.2HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7km/h
Gradeability Without Vibration
26%
Gradeability With Vibration
-
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame center pivot steering
Steering Angle
38°
Oscillation Angle
10°
Turning Radius
5.7m
Operating Weight
10.6Ton
Front Axle Load
5160kg
Rear Axle Load
4840kg
Hydraulic Tank Capacity
135L
