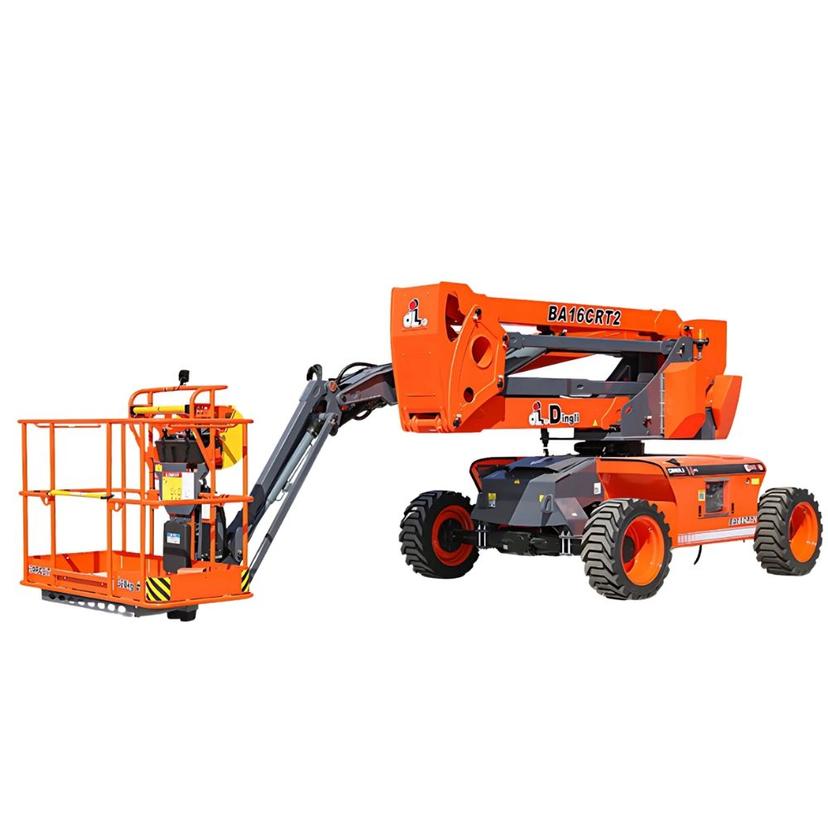

Dingli BA16CRT2 Boom Lift
DINGLI
Haryana
The Dingli BA16CRT2 Boom Lift is a versatile and high-performance lifting solution ideal for a wide range of applications. With a maximum working height of 16.27m and a platform capacity of 320kg, it is perfect for tasks like building facade maintenance, industrial inspections, and construction projects. The lift features a 360° continuous turret rotation, allowing easy access to difficult-to-reach areas, while its 180° platform rotation and 132° jib movement provide flexibility for tasks like window cleaning and event setups. Its compact design, with flatbed transport dimensions of 5.17m × 2.44m × 2.58m, makes it easy to transport in standard containers. With excellent gradeability, a high travel speed, and advanced safety features, the Dingli BA16CRT2 is a reliable and efficient solution for both indoor and outdoor lifting operations.
Dingli BA16CRT2 Boom Lift
DINGLI
Haryana
The Dingli BA16CRT2 Boom Lift is a versatile and high-performance lifting solution ideal for a wide range of applications. With a maximum working height of 16.27m and a platform capacity of 320kg, it is perfect for tasks like building facade maintenance, industrial inspections, and construction projects. The lift features a 360° continuous turret rotation, allowing easy access to difficult-to-reach areas, while its 180° platform rotation and 132° jib movement provide flexibility for tasks like window cleaning and event setups. Its compact design, with flatbed transport dimensions of 5.17m × 2.44m × 2.58m, makes it easy to transport in standard containers. With excellent gradeability, a high travel speed, and advanced safety features, the Dingli BA16CRT2 is a reliable and efficient solution for both indoor and outdoor lifting operations.
Product Description
The Dingli BA16CRT2 Boom Lift is a versatile and high-performance lifting solution ideal for a wide ...
View the full brochure
Dingli BA16CRT2 Boom Lift Comparison with Similar Articulating Boom Lift
Dingli BA16CRT2 Boom Lift
Engine Brand
Kubota
Engine Model
D1105
Engine Power
18.2kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
115L
Hydraulic Oil Capacity
145L
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
6.0km/h
Max Travel Speed (r)
1.1km/h
Gradeability
40%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
-
Operating Weight
7.85kg
Max Platform Capacity
0.32kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
5.17m
Overall Width
2.44m
Overall Height
2.58m
Ground Clearance
310mm
Platform Height
14.27m
Horizontal Outreach
8.09m
Up And Over Clearance
7.30m
Platform Rotation
180°
Battery Voltage / Capacity
-
Turning Radius (inside)
3.00m
SANY SPA16AC Articulating Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
2WD
Number Of Gears (f/r)
-
Max Travel Speed (f)
5.0km/h
Max Travel Speed (r)
0.8 km/h
Gradeability
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Steering Angle
-
Oscillation Angle
-
Turning Radius
4.10 m
Operating Weight
7.0 kg
Max Platform Capacity
0.248kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
7.15 m
Overall Width
2.00m
Overall Height
2.02m
Ground Clearance
170mm
Platform Height
15.7m
Horizontal Outreach
9.00m
Up And Over Clearance
-
Platform Rotation
180°
Battery Voltage / Capacity
51.2 / 315 V
Turning Radius (inside)
1.55m
Haulotte HA16 RTJ Articulating Boom
Engine Brand
Kubota / Perkins
Engine Model
Stage 5 (EU) / Stage 3A (NRC)
Engine Power
18.5 / 26.5kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
Hydrostatic
Number Of Gears (f/r)
-
Max Travel Speed (f)
5.2km/h
Max Travel Speed (r)
-
Gradeability
40%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Steering Angle
5°
Oscillation Angle
-
Turning Radius
4.5m
Operating Weight
6095 kg
Max Platform Capacity
230kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
6.75m
Overall Width
2.3m
Overall Height
2.3m
Ground Clearance
370mm
Platform Height
14m
Horizontal Outreach
8.3m
Up And Over Clearance
7.65m
Platform Rotation
165°
Battery Voltage / Capacity
12V
Turning Radius (inside)
-
Haulotte HA20 RTJ PRO Articulating Boom
Engine Brand
KUBOTA
Engine Model
-
Engine Power
18.5kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
5km/h
Max Travel Speed (r)
-
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
4 wheel drive and 4 wheel steering (PRO model)
Steering Angle
-
Oscillation Angle
4 (option 6°) °
Turning Radius
5.2m
Operating Weight
9.43kg
Max Platform Capacity
250kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
8.60m
Overall Width
2.43m
Overall Height
2.47m
Ground Clearance
360mm
Platform Height
18.5m
Horizontal Outreach
11.9m
Up And Over Clearance
8.5m
Platform Rotation
180°
Battery Voltage / Capacity
12V
Turning Radius (inside)
-
JLG 340AJ Boom Lift
Engine Brand
PSI/GM / Kubota
Engine Model
L4 EFI / D1105
Engine Power
21.4 / 18.5kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
49.21L
Hydraulic Oil Capacity
77.9L
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
4.98km/h
Max Travel Speed (r)
-
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
1.52m
Operating Weight
4615kg
Max Platform Capacity
227kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Platform Height
10.33m
Horizontal Outreach
6.06m
Up And Over Clearance
5.17m
Platform Rotation
180°
Battery Voltage / Capacity
12V
Turning Radius (inside)
-
