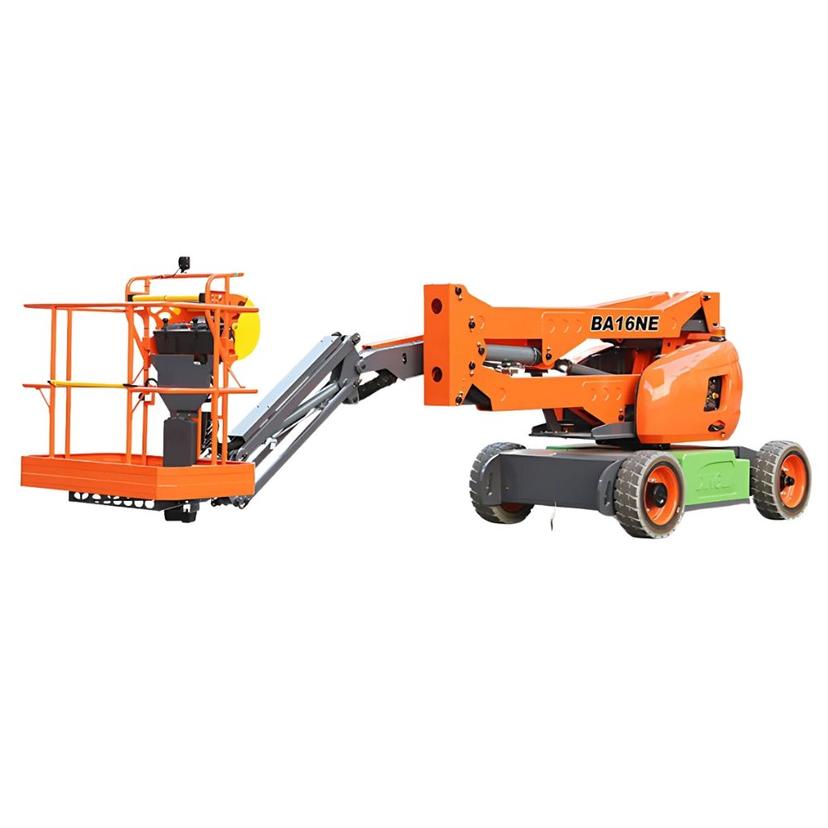

Dingli BA16NE Boom Lift
DINGLI
Haryana
The Dingli BA16NE Boom Lift is a versatile and efficient solution for various height-related tasks, offering a maximum working height of 16.5 meters (54 ft 2 in) and a platform capacity of 230 kg (508 lbs) to accommodate up to two occupants. Its compact design, featuring a 1.45m x 0.90m platform and zero tail swing, ensures easy maneuverability in tight spaces. Equipped with a 360° turret rotation, 180° platform rotation, and 130° jib movement, this boom lift delivers exceptional reach and flexibility, including a maximum up-and-over clearance of 7.89 meters. Ideal for construction, maintenance, landscaping, and warehouse operations, it operates seamlessly on slopes up to 3° with 30% gradeability. Powered by a robust 48V/300Ah battery, it is a sustainable choice for indoor and outdoor projects.
Dingli BA16NE Boom Lift
DINGLI
Haryana
The Dingli BA16NE Boom Lift is a versatile and efficient solution for various height-related tasks, offering a maximum working height of 16.5 meters (54 ft 2 in) and a platform capacity of 230 kg (508 lbs) to accommodate up to two occupants. Its compact design, featuring a 1.45m x 0.90m platform and zero tail swing, ensures easy maneuverability in tight spaces. Equipped with a 360° turret rotation, 180° platform rotation, and 130° jib movement, this boom lift delivers exceptional reach and flexibility, including a maximum up-and-over clearance of 7.89 meters. Ideal for construction, maintenance, landscaping, and warehouse operations, it operates seamlessly on slopes up to 3° with 30% gradeability. Powered by a robust 48V/300Ah battery, it is a sustainable choice for indoor and outdoor projects.
Product Description
The Dingli BA16NE Boom Lift is a versatile and efficient solution for various height-related tasks, ...
View the full brochure
Dingli BA16NE Boom Lift Comparison with Similar Telescopic Boom Lift
Dingli BA16NE Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Fuel Tank Capacity
-
Battery Voltage/cap.
48 / 300
Transmission Type
-
Drive Type
-
Max Travel Speed
6.1km/h
Travel Speed (raised)
-
Gradeability
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Turning Radius (inside)
2.08m
Turning Radius (outside)
-
Max Lifting Capacity (unrestricted)
-
Max Lifting Capacity (restricted)
-
Operating Weight
6.7Ton
Hydraulic Oil Capacity
30L
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
6.77m
Overall Width
1.73m
Overall Height
2.00m
Ground Clearance
200m
Wheelbase
-
Turntable Tail Swing
-
Max Platform Height
14.30m
Max Working Height
-
Max Horizontal Outreach
6.55m
Platform Rotation
180°
Turntable Rotation
-
Jib Articulation
-
Platform Size (l×w)
-
Max Platform Occupants
-
Tilt Alarm / Sensor
-
Platform Entry Type
-
Tyres
-
Power Steering
-
Drive Enable / Alarms
-
SANY SPT22 Telescopic Boom Lift
Engine Brand
DEUTZ / KUBOTA
Engine Model
D2.9 / V2607-DI-T
Engine Power
48.8 / 49.0 HP
Fuel Tank Capacity
160L
Battery Voltage/cap.
-
Transmission Type
-
Drive Type
4WD
Max Travel Speed
5.5km/h
Travel Speed (raised)
1.1km/h
Gradeability
45 %
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Turning Radius (inside)
2.40m
Turning Radius (outside)
5.50m
Max Lifting Capacity (unrestricted)
300kg
Max Lifting Capacity (restricted)
480kg
Operating Weight
12.7Ton
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.0 m
Overall Width
2.45m
Overall Height
2.70m
Ground Clearance
0.31m
Wheelbase
2.50m
Turntable Tail Swing
1.50m
Max Platform Height
22.4m
Max Working Height
24.4m
Max Horizontal Outreach
16.5m
Platform Rotation
180°
Turntable Rotation
360 (Continuous) °
Jib Articulation
+70 / -65 °
Platform Size (l×w)
2.44 × 0.91 m
Max Platform Occupants
3Persons
Tilt Alarm / Sensor
X-5° / Y-5°
Platform Entry Type
-
Tyres
-
Power Steering
-
Drive Enable / Alarms
-
SANY SPT26 Telescopic Boom Lift
Engine Brand
DEUTZ / KUBOTA
Engine Model
TD2.9 / V3307-TE5B
Engine Power
74.29HP
Fuel Tank Capacity
2600L
Battery Voltage/cap.
160
Transmission Type
-
Drive Type
4WD
Max Travel Speed
6.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Turning Radius (inside)
3.66m
Turning Radius (outside)
6.86m
Max Lifting Capacity (unrestricted)
300kg
Max Lifting Capacity (restricted)
400kg
Operating Weight
15.7Ton
Hydraulic Oil Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
12.3m
Overall Width
2.49m
Overall Height
3.05m
Ground Clearance
0.41m
Wheelbase
3.05m
Turntable Tail Swing
1.5m
Max Platform Height
26.7m
Max Working Height
28.7m
Max Horizontal Outreach
20.3m
Platform Rotation
180°
Turntable Rotation
360 Continuous°
Jib Articulation
+70° / -65°°
Platform Size (l×w)
2.44×0.91m
Max Platform Occupants
3Persons
Tilt Alarm / Sensor
X-5° / Y-5°
Platform Entry Type
-
Tyres
-
Power Steering
-
Drive Enable / Alarms
-
Genie S-45 Trax Telescopic Boom Lift
Engine Brand
Deutz
Engine Model
D2011
Engine Power
48 HP
Fuel Tank Capacity
132L
Battery Voltage/cap.
-
Transmission Type
-
Drive Type
4WD
Max Travel Speed
6.40km/h
Travel Speed (raised)
1.1km/h
Gradeability
45 %
Service Brake Type
-
Parking Brake Type
-
Steering Type
Dual axis joystick steering
Turning Radius (inside)
2.08m
Turning Radius (outside)
5.23m
Max Lifting Capacity (unrestricted)
300kg
Max Lifting Capacity (restricted)
454kg
Operating Weight
8.623Ton
Hydraulic Oil Capacity
144L
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
9.47m
Overall Width
2.49m
Overall Height
2.51m
Ground Clearance
0.32m
Wheelbase
2.46m
Turntable Tail Swing
0.97m
Max Platform Height
13.56m
Max Working Height
15.56m
Max Horizontal Outreach
11.02m
Platform Rotation
160°
Turntable Rotation
360°
Jib Articulation
133°
Platform Size (l×w)
2.44×1.83 m
Max Platform Occupants
2Persons
Tilt Alarm / Sensor
7° / 5°
Platform Entry Type
Side swing gate
Tyres
315/55D20
Power Steering
Yes
Drive Enable / Alarms
Yes
Genie S-80 J Telescopic Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
48HP
Fuel Tank Capacity
114L
Battery Voltage/cap.
-
Transmission Type
-
Drive Type
-
Max Travel Speed
4.8km/h
Travel Speed (raised)
1.6km/h
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Turning Radius (inside)
4.7m
Turning Radius (outside)
7.8m
Max Lifting Capacity (unrestricted)
300kg
Max Lifting Capacity (restricted)
-
Operating Weight
11.11Ton
Hydraulic Oil Capacity
87L
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
10.44m
Overall Width
2.49m
Overall Height
2.74m
Ground Clearance
0.36m
Wheelbase
3.05m
Turntable Tail Swing
2.54m
Max Platform Height
24.51m
Max Working Height
26.51m
Max Horizontal Outreach
16.69m
Platform Rotation
160°
Turntable Rotation
353°
Jib Articulation
130°
Platform Size (l×w)
2.44×1.83 m
Max Platform Occupants
2 Persons
Tilt Alarm / Sensor
-
Platform Entry Type
-
Tyres
355/55D625
Power Steering
-
Drive Enable / Alarms
Yes
