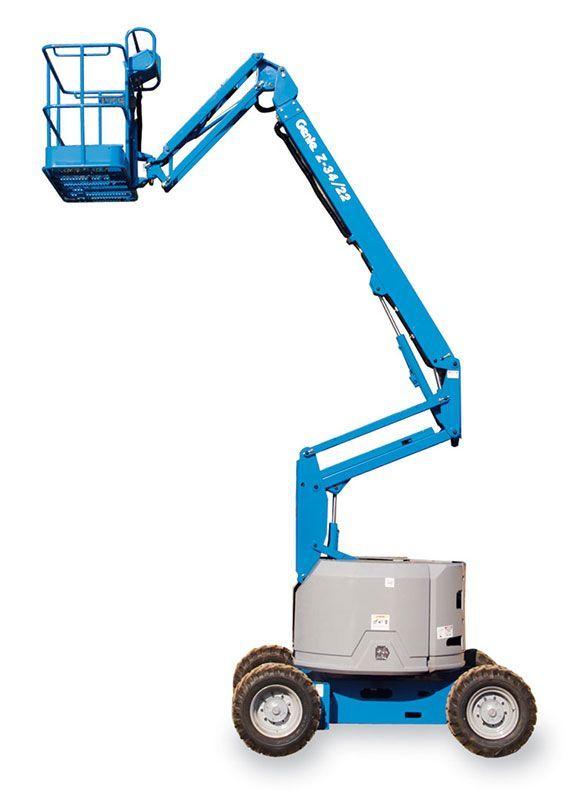

Genie Z™-34/22 IC Articulating Boom Lift
The Genie Z™-34/22 IC Articulating Boom Lift is engineered for outdoor construction and industrial applications, offering exceptional lifting versatility. With a maximum working height of 12.54 m and a horizontal reach of 6.78 m, this lift can access difficult-to-reach areas with ease. The up and over clearance of 4.60 m allows for efficient navigation around obstacles, making it ideal for high-rise maintenance, installation tasks, and outdoor work. Its platform capacity of 227 kg ensures safe handling of both personnel and materials, while its rugged engine-powered design makes it suitable for demanding environments. Whether for construction, industrial maintenance, or event setup, the Genie Z™-34/22 is built to provide reliable performance and convenience, making it a go-to solution for aerial work in challenging locations.
Genie Z™-34/22 IC Articulating Boom Lift
The Genie Z™-34/22 IC Articulating Boom Lift is engineered for outdoor construction and industrial applications, offering exceptional lifting versatility. With a maximum working height of 12.54 m and a horizontal reach of 6.78 m, this lift can access difficult-to-reach areas with ease. The up and over clearance of 4.60 m allows for efficient navigation around obstacles, making it ideal for high-rise maintenance, installation tasks, and outdoor work. Its platform capacity of 227 kg ensures safe handling of both personnel and materials, while its rugged engine-powered design makes it suitable for demanding environments. Whether for construction, industrial maintenance, or event setup, the Genie Z™-34/22 is built to provide reliable performance and convenience, making it a go-to solution for aerial work in challenging locations.
Product Description
The Genie Z™-34/22 IC Articulating Boom Lift is engineered for outdoor construction and industrial a...
View the full brochure
Genie Z™-34/22 IC Articulating Boom Lift Comparison with Similar Articulating Boom Lift

Genie Z™-34/22 IC Articulating Boom Lift
Engine Brand
Kubota
Engine Model
D1105
Engine Power
18.5kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
34L
Hydraulic Oil Capacity
71.9L
Transmission Type
Hydrostatic Drive
Number Of Gears (f/r)
-
Max Travel Speed (f)
4.8 km/h
Max Travel Speed (r)
1.1 km/h
Gradeability
45%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2-wheel steering
Steering Angle
-
Oscillation Angle
-
Turning Radius
4.11 m
Operating Weight
4.994kg
Max Platform Capacity
0.227kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
5.66 m
Overall Width
1.85 m
Overall Height
2.06m
Ground Clearance
170mm
Platform Height
10.54m
Horizontal Outreach
6.78m
Up And Over Clearance
4.60m
Platform Rotation
180°
Battery Voltage / Capacity
12V
Turning Radius (inside)
1.80 m

Genie Z™-40/23 N Articulating Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
30.3L
Transmission Type
48V 3-Phase AC
Number Of Gears (f/r)
-
Max Travel Speed (f)
5.6km/h
Max Travel Speed (r)
1.1km/h
Gradeability
30%
Service Brake Type
-
Parking Brake Type
Electric brake release
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
2.26m
Operating Weight
6.908kg
Max Platform Capacity
227kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
6.53m
Overall Width
1.5m
Overall Height
1.98m
Ground Clearance
240mm
Platform Height
12.3m
Horizontal Outreach
6.91m
Up And Over Clearance
6.48m
Platform Rotation
128°
Battery Voltage / Capacity
48V
Turning Radius (inside)
0.89m

Genie Z™-45/25J DC Articulating Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
30.3L
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
4.8km/h
Max Travel Speed (r)
1.0km/h
Gradeability
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
4.27m
Operating Weight
7.40kg
Max Platform Capacity
227kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
6.83m
Overall Width
1.79m
Overall Height
2.00m
Ground Clearance
240mm
Platform Height
13.94m
Horizontal Outreach
7.65m
Up And Over Clearance
7.24m
Platform Rotation
160°
Battery Voltage / Capacity
48V / 350AhV
Turning Radius (inside)
1.8m

SANY SPA14AC Articulating Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
-
Number Of Gears (f/r)
-
Max Travel Speed (f)
5.0km/h
Max Travel Speed (r)
0.8km/h
Gradeability
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
-
Turning Radius
3.81m
Operating Weight
6.5kg
Max Platform Capacity
248kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
7.15m
Overall Width
2.0m
Overall Height
2.02m
Ground Clearance
170mm
Platform Height
15.7m
Horizontal Outreach
9.0m
Up And Over Clearance
-
Platform Rotation
180°
Battery Voltage / Capacity
51.2V / 315AhV
Turning Radius (inside)
1.48m

SANY SPA16AC Articulating Boom Lift
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
-
Transmission Type
2WD
Number Of Gears (f/r)
-
Max Travel Speed (f)
5.0km/h
Max Travel Speed (r)
0.8 km/h
Gradeability
30%
Service Brake Type
-
Parking Brake Type
-
Steering Type
2WS
Steering Angle
-
Oscillation Angle
-
Turning Radius
4.10 m
Operating Weight
7.0 kg
Max Platform Capacity
0.248kg
Front Axle Load
-
Rear Axle Load
-
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
7.15 m
Overall Width
2.00m
Overall Height
2.02m
Ground Clearance
170mm
Platform Height
15.7m
Horizontal Outreach
9.00m
Up And Over Clearance
-
Platform Rotation
180°
Battery Voltage / Capacity
51.2 / 315 V
Turning Radius (inside)
1.55m
