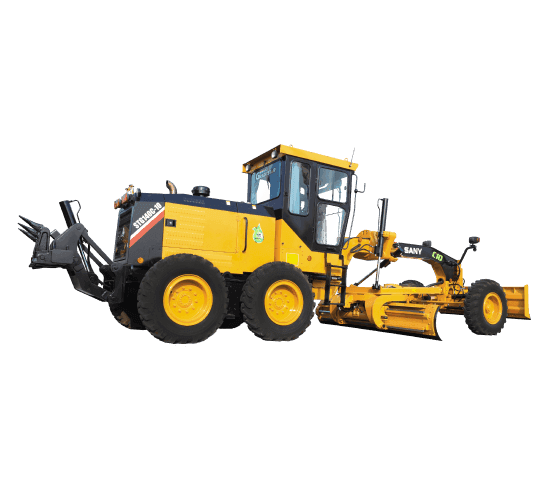

Sany STG140 BS5/STG170BS5 Motor Grader
Sany Heavy Industry India Private Limited
Karnataka
The Sany STG140 BS5/STG170 BS5 Motor Grader is built for power, precision, and productivity. Powered by a fuel-efficient Cummins engine delivering 112 kW, it offers consistent performance across demanding terrains. With a 3.66-meter blade length and 0.62-meter blade height, it delivers accurate and high-capacity grading for roads, construction sites, and large-scale infrastructure projects. Its advanced hydraulic system ensures responsive control, while the heavy-duty frame withstands harsh working conditions with ease. Operators benefit from a spacious, ergonomic cabin equipped with modern controls and monitoring systems for improved safety and comfort. Whether it's road construction, site leveling, or surface finishing, the STG140 BS5/STG170 BS5 delivers reliability and efficiency that meet today’s heavy-duty grading demands—making it a preferred choice for contractors and infrastructure developers alike.
Sany STG140 BS5/STG170BS5 Motor Grader
Sany Heavy Industry India Private Limited
Karnataka
The Sany STG140 BS5/STG170 BS5 Motor Grader is built for power, precision, and productivity. Powered by a fuel-efficient Cummins engine delivering 112 kW, it offers consistent performance across demanding terrains. With a 3.66-meter blade length and 0.62-meter blade height, it delivers accurate and high-capacity grading for roads, construction sites, and large-scale infrastructure projects. Its advanced hydraulic system ensures responsive control, while the heavy-duty frame withstands harsh working conditions with ease. Operators benefit from a spacious, ergonomic cabin equipped with modern controls and monitoring systems for improved safety and comfort. Whether it's road construction, site leveling, or surface finishing, the STG140 BS5/STG170 BS5 delivers reliability and efficiency that meet today’s heavy-duty grading demands—making it a preferred choice for contractors and infrastructure developers alike.
Product Description
The Sany STG140 BS5/STG170 BS5 Motor Grader is built for power, precision, and productivity. Powered...
View the full brochure
Sany STG140 BS5/STG170BS5 Motor Grader Comparison with Similar Motor Grader
Sany STG140 BS5/STG170BS5 Motor Grader
Engine Brand
Cummins
Engine Model
QSF4.5
Engine Power
150HP
Max Torque
655Nm
Rated Speed
2200rpm
Displacement
4.5L
Fuel Tank Capacity
280L
Transmission Type
Automatic Power Shift
Number Of Gears (fwd/rev)
6/3
Max Travel Speed
42km/h
Service Brake Type
Hydraulically actuated disc
Parking Brake Type
Spring Applied Hydraulic Release
Steering Type
Hydraulic Power Steering
Steering Angle
45°
Oscillation Angle
±17°
Turning Radius
7.2m
Front Axle Load
3600kg
Rear Axle Load
9800kg
Operating Weight
14.35Ton
Hydraulic Flow Rate
120L/min
Hydraulic Pressure
220Bar
Overall Length
10.60m
Overall Width
2.46m
Overall Height
3.36m
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.620m
Max Lift Above Ground
0.420m
Max Depth Of Cut
0.650m
Blade Tilt Angle
63°
Blade Pitch Angle
25-75°
Blade Rotation Angle
360°
Liugong CLG 414 BSIII Motor Grader
Engine Brand
CUMMINS INDIA
Engine Model
6BTAA5.9
Engine Power
150HP
Max Torque
655Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
250L
Transmission Type
Power Shift
Number Of Gears (fwd/rev)
6F/3R
Max Travel Speed
41km/h
Service Brake Type
Shoe
Parking Brake Type
Shoe
Steering Type
Full hydraulic steering
Steering Angle
90°
Oscillation Angle
30°
Turning Radius
7.2m
Front Axle Load
-
Rear Axle Load
-
Operating Weight
14.3Ton
Hydraulic Flow Rate
-
Hydraulic Pressure
180Bar
Overall Length
9.21m
Overall Width
3.4m
Overall Height
3.66m
Ground Clearance
575mm
Blade Length
3.66m
Blade Height
0.61m
Max Lift Above Ground
0.485m
Max Depth Of Cut
0.575m
Blade Tilt Angle
70°
Blade Pitch Angle
-
Blade Rotation Angle
90°
Sany STG210C-10 Motor Grader
Engine Brand
Cummins
Engine Model
QSB6.7
Engine Power
225HP
Max Torque
1000Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
350L
Transmission Type
-
Number Of Gears (fwd/rev)
6 forward and 3 reverse
Max Travel Speed
42km/h
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
45°
Oscillation Angle
16°
Turning Radius
7.3m
Front Axle Load
-
Rear Axle Load
-
Operating Weight
15.35Ton
Hydraulic Flow Rate
-
Hydraulic Pressure
-
Overall Length
11.1m
Overall Width
2.74m
Overall Height
3.31m
Ground Clearance
410mm
Blade Length
3.66m
Blade Height
0.62m
Max Lift Above Ground
0.48m
Max Depth Of Cut
0.63m
Blade Tilt Angle
9°
Blade Pitch Angle
25~75°
Blade Rotation Angle
360°
FINE 585HD Motor Grader
Engine Brand
Ashok Leyland
Engine Model
-
Engine Power
130HP
Max Torque
480Nm
Rated Speed
2200rpm
Displacement
3.84L
Fuel Tank Capacity
140L
Transmission Type
Power - Shift Transmission (AVTECH)
Number Of Gears (fwd/rev)
2 Forward / 2 Reverse
Max Travel Speed
20km/h
Service Brake Type
Foot pedal operated hydraulic brake through master cylinder
Parking Brake Type
Spring Applied Hydraulic Release (SAHR)
Steering Type
Hydraulic Power Steering
Steering Angle
45°
Oscillation Angle
20°
Turning Radius
10.26m
Front Axle Load
2710kg
Rear Axle Load
6750kg
Operating Weight
9.495Ton
Hydraulic Flow Rate
118L/min
Hydraulic Pressure
220Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Blade Length
3.05m
Blade Height
0.494m
Max Lift Above Ground
0.46m
Max Depth Of Cut
-
Blade Tilt Angle
40° Forward / 5° Backward°
Blade Pitch Angle
-
Blade Rotation Angle
360°
CASE 865C VHP Motor Grader
Engine Brand
FPT
Engine Model
F4HE613B*W002
Engine Power
220HP
Max Torque
930Nm
Rated Speed
2200rpm
Displacement
6.7L
Fuel Tank Capacity
380L
Transmission Type
-
Number Of Gears (fwd/rev)
-
Max Travel Speed
-
Service Brake Type
Disc, bathed in oil
Parking Brake Type
-
Steering Type
Hydrostatic power steering
Steering Angle
25°
Oscillation Angle
20°
Turning Radius
-
Front Axle Load
-
Rear Axle Load
-
Operating Weight
-
Hydraulic Flow Rate
186L/min
Hydraulic Pressure
175Bar
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
0.58 (front) mm
Blade Length
3.962m
Blade Height
0.622 m
Max Lift Above Ground
0.4445m
Max Depth Of Cut
0.7112m
Blade Tilt Angle
-
Blade Pitch Angle
87°
Blade Rotation Angle
360 °
