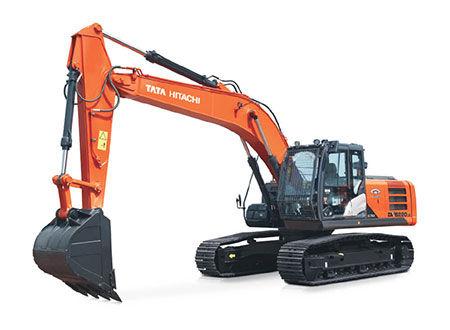

Tata Hitachi ZAXIS 140H Ultra Crawler Excavator
Trishul Tread Private Limited
Delhi
The Tata Hitachi ZAXIS 140H Ultra Crawler Excavator combines unmatched performance with exceptional efficiency, making it ideal for heavy-duty excavation tasks. Powered by a robust 66.0 kW engine and featuring a durable front attachment and undercarriage, this excavator ensures reliable operation in demanding conditions. Its advanced HIOS III hydraulic system and micro-processor controls optimize fuel consumption, while the ECO mode enhances cost-effectiveness. With rapid arm roll-in and fast boom lowering, productivity is significantly improved. The ZAXIS 140H Ultra also prioritizes operator comfort with a spacious, well-ventilated cabin, ergonomic controls, and advanced safety features, including powerful LED lights and an OPG cabin. Supported by Tata Hitachi’s comprehensive service network, it guarantees long-term peace of mind and operational excellence.
Tata Hitachi ZAXIS 140H Ultra Crawler Excavator
Trishul Tread Private Limited
Delhi
The Tata Hitachi ZAXIS 140H Ultra Crawler Excavator combines unmatched performance with exceptional efficiency, making it ideal for heavy-duty excavation tasks. Powered by a robust 66.0 kW engine and featuring a durable front attachment and undercarriage, this excavator ensures reliable operation in demanding conditions. Its advanced HIOS III hydraulic system and micro-processor controls optimize fuel consumption, while the ECO mode enhances cost-effectiveness. With rapid arm roll-in and fast boom lowering, productivity is significantly improved. The ZAXIS 140H Ultra also prioritizes operator comfort with a spacious, well-ventilated cabin, ergonomic controls, and advanced safety features, including powerful LED lights and an OPG cabin. Supported by Tata Hitachi’s comprehensive service network, it guarantees long-term peace of mind and operational excellence.
Product Description
The Tata Hitachi ZAXIS 140H Ultra Crawler Excavator combines unmatched performance with exceptional...
View the full brochure
Tata Hitachi ZAXIS 140H Ultra Crawler Excavator Comparison with Similar Crawler Excavator
Tata Hitachi ZAXIS 140H Ultra Crawler Excavator
Arm Crowd Force
7900kgf
Overall Length
7.7m
Overall Width
2.4m
Overall Height
2.7m
Ground Clearance
440mm
Engine Brand
Isuzu
Engine Model
CC-4BGIT
Engine Power
88.5HP
Max Torque
347Nm
Rated Speed
2150rpm
Displacement
4.32L
Fuel Tank Capacity
250L
Hydraulic Flow Rate
2×105L/min
Hydraulic Pressure (implement Circuit)
350kgf/cm²
Hydraulic Pressure (swing Circuit)
330kgf/cm²
Hydraulic Pressure (travel Circuit)
350kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
13.3Ton
Ground Pressure (600mm Track)
0.42kgf/cm²
Max Digging Depth
6.0m
Max Reach At Ground
8.6m
Max Dumping Height
6.4m
Bucket Capacity
0.7m³
Bucket Breakout Force
-
XCMG XE155U Crawler Excavator
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
17.5Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Zoomlion ZE385G Pro Crawler Excavator
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
38Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Liugong 965E HD Crawler Excavator
Arm Crowd Force
30591.5kgf
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
62.6Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Sany SY210 SPARC + Crawler Excavator
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
