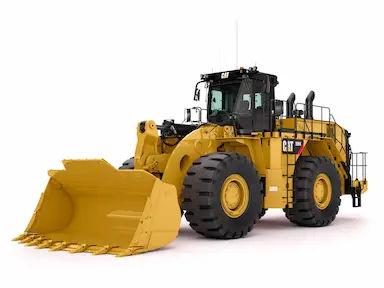

CAT 990K Wheel Loader
The CAT 990K Wheel Loader is a versatile and powerful machine designed for heavy-duty applications in construction, mining, and material handling. With its impressive bucket capacity, it excels at loading and unloading bulk materials like sand, gravel, and soil, significantly reducing operational time. The loader’s high lifting capabilities make it ideal for moving heavy items, such as concrete pipes and large construction components. It also performs exceptionally well in earthmoving tasks, including clearing and leveling ground for foundation work and grading. Additionally, the CAT 990K is an asset in recycling and waste management, efficiently sorting, moving, and loading recyclable materials. With its robust design and efficient performance, the CAT 990K ensures maximum productivity and durability for demanding industrial applications.
CAT 990K Wheel Loader
The CAT 990K Wheel Loader is a versatile and powerful machine designed for heavy-duty applications in construction, mining, and material handling. With its impressive bucket capacity, it excels at loading and unloading bulk materials like sand, gravel, and soil, significantly reducing operational time. The loader’s high lifting capabilities make it ideal for moving heavy items, such as concrete pipes and large construction components. It also performs exceptionally well in earthmoving tasks, including clearing and leveling ground for foundation work and grading. Additionally, the CAT 990K is an asset in recycling and waste management, efficiently sorting, moving, and loading recyclable materials. With its robust design and efficient performance, the CAT 990K ensures maximum productivity and durability for demanding industrial applications.
Product Description
The CAT 990K Wheel Loader is a versatile and powerful machine designed for heavy-duty applications i...
View the full brochure
CAT 990K Wheel Loader Comparison with Similar Wheel Loader

CAT 990K Wheel Loader
Loader Bucket Capacity
8.6m³
Loader Arm Breakout Force
196kN
Front Axle Oscillation
-
Battery Voltage
-
Standard Tires (front/rear)
45/65R39 LD D2L5
Engine Brand
Cat
Engine Model
C27 ACERT
Engine Power
561kW
Max Torque
3557 Nm
Rated Speed
1800rpm
Displacement
27.03L
Fuel Tank Capacity
1114L
Hydraulic Oil Capacity
795L
Transmission Type
Cat planetary power shift
Number Of Gears (f/r)
-
Max Travel Speed (f)
26.4 km/h
Max Travel Speed (r)
24.9km/h
Service Brake Type
ISO 3450:2011
Parking Brake Type
-
Steering Type
Pilot, load sensing
Steering Angle
70°
Oscillation Angle
8.5°
Turning Radius
7.3m
Operating Weight
80.974kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
817 L/min
Hydraulic Pressure
34.483 Bar
Overall Length
13.072 m
Overall Width
3.12m
Overall Height
3.8m
Ground Clearance
5240mm
Max Dump Height
-
Max Load Over Height
-
Max Reach At Full Height
-

SDLG L935HI Wheel Loader
Loader Bucket Capacity
2.2m³
Loader Arm Breakout Force
296kN
Front Axle Oscillation
11°
Battery Voltage
24V
Standard Tires (front/rear)
17.5-25L-3
Engine Brand
SDLG
Engine Model
WP4.6NG135 E672
Engine Power
133kW
Max Torque
620Nm
Rated Speed
2250rpm
Displacement
4.58L
Fuel Tank Capacity
160L
Hydraulic Oil Capacity
136L
Transmission Type
Fixed shaft power shift
Number Of Gears (f/r)
F4/R2
Max Travel Speed (f)
41km/h
Max Travel Speed (r)
32km/h
Service Brake Type
Air over Hydraulic Disc Brakes
Parking Brake Type
Mechanically operated disc brake
Steering Type
Load-sensing full hydraulic articulated
Steering Angle
36°
Oscillation Angle
11°
Turning Radius
6.2m
Operating Weight
11400kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
3600kg
Hydraulic Flow Rate
210L/min
Hydraulic Pressure
175Bar
Overall Length
7.280m
Overall Width
2.520m
Overall Height
3.340m
Ground Clearance
375mm
Max Dump Height
2.930m
Max Load Over Height
3.790m
Max Reach At Full Height
1.140m

Tata Hitachi Shinrai Prime Backhoe Loader
Loader Bucket Capacity
1.1m³
Loader Arm Breakout Force
5488kN
Front Axle Oscillation
5°
Battery Voltage
12V / 130AhV
Standard Tires (front/rear)
12.5/80-18, 16.9x28
Engine Brand
Tata Hitachi
Engine Model
-
Engine Power
55.4055kW
Max Torque
305Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
129L
Hydraulic Oil Capacity
-
Transmission Type
Synchro-shuttle with solenoid control
Number Of Gears (f/r)
4F/2R
Max Travel Speed (f)
32km/h
Max Travel Speed (r)
-
Service Brake Type
Hydraulic, oil-immersed wet disc
Parking Brake Type
Hand-operated disc brake on rear axle
Steering Type
Hydraulic with inner-wheel braking
Steering Angle
-
Oscillation Angle
5°
Turning Radius
-
Operating Weight
8083kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
113L/min
Hydraulic Pressure
245Bar
Overall Length
6.04m
Overall Width
2.354m
Overall Height
2.94m
Ground Clearance
320mm
Max Dump Height
2.69m
Max Load Over Height
3.305m
Max Reach At Full Height
1.32m

Volvo L220H Wheel Loader
Loader Bucket Capacity
5.2m³
Loader Arm Breakout Force
241.1kN
Front Axle Oscillation
15°
Battery Voltage
24V
Standard Tires (front/rear)
29.5 R25 L3
Engine Brand
Volvo
Engine Model
D13F
Engine Power
375kW
Max Torque
2276Nm
Rated Speed
1300-1400rpm
Displacement
12.8L
Fuel Tank Capacity
366L
Hydraulic Oil Capacity
226L
Transmission Type
Volvo HTL 310
Number Of Gears (f/r)
-
Max Travel Speed (f)
36.5km/h
Max Travel Speed (r)
-
Service Brake Type
Wet Disc
Parking Brake Type
Wet Disc
Steering Type
Articulated
Steering Angle
37°
Oscillation Angle
15°
Turning Radius
-
Operating Weight
33.2kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
10080kg
Hydraulic Flow Rate
253L/min
Hydraulic Pressure
290Bar
Overall Length
9.27m
Overall Width
3.23m
Overall Height
5.33m
Ground Clearance
0.6mm
Max Dump Height
3.16m
Max Load Over Height
-
Max Reach At Full Height
-

Komatsu WA470-6A Wheel Loader
Loader Bucket Capacity
5.2m³
Loader Arm Breakout Force
220kN
Front Axle Oscillation
26°
Battery Voltage
-
Standard Tires (front/rear)
23.5-25 or 26.5-25 (based on config)
Engine Brand
Komatsu
Engine Model
SAA6D125E-5
Engine Power
203kW
Max Torque
-
Rated Speed
2000rpm
Displacement
11.04L
Fuel Tank Capacity
413L
Hydraulic Oil Capacity
173L
Transmission Type
Full-powershift, countershaft type
Number Of Gears (f/r)
4/4
Max Travel Speed (f)
36.2km/h
Max Travel Speed (r)
36.2km/h
Service Brake Type
Hydraulically actuated, wet disc brakes
Parking Brake Type
Wet disc brake
Steering Type
Articulated, full-hydraulic power steering
Steering Angle
35°
Oscillation Angle
26°
Turning Radius
6.63m
Operating Weight
22.96kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
260L/min
Hydraulic Pressure
34.3Bar
Overall Length
8.825m
Overall Width
3.01m
Overall Height
3.5m
Ground Clearance
525mm
Max Dump Height
3.235m
Max Load Over Height
4.36m
Max Reach At Full Height
1.435m
