Hyundai HX520L Crawler Excavator
HD Hyundai Construction Equipment India Private Limited
Maharashtra

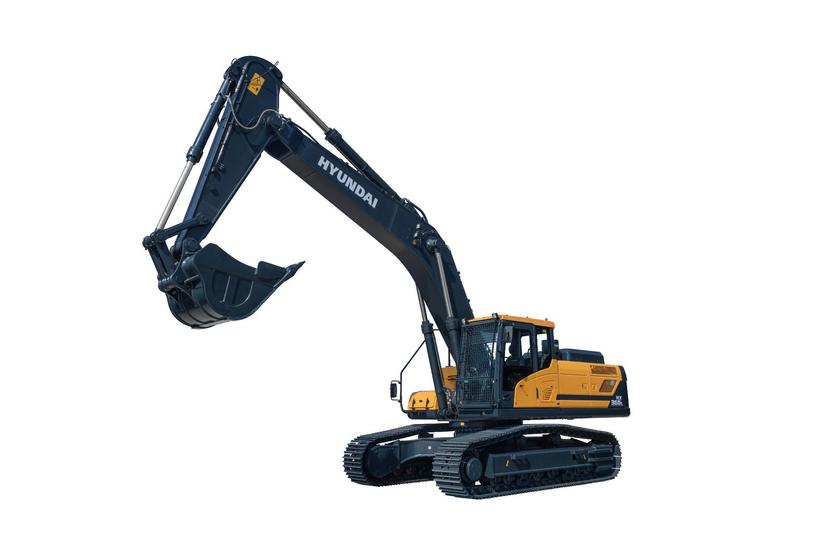

The Hyundai HX520L Crawler Excavator is a powerful and versatile machine, ideal for heavy-duty construction, mining, and quarrying applications. With a robust 335 HP engine and a substantial operating weight of 50,200 kg, this excavator provides the stability and strength needed for challenging projects. Its high-capacity buckets—ranging from a 3.2 m³ general-purpose bucket to a 2.43 m³ rock bucket—allow it to handle a wide range of materials, from loose earth to solid rock. This model is optimized for efficient digging, lifting, and loading, making it an excellent choice for large-scale infrastructure projects. Designed for durability and reliability, the HX520L ensures high productivity in even the toughest conditions, making it a valuable asset for any operation requiring heavy-duty performance.
Hyundai HX520L Crawler Excavator
HD Hyundai Construction Equipment India Private Limited
Maharashtra
The Hyundai HX520L Crawler Excavator is a powerful and versatile machine, ideal for heavy-duty construction, mining, and quarrying applications. With a robust 335 HP engine and a substantial operating weight of 50,200 kg, this excavator provides the stability and strength needed for challenging projects. Its high-capacity buckets—ranging from a 3.2 m³ general-purpose bucket to a 2.43 m³ rock bucket—allow it to handle a wide range of materials, from loose earth to solid rock. This model is optimized for efficient digging, lifting, and loading, making it an excellent choice for large-scale infrastructure projects. Designed for durability and reliability, the HX520L ensures high productivity in even the toughest conditions, making it a valuable asset for any operation requiring heavy-duty performance.
Product Description
The Hyundai HX520L Crawler Excavator is a powerful and versatile machine, ideal for heavy-duty const...
View the full brochure
Hyundai HX520L Crawler Excavator Comparison with Similar Crawler Excavator

Hyundai HX520L Crawler Excavator
Engine Brand
Scania
Engine Model
DC13 084A
Engine Power
444HP
Max Torque
-
Rated Speed
1900rpm
Displacement
12.7L
Fuel Tank Capacity
610L
Hydraulic Flow Rate
2 x 380L/min
Hydraulic Pressure (implement Circuit)
330kgf/cm²
Hydraulic Pressure (swing Circuit)
285kgf/cm²
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
40kgf/cm²
Operating Weight
50.2Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
11.87m
Max Reach At Ground
16.010m
Max Dumping Height
9.410m
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
14.2m
Overall Width
3.7m
Overall Height
3.9m
Ground Clearance
770mm

Zoomlion ZE385G Pro Crawler Excavator
Engine Brand
CUMMINS
Engine Model
QSL
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
8.9L
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
38Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
7.075m
Max Reach At Ground
-
Max Dumping Height
6.885m
Bucket Capacity
2.0m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.23m
Overall Width
3.19m
Overall Height
3.78m
Ground Clearance
-

XCMG XE155U Crawler Excavator
Engine Brand
XCMG
Engine Model
Cummins B4.5
Engine Power
-
Max Torque
501.8Nm
Rated Speed
-
Displacement
4.54L
Fuel Tank Capacity
249.8L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
17.5Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.01m
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.64m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
78.3m
Overall Width
26.8m
Overall Height
-
Ground Clearance
367.1mm

Liugong 965E HD Crawler Excavator
Engine Brand
SCANIA
Engine Model
DC13 076A
Engine Power
444HP
Max Torque
2007Nm
Rated Speed
2100rpm
Displacement
12.7L
Fuel Tank Capacity
880L
Hydraulic Flow Rate
896L/min
Hydraulic Pressure (implement Circuit)
379.3kgf/cm²
Hydraulic Pressure (swing Circuit)
397.7kgf/cm²
Hydraulic Pressure (travel Circuit)
326.3kgf/cm²
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
62.6Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
6.83m
Max Reach At Ground
10.78m
Max Dumping Height
6.84m
Bucket Capacity
4.1m³
Bucket Breakout Force
35180.2kgf
Arm Crowd Force
30591.5kgf
Overall Length
11.87m
Overall Width
3.9m
Overall Height
3.05m
Ground Clearance
786mm

Sany SY210 SPARC + Crawler Excavator
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
