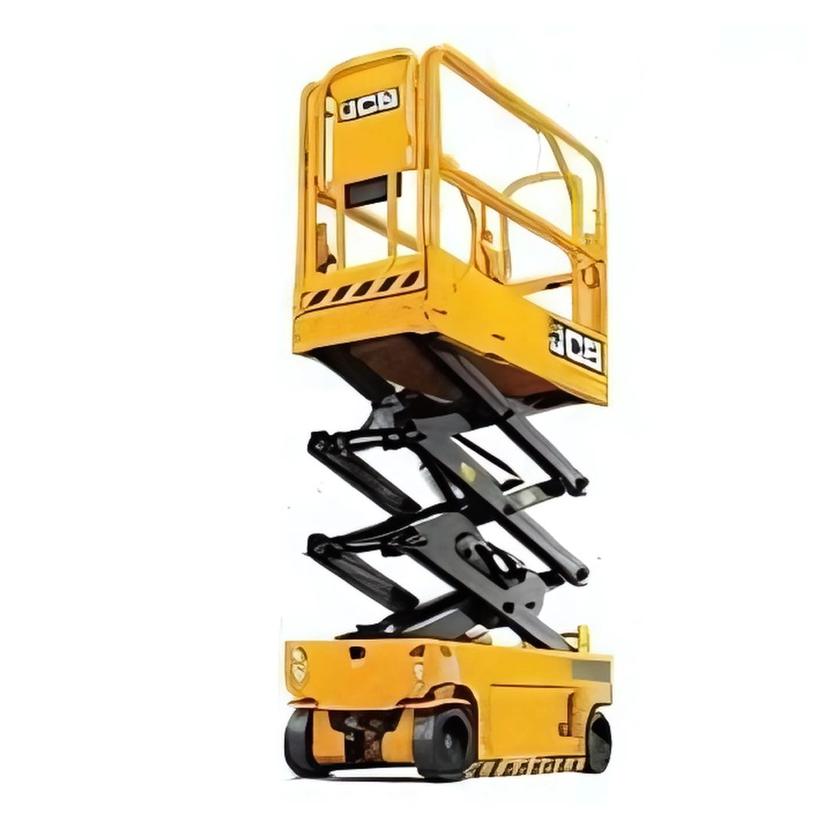

JCB S1930E Electric Scissor Lift
JCB India Limited
Haryana
The JCB S1930E Electric Scissor Lift is a compact yet powerful access solution designed to enhance productivity and safety on site. With a maximum platform height of 5.71 meters and working height of 7.71 meters, it allows users to reach elevated areas with ease. Despite its reach, it fits comfortably through standard doorways, making it ideal for indoor applications. The 230 kg platform capacity supports two occupants, while the roller-supported deck extension ensures stability even at height. Featuring a unique gate handle for safe entry and industry-standard components for easy servicing, the S1930E combines maneuverability with low maintenance. Available in both hydraulic and electric drive, it meets a range of access needs across commercial, maintenance, and light construction tasks, all while reducing the total cost of ownership.
JCB S1930E Electric Scissor Lift
JCB India Limited
Haryana
The JCB S1930E Electric Scissor Lift is a compact yet powerful access solution designed to enhance productivity and safety on site. With a maximum platform height of 5.71 meters and working height of 7.71 meters, it allows users to reach elevated areas with ease. Despite its reach, it fits comfortably through standard doorways, making it ideal for indoor applications. The 230 kg platform capacity supports two occupants, while the roller-supported deck extension ensures stability even at height. Featuring a unique gate handle for safe entry and industry-standard components for easy servicing, the S1930E combines maneuverability with low maintenance. Available in both hydraulic and electric drive, it meets a range of access needs across commercial, maintenance, and light construction tasks, all while reducing the total cost of ownership.
Product Description
The JCB S1930E Electric Scissor Lift is a compact yet powerful access solution designed to enhance p...
View the full brochure
JCB S1930E Electric Scissor Lift Comparison with Similar Scissor Lift
JCB S1930E Electric Scissor Lift
Ground Clearance (stowed)
0.07m
Max Platform Height
5.71m
Max Working Height
7.71m
Overall Length (stowed)
1.78m
Overall Width
0.77m
Overall Height (rails Raised)
2.12m
Overall Height (rails Lowered)
1.85m
Wheelbase
1.33m
Platform Size (l×w)
1.64 × 0.77m
Platform Extension Length
0.9m
Platform Railing Height
-
Battery Type
Lead-acid (6V × 4)
Battery Voltage / Capacity
24
Charger Input Voltage
100–240
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Electric, 2WD front-wheel drive / rear-wheel steer
Max Travel Speed (stowed)
3.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Max Slope (fore/aft)
3
Max Wind Speed (outdoor Use)
12.5
Tilt Sensor
-
Tires
305 × 115 mm
Tyre Type
Solid, Non-marking
Platform Control System
Manual
Lift Time (loaded)
20–25sec
Lower Time (loaded)
20–30sec
Service Brake Type
Non-marking solid tires (inherent braking)
Steering Type
Rear-wheel steer
Turning Radius (inside)
0.04m
Turning Radius (outside)
1.49m
Operating Weight
1.696Ton
Max Platform Capacity
230kg
Extension Deck Capacity
-
Max Platform Occupants (in/out)
2 / 1persons
Hydraulic Oil Capacity
12L
Hydraulic Pressure
248.0Bar
Max Side Slope (lateral)
1.5

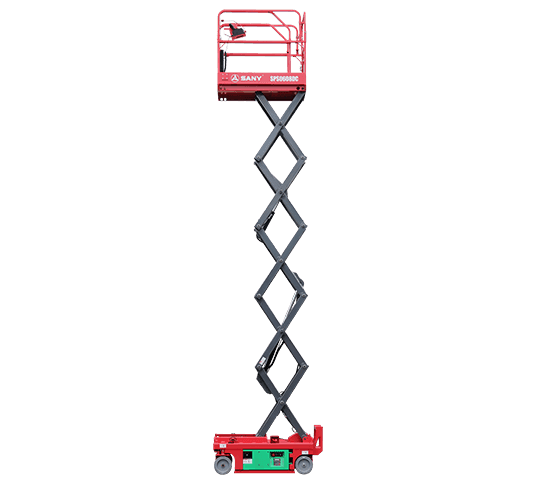

Sany SPS0608DC Scissor Lift
Ground Clearance (stowed)
0.06m
Max Platform Height
5.60m
Max Working Height
7.60m
Overall Length (stowed)
1.54m
Overall Width
0.81m
Overall Height (rails Raised)
2.12m
Overall Height (rails Lowered)
1.80m
Wheelbase
1.13m
Platform Size (l×w)
1.3×0.72m
Platform Extension Length
-
Platform Railing Height
1.21m
Battery Type
Lead-acid
Battery Voltage / Capacity
24V / 230Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Electric
Max Travel Speed (stowed)
4.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø250mm×80mm
Tyre Type
Solid non-marking
Platform Control System
-
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Operating Weight
1.25Ton
Max Platform Capacity
230kg
Extension Deck Capacity
113kg
Max Platform Occupants (in/out)
2/0persons
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Max Side Slope (lateral)
1.5°

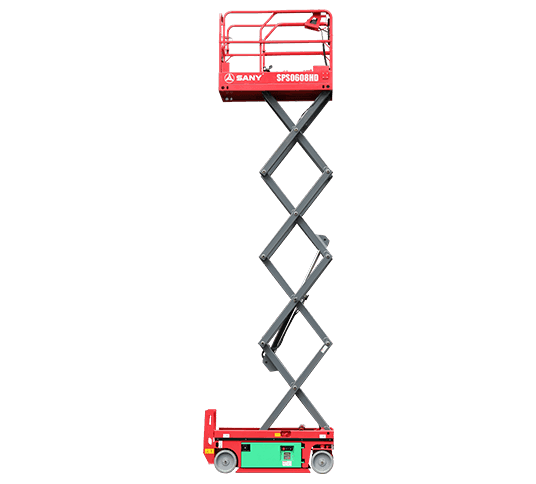

Sany SPS0608HD Scissor Lift
Ground Clearance (stowed)
0.085m
Max Platform Height
5.8m
Max Working Height
7.8m
Overall Length (stowed)
1.88m
Overall Width
0.81m
Overall Height (rails Raised)
2.15m
Overall Height (rails Lowered)
1.55m
Wheelbase
1.38m
Platform Size (l×w)
1.71 × 0.74m
Platform Extension Length
0.6m
Platform Railing Height
1.12m
Battery Type
Lead Acid
Battery Voltage / Capacity
2 × 12V / 155Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.0km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø323mm × 100mm
Tyre Type
Solid non-marking
Platform Control System
-
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Operating Weight
1.36Ton
Max Platform Capacity
250kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/0persons
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Max Side Slope (lateral)
1.5°
Sany SPS0608MHA Scissor Lift
Ground Clearance (stowed)
0.07m
Max Platform Height
6.0m
Max Working Height
8.0m
Overall Length (stowed)
1.88m
Overall Width
0.81m
Overall Height (rails Raised)
2.15m
Overall Height (rails Lowered)
1.83m
Wheelbase
1.38m
Platform Size (l×w)
1.7×0.74m
Platform Extension Length
-
Platform Railing Height
1.12m
Battery Type
-
Battery Voltage / Capacity
4×6V/220Ah
Charger Input Voltage
AC100–240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.5km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Max Slope (fore/aft)
3°
Max Wind Speed (outdoor Use)
-
Tilt Sensor
Yes
Tires
Ø323mm × 100mm
Tyre Type
Solid non-marking
Platform Control System
-
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
-
Turning Radius (inside)
0.4m
Turning Radius (outside)
1.7m
Operating Weight
1.55Ton
Max Platform Capacity
230kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/1persons
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Max Side Slope (lateral)
1.5°
Sany SPS0808HA Scissor Lift
Ground Clearance (stowed)
0.1m
Max Platform Height
8.0m
Max Working Height
10.0m
Overall Length (stowed)
2.49m
Overall Width
0.83m
Overall Height (rails Raised)
2.38m
Overall Height (rails Lowered)
1.89m
Wheelbase
1.87m
Platform Size (l×w)
2.27 × 0.75m
Platform Extension Length
0.9m
Platform Railing Height
1.25m
Battery Type
Lead Acid
Battery Voltage / Capacity
4×6V / 220Ah
Charger Input Voltage
AC100~240V
Charger Output / Type
-
Charge Time (standard)
-
Drive Type
Hydraulic
Max Travel Speed (stowed)
3.5km/h
Travel Speed (raised)
0.8km/h
Gradeability
25%
Max Slope (fore/aft)
-
Max Wind Speed (outdoor Use)
-
Tilt Sensor
-
Tires
-
Tyre Type
-
Platform Control System
-
Lift Time (loaded)
-
Lower Time (loaded)
-
Service Brake Type
-
Steering Type
Front Wheel
Turning Radius (inside)
0.6m
Turning Radius (outside)
2.5m
Operating Weight
2.15Ton
Max Platform Capacity
250kg
Extension Deck Capacity
120kg
Max Platform Occupants (in/out)
2/0persons
Hydraulic Oil Capacity
-
Hydraulic Pressure
-
Max Side Slope (lateral)
1.5
