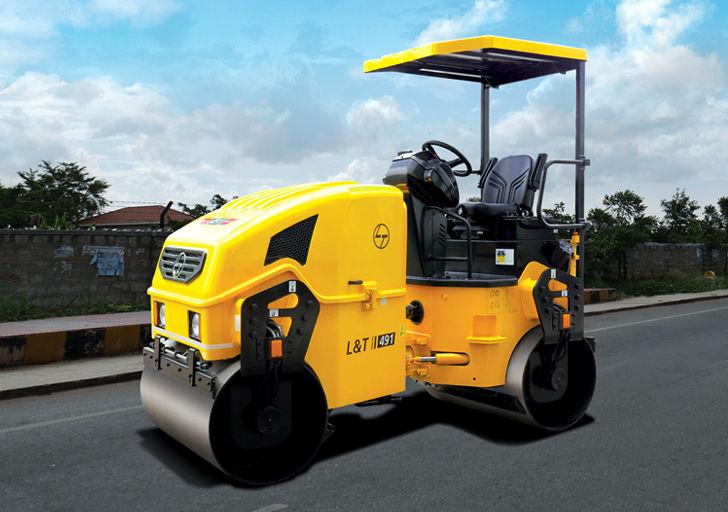

L&T 491 Mini Tandem Roller
L&T construction & Mining Machinery
Delhi
The L&T 491 Mini Tandem Roller is a versatile and efficient compaction machine designed for superior performance in a wide range of applications. With an impressive operating weight of 3,400 kg and a robust Mahindra MDI 2500 engine delivering 44.5 hp at 2,300 rpm, it ensures high-quality results in road construction, urban development, and industrial projects. Its suspended frame design enhances kerb clearance, while excellent drum edge visibility ensures precise compaction even in confined spaces. Operating at frequencies of 65/55 Hz, it is ideal for asphalt paving, embankments, and narrow roads. Maintenance is simplified with ground-level service point access, maximizing uptime. Built for durability and efficiency, the L&T 491 Mini Tandem Roller is the perfect solution for small- to medium-scale infrastructure projects requiring reliable compaction.
L&T 491 Mini Tandem Roller
L&T construction & Mining Machinery
Delhi
The L&T 491 Mini Tandem Roller is a versatile and efficient compaction machine designed for superior performance in a wide range of applications. With an impressive operating weight of 3,400 kg and a robust Mahindra MDI 2500 engine delivering 44.5 hp at 2,300 rpm, it ensures high-quality results in road construction, urban development, and industrial projects. Its suspended frame design enhances kerb clearance, while excellent drum edge visibility ensures precise compaction even in confined spaces. Operating at frequencies of 65/55 Hz, it is ideal for asphalt paving, embankments, and narrow roads. Maintenance is simplified with ground-level service point access, maximizing uptime. Built for durability and efficiency, the L&T 491 Mini Tandem Roller is the perfect solution for small- to medium-scale infrastructure projects requiring reliable compaction.
Product Description
The L&T 491 Mini Tandem Roller is a versatile and efficient compaction machine designed for superior...
View the full brochure
L&T 491 Mini Tandem Roller Comparison with Similar Tandem Roller

L&T 491 Mini Tandem Roller
Amplitude High
0.6mm
Amplitude Low
-
Frequency High
65Hz
Frequency Low
55Hz
Overall Length
2.9m
Overall Width
1.2m
Overall Height
2.6m
Ground Clearance
369mm
Drum Width
1.2m
Water Tank Capacity
170L
Fuel Tank Capacity
55L
Service Brake Type
Hydrostatic Brake (FNR control)
Parking Brake Type
Spring Applied Hydraulically Released (SAHR)
Steering Type
-
Steering Angle
±40°
Oscillation Angle
±13°
Turning Radius
2.3m
Operating Weight
3.4Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
45L
Engine Brand
Mahindra
Engine Model
MDI 2500
Engine Power
44.5HP
Max Torque
157Nm
Rated Speed
2300rpm
Displacement
2.5L
Transmission Type
-
Max Travel Speed
12km/h
Max Working Speed
6km/h
Gradeability Without Vibration
-
Gradeability With Vibration
-

Volvo DD90C Tandem Roller
Amplitude High
1.0 mm
Amplitude Low
0.36mm
Frequency High
50 Hz
Frequency Low
36 Hz
Overall Length
4.970 m
Overall Width
1.835 m
Overall Height
3.050m
Ground Clearance
305mm
Drum Width
1.676m
Water Tank Capacity
700L
Fuel Tank Capacity
180 L
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on both drum drives
Steering Type
Articulated frame, center pivot steering
Steering Angle
30°
Oscillation Angle
10°
Turning Radius
7.285 m
Operating Weight
8.7Ton
Front Axle Load
4.22kg
Rear Axle Load
4.48kg
Hydraulic Tank Capacity
80L
Engine Brand
VECV
Engine Model
EE483TCI StageIV CEV
Engine Power
73.8 HP
Max Torque
-
Rated Speed
2200rpm
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
12km/h
Max Working Speed
7 km/h
Gradeability Without Vibration
30%
Gradeability With Vibration
-

Volvo DD100 Tandem Roller
Amplitude High
1.01mm
Amplitude Low
0.41mm
Frequency High
41.7Hz
Frequency Low
30.8 Hz
Overall Length
5.086 m
Overall Width
2.845m
Overall Height
2.845m
Ground Clearance
0.430 mm
Drum Width
1.676m
Water Tank Capacity
984L
Fuel Tank Capacity
189L
Service Brake Type
Dynamic hydrostatic through propulsion system
Parking Brake Type
SAHR on front and rear drum drive motors
Steering Type
Center pivot (Articulated) steering
Steering Angle
40°
Oscillation Angle
10°
Turning Radius
3.558m
Operating Weight
10.025 Ton
Front Axle Load
5,200kg
Rear Axle Load
4,825kg
Hydraulic Tank Capacity
133 L
Engine Brand
Cummins
Engine Model
QSB 4.5
Engine Power
129.9HP
Max Torque
-
Rated Speed
-
Displacement
-
Transmission Type
Closed-loop hydrostatic, parallel circuit to both drums
Max Travel Speed
11.4 km/h
Max Working Speed
-
Gradeability Without Vibration
-
Gradeability With Vibration
24.5%

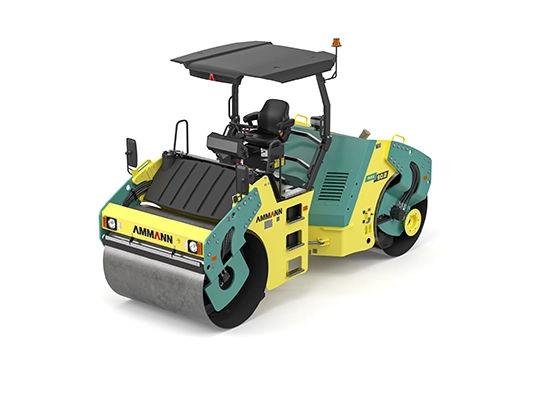

Ammann ARX 90.2 Tandem Roller
Amplitude High
0.7mm
Amplitude Low
0.35mm
Frequency High
55Hz
Frequency Low
42Hz
Overall Length
-
Overall Width
-
Overall Height
-
Ground Clearance
-
Drum Width
1.7m
Water Tank Capacity
1000L
Fuel Tank Capacity
200L
Service Brake Type
Hydrostatic
Parking Brake Type
Multi-disc Spring Brake
Steering Type
-
Steering Angle
35°
Oscillation Angle
6°
Turning Radius
4.7m
Operating Weight
9.42Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
-
Engine Brand
Ashok Leyland
Engine Model
H4C47422
Engine Power
72.9HP
Max Torque
-
Rated Speed
1400–1600 rpm
Displacement
-
Transmission Type
Hydrostatic
Max Travel Speed
12 km/h
Max Working Speed
-
Gradeability Without Vibration
35%
Gradeability With Vibration
-

Wacker Neuson RD28 Tandem Roller
Amplitude High
0.44mm
Amplitude Low
0.44mm
Frequency High
65.0Hz
Frequency Low
51.0Hz
Overall Length
2.52m
Overall Width
1.31m
Overall Height
1.75m
Ground Clearance
-
Drum Width
1.19m
Water Tank Capacity
180.18L
Fuel Tank Capacity
42.01L
Service Brake Type
-
Parking Brake Type
-
Steering Type
-
Steering Angle
-
Oscillation Angle
+/-8.0°
Turning Radius
-
Operating Weight
2.69Ton
Front Axle Load
-
Rear Axle Load
-
Hydraulic Tank Capacity
-
Engine Brand
Kubota
Engine Model
D1703
Engine Power
24.8HP
Max Torque
-
Rated Speed
-
Displacement
-
Transmission Type
-
Max Travel Speed
10.13km/h
Max Working Speed
-
Gradeability Without Vibration
40.0%
Gradeability With Vibration
30.0%
