Machan X

L&T 9020SX Wheel Loader

L&T construction & Mining Machinery

Delhi

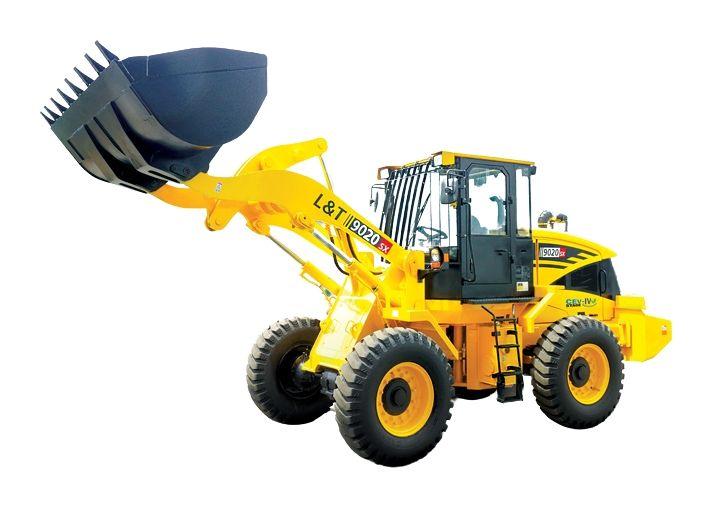

The L&T 9020SX Wheel Loader is a powerhouse engineered for superior performance across diverse applications. With a standard operating weight of 11,400 kg and a robust Cummins QSB4.5 engine compliant with CEV-IV norms, it delivers unmatched efficiency and durability. Its 3,500 kg rated payload, improved breakout force, and higher gradability ensure exceptional material handling capabilities. Designed for operator comfort and safety, the loader features a FOPS/ROPS-certified cabin, rear-view camera, and audio-visual reversing alarms. The machine’s versatility is enhanced by ground-engaging tools like bolt-on teeth and cutting edges, along with optional high-lift arms and dozer blades. Automated systems such as centralized lubrication and fire suppression minimize downtime, while the limited-slip differential and oscillating rear axles enable optimal performance in challenging terrains. This loader redefines productivity for construction, mining, waste management, and agricultural operations.

Product Description

The L&T 9020SX Wheel Loader is a powerhouse engineered for superior performance across diverse appli...

View the full brochure

L&T 9020SX Wheel Loader Comparison with Similar Wheel Loader

L&T 9020SX Wheel Loader

L&T 9020SX Wheel Loader

Get Latest Price
Rating
4.4

Engine Brand

Cummins

Engine Model

QS B4.5 CIV140D222

Engine Power

140kW

Max Torque

608Nm

Rated Speed

2200rpm

Displacement

4.458L

Fuel Tank Capacity

198L

Hydraulic Oil Capacity

90–110L

Transmission Type

Power shift, constant mesh, planetary gears

Number Of Gears (f/r)

2F/1R

Max Travel Speed (f)

29km/h

Max Travel Speed (r)

14.6km/h

Service Brake Type

Oil-immersed multi-disc

Parking Brake Type

Internal expanding shoe

Steering Type

-

Steering Angle

-

Oscillation Angle

12°

Turning Radius

5.835m

Operating Weight

11.4kg

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

3500kg

Hydraulic Flow Rate

-

Hydraulic Pressure

245Bar

Overall Length

7.625m

Overall Width

2.8m

Overall Height

3.276m

Ground Clearance

410mm

Max Dump Height

2.715m

Max Load Over Height

3.52m

Max Reach At Full Height

1.248m

Loader Bucket Capacity

2.0

Loader Arm Breakout Force

113.5kN

Front Axle Oscillation

12°

Battery Voltage

-

Standard Tires (front/rear)

14.00x25-L3-20PR

Currently Viewing
SDLG L935HI Wheel Loader

SDLG L935HI Wheel Loader

Get Latest Price
Rating
4.4

Engine Brand

SDLG

Engine Model

WP4.6NG135 E672

Engine Power

133kW

Max Torque

620Nm

Rated Speed

2250rpm

Displacement

4.58L

Fuel Tank Capacity

160L

Hydraulic Oil Capacity

136L

Transmission Type

Fixed shaft power shift

Number Of Gears (f/r)

F4/R2

Max Travel Speed (f)

41km/h

Max Travel Speed (r)

32km/h

Service Brake Type

Air over Hydraulic Disc Brakes

Parking Brake Type

Mechanically operated disc brake

Steering Type

Load-sensing full hydraulic articulated

Steering Angle

36°

Oscillation Angle

11°

Turning Radius

6.2m

Operating Weight

11400kg

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

3600kg

Hydraulic Flow Rate

210L/min

Hydraulic Pressure

175Bar

Overall Length

7.280m

Overall Width

2.520m

Overall Height

3.340m

Ground Clearance

375mm

Max Dump Height

2.930m

Max Load Over Height

3.790m

Max Reach At Full Height

1.140m

Loader Bucket Capacity

2.2

Loader Arm Breakout Force

296kN

Front Axle Oscillation

11°

Battery Voltage

24V

Standard Tires (front/rear)

17.5-25L-3

Tata Hitachi Shinrai Prime Backhoe Loader

Tata Hitachi Shinrai Prime Backhoe Loader

Get Latest Price
Rating
4.4

Engine Brand

Tata Hitachi

Engine Model

-

Engine Power

55.4055kW

Max Torque

305Nm

Rated Speed

2200rpm

Displacement

-

Fuel Tank Capacity

129L

Hydraulic Oil Capacity

-

Transmission Type

Synchro-shuttle with solenoid control

Number Of Gears (f/r)

4F/2R

Max Travel Speed (f)

32km/h

Max Travel Speed (r)

-

Service Brake Type

Hydraulic, oil-immersed wet disc

Parking Brake Type

Hand-operated disc brake on rear axle

Steering Type

Hydraulic with inner-wheel braking

Steering Angle

-

Oscillation Angle

5°

Turning Radius

-

Operating Weight

8083kg

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

-

Hydraulic Flow Rate

113L/min

Hydraulic Pressure

245Bar

Overall Length

6.04m

Overall Width

2.354m

Overall Height

2.94m

Ground Clearance

320mm

Max Dump Height

2.69m

Max Load Over Height

3.305m

Max Reach At Full Height

1.32m

Loader Bucket Capacity

1.1

Loader Arm Breakout Force

5488kN

Front Axle Oscillation

5°

Battery Voltage

12V / 130AhV

Standard Tires (front/rear)

12.5/80-18, 16.9x28

Volvo L220H Wheel Loader

Volvo L220H Wheel Loader

Get Latest Price
Rating
4.4

Engine Brand

Volvo

Engine Model

D13F

Engine Power

375kW

Max Torque

2276Nm

Rated Speed

1300-1400rpm

Displacement

12.8L

Fuel Tank Capacity

366L

Hydraulic Oil Capacity

226L

Transmission Type

Volvo HTL 310

Number Of Gears (f/r)

-

Max Travel Speed (f)

36.5km/h

Max Travel Speed (r)

-

Service Brake Type

Wet Disc

Parking Brake Type

Wet Disc

Steering Type

Articulated

Steering Angle

37°

Oscillation Angle

15°

Turning Radius

-

Operating Weight

33.2kg

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

10080kg

Hydraulic Flow Rate

253L/min

Hydraulic Pressure

290Bar

Overall Length

9.27m

Overall Width

3.23m

Overall Height

5.33m

Ground Clearance

0.6mm

Max Dump Height

3.16m

Max Load Over Height

-

Max Reach At Full Height

-

Loader Bucket Capacity

5.2

Loader Arm Breakout Force

241.1kN

Front Axle Oscillation

15°

Battery Voltage

24V

Standard Tires (front/rear)

29.5 R25 L3

Komatsu WA470-6A Wheel Loader

Komatsu WA470-6A Wheel Loader

Get Latest Price
Rating
4.4

Engine Brand

Komatsu

Engine Model

SAA6D125E-5

Engine Power

203kW

Max Torque

-

Rated Speed

2000rpm

Displacement

11.04L

Fuel Tank Capacity

413L

Hydraulic Oil Capacity

173L

Transmission Type

Full-powershift, countershaft type

Number Of Gears (f/r)

4/4

Max Travel Speed (f)

36.2km/h

Max Travel Speed (r)

36.2km/h

Service Brake Type

Hydraulically actuated, wet disc brakes

Parking Brake Type

Wet disc brake

Steering Type

Articulated, full-hydraulic power steering

Steering Angle

35°

Oscillation Angle

26°

Turning Radius

6.63m

Operating Weight

22.96kg

Front Axle Load

-

Rear Axle Load

-

Max Lifting Capacity

-

Hydraulic Flow Rate

260L/min

Hydraulic Pressure

34.3Bar

Overall Length

8.825m

Overall Width

3.01m

Overall Height

3.5m

Ground Clearance

525mm

Max Dump Height

3.235m

Max Load Over Height

4.36m

Max Reach At Full Height

1.435m

Loader Bucket Capacity

5.2

Loader Arm Breakout Force

220kN

Front Axle Oscillation

26°

Battery Voltage

-

Standard Tires (front/rear)

23.5-25 or 26.5-25 (based on config)
