Sany SR235 C10 Piling Machine

Sany Heavy Industry India Private Limited

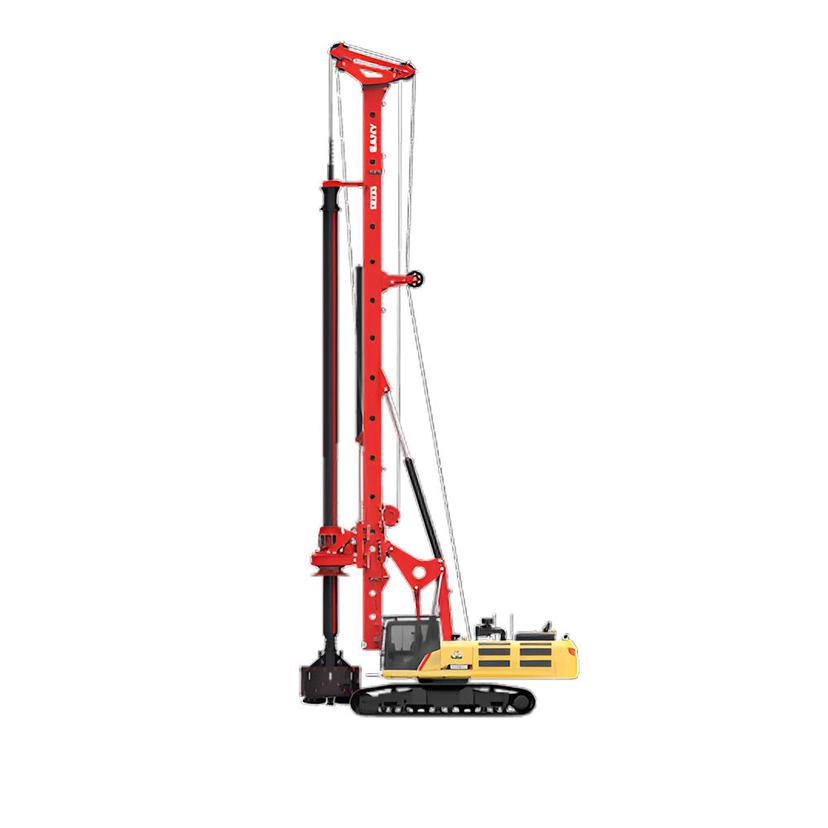

The SANY SR235 C10 rotary drilling rig is engineered for demanding construction and geotechnical applications. With a maximum drilling diameter of 2.0 meters and a depth capacity of up to 68 meters, it excels in large-scale foundation projects and deep borehole drilling. Its high-efficiency rotary drive ensures smooth and continuous operation, crucial for high-rise building foundations and extensive infrastructure work. The rig offers both friction Kelly and interlocking Kelly options, made from high-strength steel for enhanced durability. Popular across major projects in India, the SR235 C10 is versatile, making it ideal for foundation construction, geotechnical investigations, and mining operations. Its robust performance and reliable engineering ensure effective and efficient execution of complex drilling tasks.

Product Description

The SANY SR235 C10 rotary drilling rig is engineered for demanding construction and geotechnical app...

Sany SR235 C10 Piling Machine Comparison with Similar Piling Rig

Sany SR235 C10 Piling Machine

Sany SR235 C10 Piling Machine

Get Latest Price
Rating
4.4

Engine Brand

ISUZU

Engine Model

6UZ1

Engine Power

257kW

Rated Speed

2000rpm

Emission Standard

COMⅢ

Engine Displacement

9.84L

Max Output Torque

235kN·m

Rotation Speed Range

5~27rpm

High Speed Throwing Soil

-

Max. Drilling Diameter

2000mm

Max. Drilling Depth (interlocking Kelly)

54m

Max. Drilling Depth (friction Kelly)

68m

Crowd Force (push)

210kN

Crowd Force (pull)

270kN

Stroke Length

5000mm

Max. Lifting Capacity

80kN

Max. Line Speed

70m/min

Wire Rope Diameter

20mm

Forward Tilt

5°

Backward Tilt

90°

Lateral Tilt

±3°

Track Shoe Width

800mm

Chassis Length

7265mm

Crawler Extension Width

4500mm

Swing Radius

4360mm

Overall Height

22870mm

Transport Height

3660mm

Transport Width

3540mm

Operating Weight

81Ton

Max. Traction Force

-

Max. Travel Speed

-

Max. Gradeability

-

Friction Kelly Bar

Φ445×5×15mm

Interlocking Kelly Bar

Φ445×4×15mm
