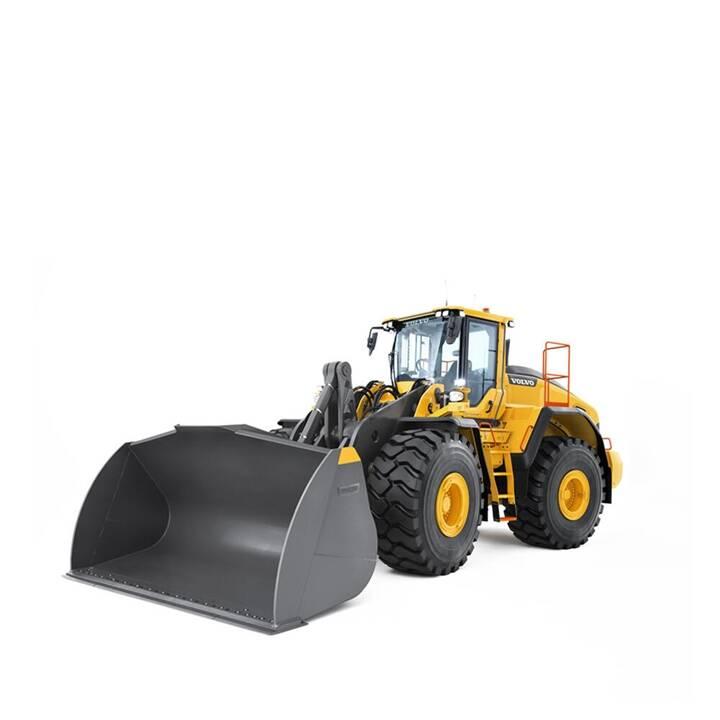

Volvo L180H Wheel Loader
Volvo Construction Equipment
Gujarat
The Volvo L180H Wheel Loader is engineered to enhance productivity and efficiency across various applications. Featuring the advanced OptiShift technology, it reduces fuel consumption by up to 18%, helping operators achieve more with less. With a robust static tipping load of up to 18,900 kg and a powerful breakout force of 236 kN, the L180H excels in handling heavy materials effortlessly. Its adaptable bucket capacity, ranging from 3.7 to 16 m³, ensures versatility in any operation. Powered by the D13F engine, delivering 251 kW at 1,300-1,400 rpm, the L180H combines strength and efficiency. Weighing between 27,000 to 28,400 kg, this machine is built for tough tasks, making it an ideal choice for operators seeking reliability and performance on the job site.
Volvo L180H Wheel Loader
Volvo Construction Equipment
Gujarat
The Volvo L180H Wheel Loader is engineered to enhance productivity and efficiency across various applications. Featuring the advanced OptiShift technology, it reduces fuel consumption by up to 18%, helping operators achieve more with less. With a robust static tipping load of up to 18,900 kg and a powerful breakout force of 236 kN, the L180H excels in handling heavy materials effortlessly. Its adaptable bucket capacity, ranging from 3.7 to 16 m³, ensures versatility in any operation. Powered by the D13F engine, delivering 251 kW at 1,300-1,400 rpm, the L180H combines strength and efficiency. Weighing between 27,000 to 28,400 kg, this machine is built for tough tasks, making it an ideal choice for operators seeking reliability and performance on the job site.
Product Description
The Volvo L180H Wheel Loader is engineered to enhance productivity and efficiency across various app...
View the full brochure
Volvo L180H Wheel Loader Comparison with Similar Wheel Loader
Volvo L180H Wheel Loader
Engine Brand
Volvo
Engine Model
D13F
Engine Power
337kW
Max Torque
2071Nm
Rated Speed
1300-1400rpm
Displacement
12.8L
Fuel Tank Capacity
366L
Hydraulic Oil Capacity
156L
Transmission Type
Volvo HTL 223
Number Of Gears (f/r)
-
Max Travel Speed (f)
38km/h
Max Travel Speed (r)
-
Service Brake Type
Wet Disc
Parking Brake Type
Dry Disc
Steering Type
Articulated
Steering Angle
37°
Oscillation Angle
15°
Turning Radius
-
Operating Weight
29.47kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
8710kg
Hydraulic Flow Rate
217L/min
Hydraulic Pressure
290Bar
Overall Length
8.9m
Overall Width
3.04m
Overall Height
5.29m
Ground Clearance
0.61mm
Max Dump Height
3.17m
Max Load Over Height
-
Max Reach At Full Height
-
Loader Bucket Capacity
4.4m³
Loader Arm Breakout Force
236.1kN
Front Axle Oscillation
15°
Battery Voltage
24V
Standard Tires (front/rear)
26.5 R25 L3
Liugong 856HE Max Electric Wheel Loader
Engine Brand
CATL
Engine Model
LFP
Engine Power
160kW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
Electric – not applicableL
Hydraulic Oil Capacity
100L
Transmission Type
Planetary, power shift
Number Of Gears (f/r)
2/1
Max Travel Speed (f)
40km/h
Max Travel Speed (r)
13km/h
Service Brake Type
Fully Hydraulic
Parking Brake Type
Hydraulic Wet Brake + Manual Handle Control
Steering Type
Articulated
Steering Angle
-
Oscillation Angle
±8°
Turning Radius
4.966m
Operating Weight
21000kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
100L/min
Hydraulic Pressure
250Bar
Overall Length
6.3m
Overall Width
2.25m
Overall Height
3.25m
Ground Clearance
350mm
Max Dump Height
3.77m
Max Load Over Height
3.55m
Max Reach At Full Height
1.05m
Loader Bucket Capacity
2.7–5.6m³
Loader Arm Breakout Force
137kN
Front Axle Oscillation
±8°
Battery Voltage
618V
Standard Tires (front/rear)
16/70-20 PR14/TT L-3
liugong 818h wheel loader
Engine Brand
Kirloskar
Engine Model
4R1040T-I (T)
Engine Power
54.8kW
Max Torque
400Nm
Rated Speed
2200rpm
Displacement
4.76L
Fuel Tank Capacity
88L
Hydraulic Oil Capacity
65L
Transmission Type
Countershaft Powershift, 3 Element Single Stage
Number Of Gears (f/r)
Forward 2 / Reverse 1
Max Travel Speed (f)
8/25km/h
Max Travel Speed (r)
8/25km/h
Service Brake Type
Air Over Hydraulic Caliper Disc Brake
Parking Brake Type
Mechanical Actuation
Steering Type
Articulated Hydrostatic Steering
Steering Angle
± 35°°
Oscillation Angle
± 10°°
Turning Radius
R1:5.28 R2:4.63 m
Operating Weight
6400kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
148Bar
Overall Length
5.96m
Overall Width
2.02m
Overall Height
2.96m
Ground Clearance
285mm
Max Dump Height
2.68m
Max Load Over Height
2.94m
Max Reach At Full Height
0.92m
Loader Bucket Capacity
1.2m³
Loader Arm Breakout Force
45kN
Front Axle Oscillation
± 10°°
Battery Voltage
12V
Standard Tires (front/rear)
16/70-20 PR14
Liugong 838T MAX WHEEL LOADER
Engine Brand
Ashok Leyland
Engine Model
H6C516022
Engine Power
118kW
Max Torque
650Nm
Rated Speed
2200rpm
Displacement
-
Fuel Tank Capacity
180L
Hydraulic Oil Capacity
104L
Transmission Type
Powershift
Number Of Gears (f/r)
2 / 1
Max Travel Speed (f)
17/40km/h
Max Travel Speed (r)
17km/h
Service Brake Type
Air Over Hydraulic Drum Brake
Parking Brake Type
Mechanical Actuation
Steering Type
Articulated
Steering Angle
38°
Oscillation Angle
11°
Turning Radius
5.05m
Operating Weight
12324kg
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure
210Bar
Overall Length
7.41m
Overall Width
2.46m
Overall Height
3.32m
Ground Clearance
380mm
Max Dump Height
2.95m
Max Load Over Height
3.39m
Max Reach At Full Height
1.15m
Loader Bucket Capacity
2.4m³
Loader Arm Breakout Force
102kN
Front Axle Oscillation
11°
Battery Voltage
24V
Standard Tires (front/rear)
17.5–25 PR16
LIUGONG 838TE WHEEL LOADERS
Engine Brand
Electric (Battery Powered)
Engine Model
-
Engine Power
Peak Power Drive Motor: 120 kW Peak Power Hydraulic Motor: 95 kWkW
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Oil Capacity
130L
Transmission Type
Planetary electronic control shift
Number Of Gears (f/r)
2/1
Max Travel Speed (f)
40km/h
Max Travel Speed (r)
15km/h
Service Brake Type
Full hydraulic
Parking Brake Type
Drum
Steering Type
Large displacement steering
Steering Angle
38°
Oscillation Angle
10°
Turning Radius
Bucket Carry: 6218 mm (6.21 m) Outside of Tire: 5840 mm (5.84 m)m
Operating Weight
-
Front Axle Load
-
Rear Axle Load
-
Max Lifting Capacity
-
Hydraulic Flow Rate
13625L/min
Hydraulic Pressure
210Bar
Overall Length
7.50m
Overall Width
3.2m
Overall Height
3.2m
Ground Clearance
328mm
Max Dump Height
2.95m
Max Load Over Height
3.85m
Max Reach At Full Height
1.14m
Loader Bucket Capacity
2.4m³
Loader Arm Breakout Force
125kN
Front Axle Oscillation
10°
Battery Voltage
DC 624 VV
Standard Tires (front/rear)
17.5–25 PR16 L-3 TT
