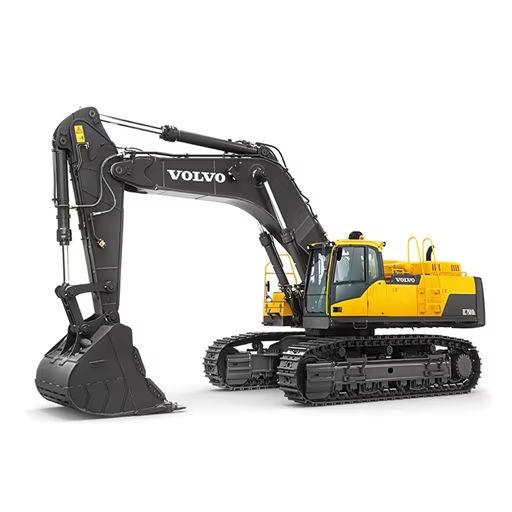

Volvo EC750D Crawler Excavator

Volvo Construction Equipment

Karnataka

The Volvo EC750D Crawler Excavator is a high-performance machine engineered to excel in demanding environments such as mining, quarrying, and heavy construction. Powered by a robust 385 kW engine, it delivers exceptional horsepower and fuel efficiency, ensuring cost-effective operations. Its electro-hydraulic system provides precise control and faster cycle times, making it ideal for time-sensitive projects. With an operating weight of up to 74,700 kg and a bucket capacity ranging from 3.3 to 5.16 m³, the EC750D handles large volumes of material with ease. It boasts a breakout force of 325 kN and a digging depth of 7,210 mm, enabling it to perform efficiently in mass excavation and earthmoving tasks. Built for durability and reliability, the EC750D is a trusted choice for maximizing productivity in the toughest conditions.

Operating Weight
72.9Ton

Product Description

The Volvo EC750D Crawler Excavator is a high-performance machine engineered to excel in demanding en...

View the full brochure

Volvo EC750D Crawler Excavator Comparison with Similar Crawler Excavator

Volvo EC750D Crawler Excavator

Volvo EC750D Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

Volvo

Engine Model

D16E

Engine Power

534HP

Max Torque

2550Nm

Rated Speed

1800rpm

Displacement

16.1L

Fuel Tank Capacity

840L

Hydraulic Flow Rate

2 x 450L/min

Hydraulic Pressure (implement Circuit)

349.76kgf/cm²

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

349.76kgf/cm²

Hydraulic Pressure (pilot Circuit)

39.76kgf/cm²

Operating Weight

72.9Ton

Ground Pressure (600mm Track)

1.07kgf/cm²

Max Digging Depth

7.21m

Max Reach At Ground

11.16m

Max Dumping Height

7m

Bucket Capacity

-

Bucket Breakout Force

33140.8kgf

Arm Crowd Force

-

Overall Length

12.2m

Overall Width

4.25m

Overall Height

4.85m

Ground Clearance

858mm

Currently Viewing
XCMG XE155U Crawler Excavator

XCMG XE155U Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

XCMG

Engine Model

Cummins B4.5

Engine Power

-

Max Torque

501.8Nm

Rated Speed

-

Displacement

4.54L

Fuel Tank Capacity

249.8L

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

-

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

17.5Ton

Ground Pressure (600mm Track)

-

Max Digging Depth

6.01m

Max Reach At Ground

-

Max Dumping Height

-

Bucket Capacity

0.64

Bucket Breakout Force

-

Arm Crowd Force

-

Overall Length

78.3m

Overall Width

26.8m

Overall Height

-

Ground Clearance

367.1mm

Zoomlion ZE385G Pro Crawler Excavator

Zoomlion ZE385G Pro Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

CUMMINS

Engine Model

QSL

Engine Power

-

Max Torque

-

Rated Speed

-

Displacement

8.9L

Fuel Tank Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

-

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

38Ton

Ground Pressure (600mm Track)

-

Max Digging Depth

7.075m

Max Reach At Ground

-

Max Dumping Height

6.885m

Bucket Capacity

2.0

Bucket Breakout Force

-

Arm Crowd Force

-

Overall Length

11.23m

Overall Width

3.19m

Overall Height

3.78m

Ground Clearance

-

Liugong 965E HD Crawler Excavator

Liugong 965E HD Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

SCANIA

Engine Model

DC13 076A

Engine Power

444HP

Max Torque

2007Nm

Rated Speed

2100rpm

Displacement

12.7L

Fuel Tank Capacity

880L

Hydraulic Flow Rate

896L/min

Hydraulic Pressure (implement Circuit)

379.3kgf/cm²

Hydraulic Pressure (swing Circuit)

397.7kgf/cm²

Hydraulic Pressure (travel Circuit)

326.3kgf/cm²

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

62.6Ton

Ground Pressure (600mm Track)

-

Max Digging Depth

6.83m

Max Reach At Ground

10.78m

Max Dumping Height

6.84m

Bucket Capacity

4.1

Bucket Breakout Force

35180.2kgf

Arm Crowd Force

30591.5kgf

Overall Length

11.87m

Overall Width

3.9m

Overall Height

3.05m

Ground Clearance

786mm

Sany SY210 SPARC + Crawler Excavator

Sany SY210 SPARC + Crawler Excavator

Get Latest Price
Rating
4.4

Engine Brand

-

Engine Model

-

Engine Power

-

Max Torque

-

Rated Speed

-

Displacement

-

Fuel Tank Capacity

-

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

-

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Operating Weight

-

Ground Pressure (600mm Track)

-

Max Digging Depth

-

Max Reach At Ground

-

Max Dumping Height

-

Bucket Capacity

-

Bucket Breakout Force

-

Arm Crowd Force

-

Overall Length

-

Overall Width

-

Overall Height

-

Ground Clearance

-
