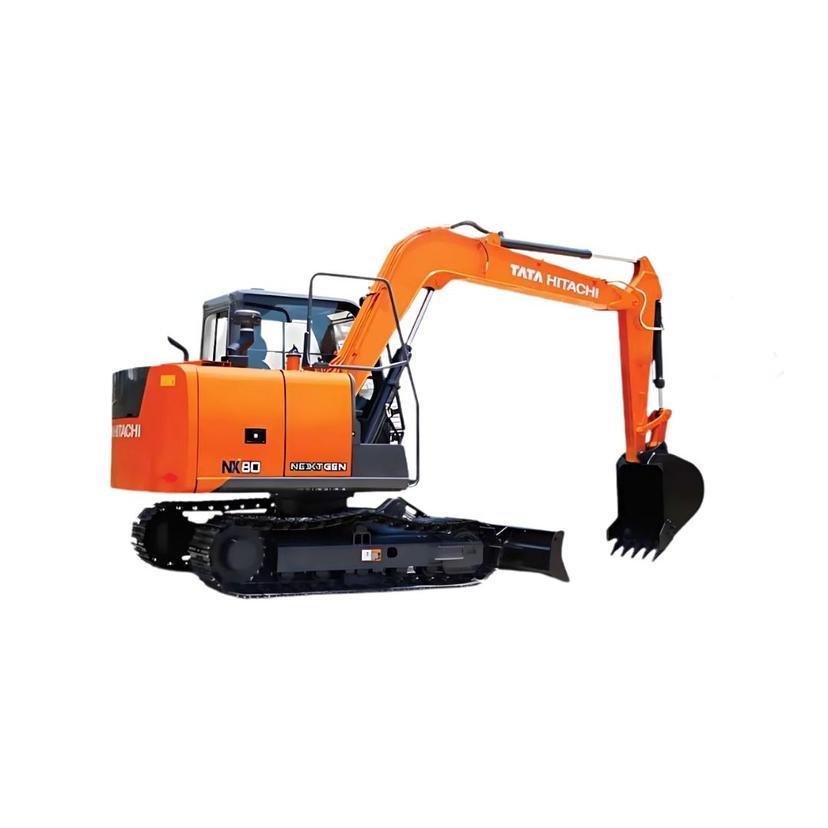

Tata Hitachi NX80 NEXTGEN Mini Excavator
Tata Hitachi Construction Machinery Company Private Ltd
Delhi
The Tata Hitachi NX80 NEXTGEN Mini Excavator is a robust and efficient machine designed for urban construction, landscaping, and utility work. Powered by a reliable Yanmar 4TNV88 engine, it delivers a gross power of 49 PS at 2100 rpm and a maximum torque of 214 Nm at 1260 rpm. Its advanced hydraulic system features dual variable displacement axial piston pumps with a flow rate of 60 lpm, ensuring smooth and precise operations. With a bucket digging force of 5600 kgf and an arm crowd force of 3900 kgf, it handles tough excavation tasks effortlessly. The compact design, 5.0 km/h travel speed, and 400 mm track shoe width make it ideal for confined spaces and diverse terrains. Enhanced with a durable build and optimized fuel efficiency, it is perfect for demanding job sites.
Tata Hitachi NX80 NEXTGEN Mini Excavator
Tata Hitachi Construction Machinery Company Private Ltd
Delhi
The Tata Hitachi NX80 NEXTGEN Mini Excavator is a robust and efficient machine designed for urban construction, landscaping, and utility work. Powered by a reliable Yanmar 4TNV88 engine, it delivers a gross power of 49 PS at 2100 rpm and a maximum torque of 214 Nm at 1260 rpm. Its advanced hydraulic system features dual variable displacement axial piston pumps with a flow rate of 60 lpm, ensuring smooth and precise operations. With a bucket digging force of 5600 kgf and an arm crowd force of 3900 kgf, it handles tough excavation tasks effortlessly. The compact design, 5.0 km/h travel speed, and 400 mm track shoe width make it ideal for confined spaces and diverse terrains. Enhanced with a durable build and optimized fuel efficiency, it is perfect for demanding job sites.
Product Description
The Tata Hitachi NX80 NEXTGEN Mini Excavator is a robust and efficient machine designed for urban co...
View the full brochure
Tata Hitachi NX80 NEXTGEN Mini Excavator Comparison with Similar Mini Excavators

Tata Hitachi NX80 NEXTGEN Mini Excavator
Hydraulic Pressure (implement Circuit)
265kgf/cm²
Hydraulic Pressure (swing Circuit)
235kgf/cm²
Hydraulic Pressure (travel Circuit)
280kgf/cm²
Hydraulic Pressure (pilot Circuit)
35kgf/cm²
Operating Weight
7.5Ton
Max Digging Depth
4.6m
Max Reach At Ground
6.6m
Max Digging Height
-
Engine Brand
Yanmar
Engine Model
4TN98S
Engine Power
48.3HP
Max Torque
214Nm
Rated Speed
2100rpm
Displacement
-
Fuel Tank Capacity
135L
Hydraulic Flow Rate
2x60L/min
Max Dumping Height
5.4m
Bucket Capacity
0.68m³
Bucket Breakout Force
-
Arm Crowd Force
3900kgf
Overall Length
6.3m
Overall Height
2.6m
Ground Clearance
385mm

Sany SY20U Mini Excavator
Hydraulic Pressure (implement Circuit)
250kgf/cm²
Hydraulic Pressure (swing Circuit)
166kgf/cm²
Hydraulic Pressure (travel Circuit)
250kgf/cm²
Hydraulic Pressure (pilot Circuit)
41kgf/cm²
Operating Weight
1.95Ton
Max Digging Depth
2.38m
Max Reach At Ground
4.01m
Max Digging Height
3.41m
Engine Brand
YANMAR
Engine Model
3TNV80F
Engine Power
19.8HP
Max Torque
67.4Nm
Rated Speed
2400rpm
Displacement
1.22L
Fuel Tank Capacity
21L
Hydraulic Flow Rate
70L/min
Max Dumping Height
2.35m
Bucket Capacity
0.05m³
Bucket Breakout Force
1692.72kgf
Arm Crowd Force
938.13kgf
Overall Length
3.515m
Overall Height
2.49m
Ground Clearance
160mm

JCB 37C Mini Excavator
Hydraulic Pressure (implement Circuit)
255kgf/cm²
Hydraulic Pressure (swing Circuit)
220kgf/cm²
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
4.05Ton
Max Digging Depth
3.34m
Max Reach At Ground
5.02m
Max Digging Height
4.73m
Engine Brand
JCB
Engine Model
Perkins 403J-17
Engine Power
25.3HP
Max Torque
91.9Nm
Rated Speed
-
Displacement
1.662L
Fuel Tank Capacity
50L
Hydraulic Flow Rate
-
Max Dumping Height
3.54m
Bucket Capacity
-
Bucket Breakout Force
3304kgf
Arm Crowd Force
2009kgf
Overall Length
4.81m
Overall Height
2.48m
Ground Clearance
275mm

Empower Mini Excavator
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Operating Weight
-
Max Digging Depth
-
Max Reach At Ground
-
Max Digging Height
-
Engine Brand
-
Engine Model
-
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
-
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Max Dumping Height
-
Bucket Capacity
-
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Height
-
Ground Clearance
-

Sany SY60C Mini Excavator
Hydraulic Pressure (implement Circuit)
253.0kgf/cm²
Hydraulic Pressure (swing Circuit)
194.76kgf/cm²
Hydraulic Pressure (travel Circuit)
252.88kgf/cm²
Hydraulic Pressure (pilot Circuit)
35.7kgf/cm²
Operating Weight
-
Max Digging Depth
3.815 m
Max Reach At Ground
6.090 m
Max Digging Height
5.690 m
Engine Brand
Isuzu
Engine Model
4JG1
Engine Power
48.9HP
Max Torque
175Nm
Rated Speed
2100rpm
Displacement
3.05L
Fuel Tank Capacity
130L
Hydraulic Flow Rate
138L/min
Max Dumping Height
3.930 m
Bucket Capacity
0.26m³
Bucket Breakout Force
4590 kgf
Arm Crowd Force
3360kgf
Overall Length
5.925m
Overall Height
2.595m
Ground Clearance
330mm
Compare Mini Excavators

Tata Hitachi NX80 NEXTGEN Mini Excavator

Sany SY20U Mini Excavator
Add any equipment
to compare

Get instant quotation on whatsapp
Connect with "Tata Hitachi Construction Machinery Company Private Ltd"
Connect with Seller Instantly
About Company
Company Name
Tata Hitachi Construction Machinery Company Private Ltd
GST Number
07AAACT9077B1ZC
Since
December 1996
Address
C-155, Pocket C, Okhla Phase I, Okhla Industrial Estate, New Delhi, Delhi 110020
Tata Hitachi Construction Machinery Company Private Limited is a leading construction equipment manufacturer in India. A joint venture between Hitachi Construction Machinery Co. Ltd. (60%) and Tata Motors Ltd. (40%), the company specializes in excavators for infrastructure and mining, along with wheeled products. With a strong focus on customer needs, Tata Hitachi provides reliable equipment and support solutions that help businesses improve efficiency and profitability. The company has built a reputation for quality, innovation, and service, making it a trusted name in the industry. Tata Hitachi continues to contribute to India’s growth by delivering durable and efficient construction machinery.
