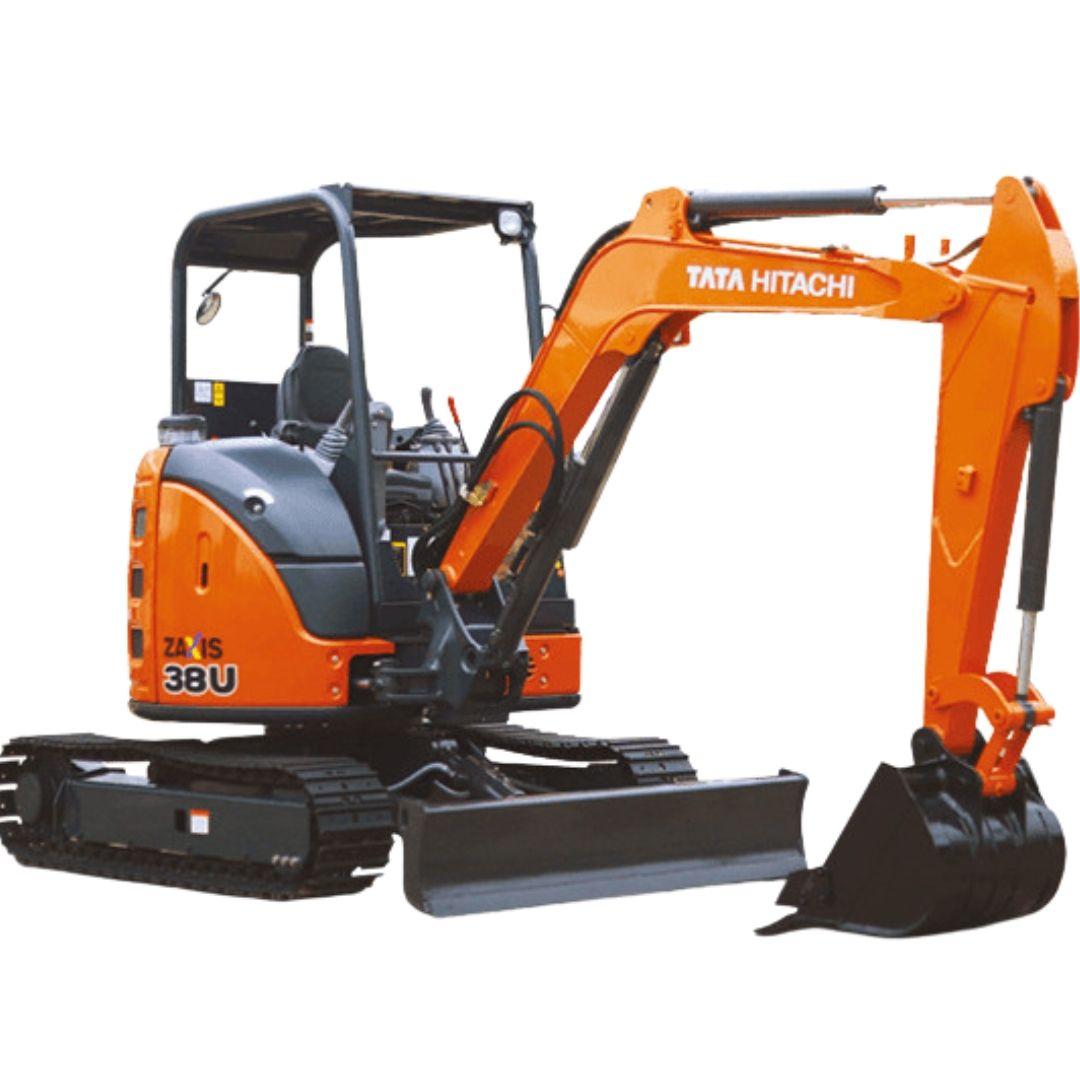

Tata Hitachi Zaxis 38U Mini Excavator

Tata Hitachi Construction Machinery Company Private Ltd

Delhi

The Tata Hitachi Zaxis 38U Mini Excavator is a powerful and compact machine designed to deliver exceptional performance in confined job sites. Equipped with a robust 22 kW (29.9 PS) Japanese engine running at 2400 rpm, it offers superior fuel efficiency and low operating costs. With an operating weight of 3,620 kg and a versatile bucket capacity ranging from 0.04 to 0.11 m³, the Zaxis 38U is perfect for a wide range of applications including urban construction, trenching, landscaping, and utility work. Its compact zero-tail swing design ensures high maneuverability even in tight spaces, making it ideal for modern jobsite challenges. Built for reliability and efficiency, this mini excavator is a smart choice for contractors and rental businesses alike.

Operating Weight
3.62Ton

Product Description

The Tata Hitachi Zaxis 38U Mini Excavator is a powerful and compact machine designed to deliver exce...

View the full brochure

Tata Hitachi Zaxis 38U Mini Excavator Comparison with Similar Mini Excavators

Tata Hitachi Zaxis 38U Mini Excavator

Tata Hitachi Zaxis 38U Mini Excavator

Get Latest Price
Rating
4.4

Fuel Tank Capacity

42L

Engine Brand

Yanmar

Engine Model

3TNV88

Engine Power

29.9HP

Max Torque

105.5Nm

Rated Speed

2400rpm

Displacement

1.642L

Hydraulic Flow Rate

110.4L/min

Hydraulic Pressure (implement Circuit)

250kgf/cm²

Hydraulic Pressure (swing Circuit)

190kgf/cm²

Hydraulic Pressure (travel Circuit)

250kgf/cm²

Hydraulic Pressure (pilot Circuit)

40kgf/cm²

Max Digging Depth

3.06m

Max Reach At Ground

5.08m

Max Digging Height

4.87m

Max Dumping Height

3.46m

Bucket Capacity

0.04 – 0.11

Bucket Breakout Force

2770kgf

Arm Crowd Force

1937kgf

Overall Length

4.64m

Overall Height

2.55m

Ground Clearance

540mm

Operating Weight

3.62Ton

Currently Viewing
Sany SY20U Mini Excavator

Sany SY20U Mini Excavator

Get Latest Price
Rating
4.4

Fuel Tank Capacity

21L

Engine Brand

YANMAR

Engine Model

3TNV80F

Engine Power

19.8HP

Max Torque

67.4Nm

Rated Speed

2400rpm

Displacement

1.22L

Hydraulic Flow Rate

70L/min

Hydraulic Pressure (implement Circuit)

250kgf/cm²

Hydraulic Pressure (swing Circuit)

166kgf/cm²

Hydraulic Pressure (travel Circuit)

250kgf/cm²

Hydraulic Pressure (pilot Circuit)

41kgf/cm²

Max Digging Depth

2.38m

Max Reach At Ground

4.01m

Max Digging Height

3.41m

Max Dumping Height

2.35m

Bucket Capacity

0.05

Bucket Breakout Force

1692.72kgf

Arm Crowd Force

938.13kgf

Overall Length

3.515m

Overall Height

2.49m

Ground Clearance

160mm

Operating Weight

1.95Ton

JCB	37C Mini Excavator

JCB 37C Mini Excavator

Get Latest Price
Rating
4.4

Fuel Tank Capacity

50L

Engine Brand

JCB

Engine Model

Perkins 403J-17

Engine Power

25.3HP

Max Torque

91.9Nm

Rated Speed

-

Displacement

1.662L

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

255kgf/cm²

Hydraulic Pressure (swing Circuit)

220kgf/cm²

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Max Digging Depth

3.34m

Max Reach At Ground

5.02m

Max Digging Height

4.73m

Max Dumping Height

3.54m

Bucket Capacity

-

Bucket Breakout Force

3304kgf

Arm Crowd Force

2009kgf

Overall Length

4.81m

Overall Height

2.48m

Ground Clearance

275mm

Operating Weight

4.05Ton

Empower Mini Excavator

Empower Mini Excavator

Get Latest Price
Rating
4.4

Fuel Tank Capacity

-

Engine Brand

-

Engine Model

-

Engine Power

-

Max Torque

-

Rated Speed

-

Displacement

-

Hydraulic Flow Rate

-

Hydraulic Pressure (implement Circuit)

-

Hydraulic Pressure (swing Circuit)

-

Hydraulic Pressure (travel Circuit)

-

Hydraulic Pressure (pilot Circuit)

-

Max Digging Depth

-

Max Reach At Ground

-

Max Digging Height

-

Max Dumping Height

-

Bucket Capacity

-

Bucket Breakout Force

-

Arm Crowd Force

-

Overall Length

-

Overall Height

-

Ground Clearance

-

Operating Weight

-

Sany SY60C Mini Excavator

Sany SY60C Mini Excavator

Get Latest Price
Rating
4.4

Fuel Tank Capacity

130L

Engine Brand

Isuzu

Engine Model

4JG1

Engine Power

48.9HP

Max Torque

175Nm

Rated Speed

2100rpm

Displacement

3.05L

Hydraulic Flow Rate

138L/min

Hydraulic Pressure (implement Circuit)

253.0kgf/cm²

Hydraulic Pressure (swing Circuit)

194.76kgf/cm²

Hydraulic Pressure (travel Circuit)

252.88kgf/cm²

Hydraulic Pressure (pilot Circuit)

35.7kgf/cm²

Max Digging Depth

3.815 m

Max Reach At Ground

6.090 m

Max Digging Height

5.690 m

Max Dumping Height

3.930 m

Bucket Capacity

0.26

Bucket Breakout Force

4590 kgf

Arm Crowd Force

3360kgf

Overall Length

5.925m

Overall Height

2.595m

Ground Clearance

330mm

Operating Weight

-
