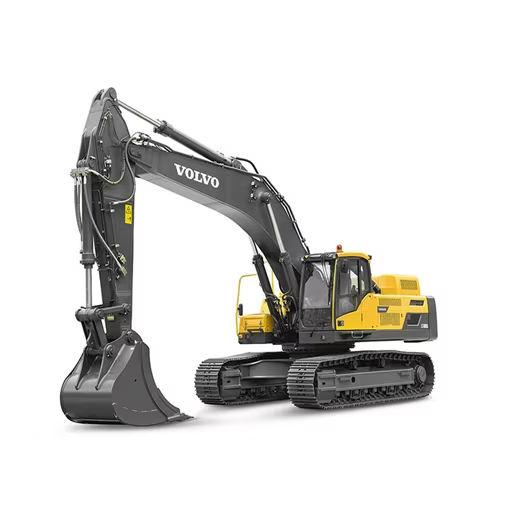

Volvo EC480D Crawler Excavator
The Volvo EC480D Crawler Excavator is a high-performance machine designed to deliver unmatched productivity in heavy-duty applications such as earthmoving, quarrying, and infrastructure development. Powered by a 265 kW engine and featuring advanced hydraulics, the EC480D offers shorter cycle times and enhanced digging force, ensuring efficient operations. With an operating weight of up to 53,100 kg, a bucket capacity of 1.77 to 3.8 m³, and a digging depth of 9,170 mm, it excels in large-scale excavation and mining tasks. Its breakout force of up to 251 kN and lifting capacity of 15,670 kg make it suitable for handling tough materials with ease. Built for durability and reliability, the EC480D combines superior performance with precise control, helping you sustain optimum power and productivity every day.
Volvo EC480D Crawler Excavator
The Volvo EC480D Crawler Excavator is a high-performance machine designed to deliver unmatched productivity in heavy-duty applications such as earthmoving, quarrying, and infrastructure development. Powered by a 265 kW engine and featuring advanced hydraulics, the EC480D offers shorter cycle times and enhanced digging force, ensuring efficient operations. With an operating weight of up to 53,100 kg, a bucket capacity of 1.77 to 3.8 m³, and a digging depth of 9,170 mm, it excels in large-scale excavation and mining tasks. Its breakout force of up to 251 kN and lifting capacity of 15,670 kg make it suitable for handling tough materials with ease. Built for durability and reliability, the EC480D combines superior performance with precise control, helping you sustain optimum power and productivity every day.
Product Description
The Volvo EC480D Crawler Excavator is a high-performance machine designed to deliver unmatched produ...
View the full brochure
Volvo EC480D Crawler Excavator Comparison with Similar Crawler Excavator

Volvo EC480D Crawler Excavator
Fuel Tank Capacity
685L
Hydraulic Flow Rate
2 x 358L/min
Hydraulic Pressure (implement Circuit)
330.38kgf/cm²
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
330.38kgf/cm²
Hydraulic Pressure (pilot Circuit)
39.76kgf/cm²
Engine Brand
Volvo
Engine Model
D13F
Engine Power
367HP
Max Torque
1800Nm
Rated Speed
1800rpm
Displacement
12.8L
Ground Clearance
550mm
Operating Weight
38.34Ton
Ground Pressure (600mm Track)
0.7kgf/cm²
Max Digging Depth
6.58m
Max Reach At Ground
10.68m
Max Dumping Height
6.97m
Bucket Capacity
-
Bucket Breakout Force
25798.8kgf
Arm Crowd Force
-
Overall Length
11.63m
Overall Width
3.44m
Overall Height
3.77m

Zoomlion ZE960G Crawler Excavator
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Engine Brand
SCANIA
Engine Model
DC16
Engine Power
-
Max Torque
-
Rated Speed
-
Displacement
16L
Ground Clearance
-
Operating Weight
95Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
0.725m
Max Reach At Ground
-
Max Dumping Height
7.815m
Bucket Capacity
7 m³m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
13.695m
Overall Width
4.44m
Overall Height
5.445m

XCMG XE80U Crawler Excavator
Fuel Tank Capacity
-
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Engine Brand
Kubota
Engine Model
V3307CRTE5
Engine Power
-
Max Torque
9.31 Nm
Rated Speed
1500rpm
Displacement
3.3L
Ground Clearance
-
Operating Weight
9.5Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
-
Max Reach At Ground
-
Max Dumping Height
-
Bucket Capacity
0.35m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
-
Overall Width
-
Overall Height
-

Tata Hitachi EX 2600-7 Crawler Excavator
Fuel Tank Capacity
5300L
Hydraulic Flow Rate
4 x 375 L/min
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Engine Brand
Cummins
Engine Model
QSKTA50-CE (FCO, T4F/EU Stage V)
Engine Power
1500HP
Max Torque
-
Rated Speed
1800rpm
Displacement
50L
Ground Clearance
770mm
Operating Weight
257Ton
Ground Pressure (600mm Track)
1.91kgf/cm²
Max Digging Depth
8.2m
Max Reach At Ground
16m
Max Dumping Height
10.1m
Bucket Capacity
19.5m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
10.3m
Overall Width
8m
Overall Height
7.2m

XCMG XE370D Crawler Excavator
Fuel Tank Capacity
660L
Hydraulic Flow Rate
-
Hydraulic Pressure (implement Circuit)
-
Hydraulic Pressure (swing Circuit)
-
Hydraulic Pressure (travel Circuit)
-
Hydraulic Pressure (pilot Circuit)
-
Engine Brand
XCMG
Engine Model
XE370D
Engine Power
-
Max Torque
1080Nm
Rated Speed
2000rpm
Displacement
7.79L
Ground Clearance
-
Operating Weight
36.8Ton
Ground Pressure (600mm Track)
-
Max Digging Depth
10.4m
Max Reach At Ground
-
Max Dumping Height
7.2m
Bucket Capacity
1.8m³
Bucket Breakout Force
-
Arm Crowd Force
-
Overall Length
11.3m
Overall Width
3.19m
Overall Height
3.53m
